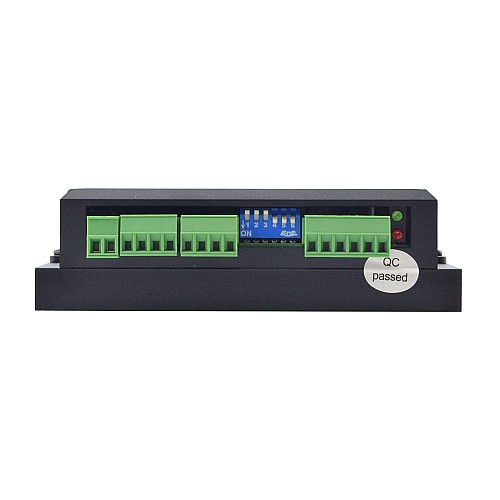

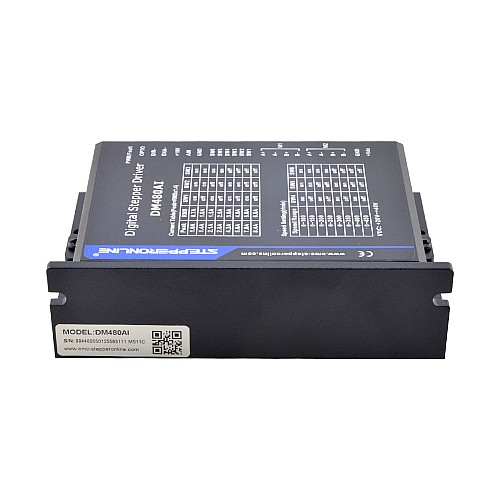

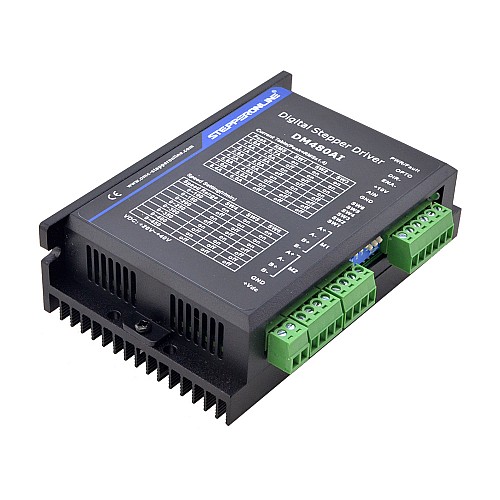

Stepper Motor Controller 2 Channels 1.0-8.4A 20-40VDC Speed Adjustable

The DM480AI has built with a pulser already, you can control two Max current 8.4A stepper motors by PLC or potentiometer at same time, even you can run two motors without a controller. Eight currents and eight speeds can be seleted. Two digital input signals control the start/stop and direction seperately. It was widly used in the application of band carrier.

Note: When connect two motors, the driver will allocate 50% current to each motors averagely, and two motors will have same movement.

Key Features

• 24VDC Singal Voltage
• Variable Speed Stepper Driver

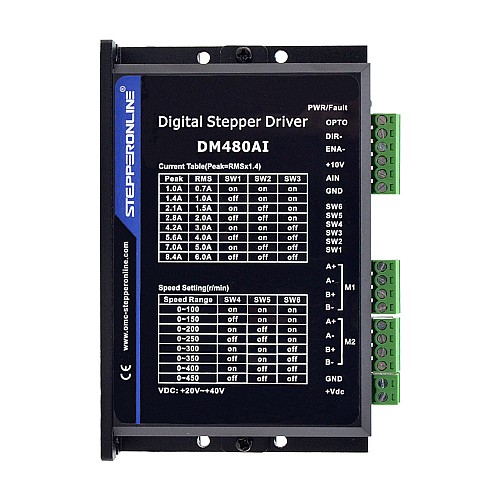

• 8 Currents and 8 Speeds Available
• Input Voltage +20~40VDC, Max current 8.4A
• ENA Controls Start/Stop, DIR Controls Direction
• Match for Nema 23, Nema 24 and Nema 34 Stepper Motors
• PLC or controller(with 0-10V analog output or separate potentiometer)

Operating Environment and other Specifications(Tj = 25℃/77℉)

• Cooling: Natural Cooling or Forced cooling
• Environment: Avoid dust, oil fog and corrosive gases
• Ambient Temperature: 0℃ － 65℃
• Humidity: 40%RH－90%RH
• Operating Temperature: -10℃ － 45℃
• Vibration: 10-55Hz / 0.15mm
• Storage Temperature: -20℃ － 65℃
• Weight: Approx.210g
