Round Pancake Nema 24 Bipolar 1.8deg 6Ncm(8.5oz.in) 1A Φ60x9.6mm 4 Wires

1 reviews - Write a review

C$34.81

5 + C$33.00

10 + C$31.38

50 + C$29.90

100 + C$28.55

In Stock: 10000
Model: 24HR04-1004S
Gross Weight: 0.15kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 234

Click country for real-time stock

Ships from

China

United States

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

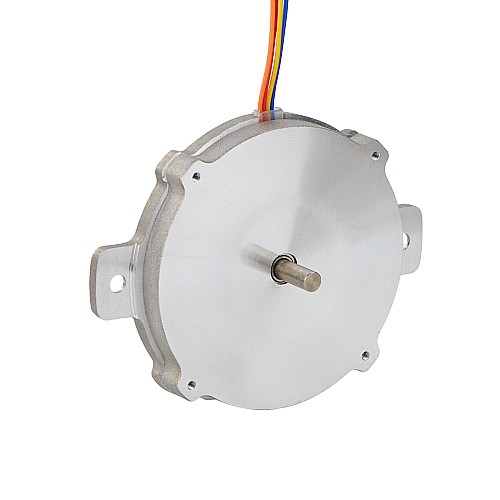

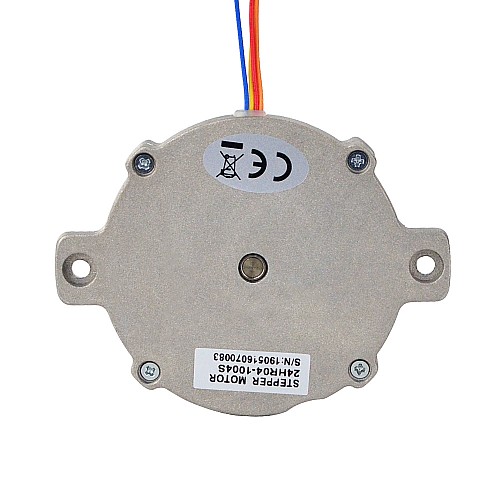

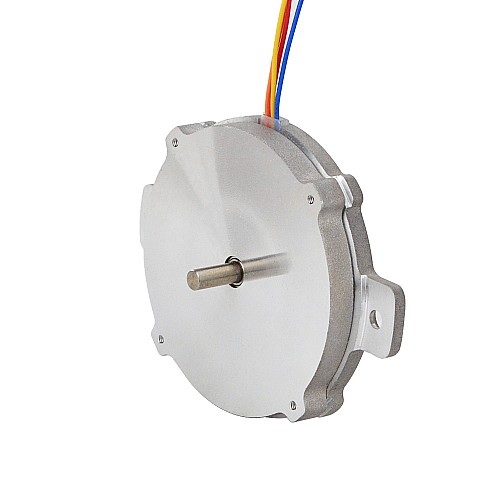

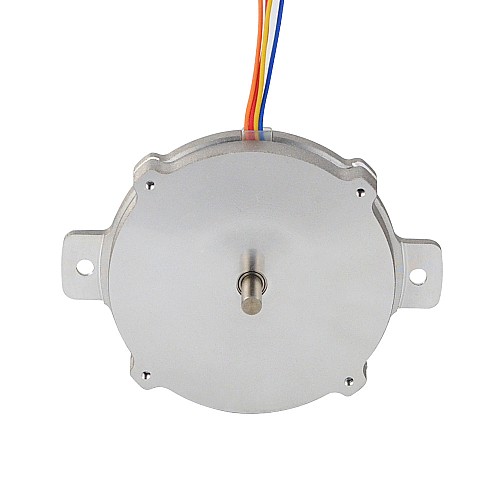

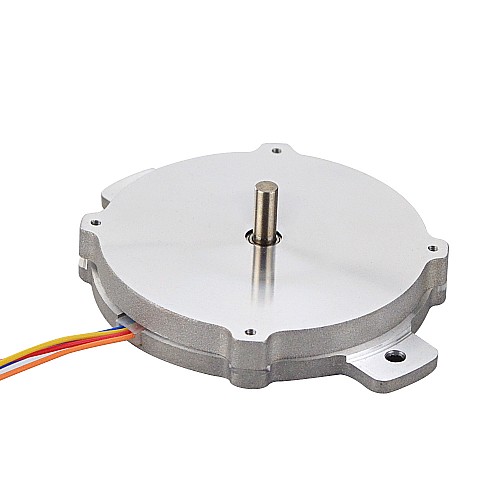

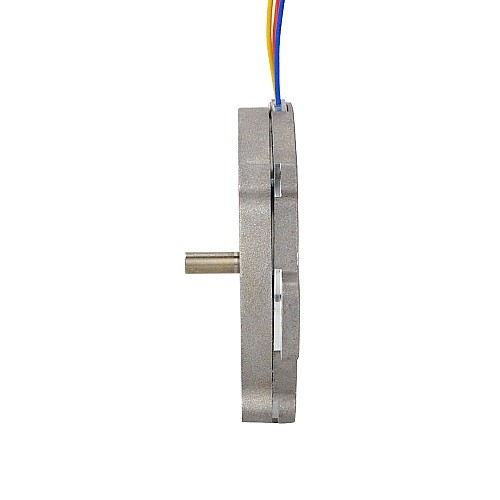

This bipolar pancake Nema 24 stepper motor with step angle 1.8deg and size Φ60x9.6mm. It has 4 wires, each phase draws 1A, with holding torque 6Ncm(8.5oz.in).

Electrical Specification

Manufacturer Part Number: 24HR04-1004S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 6Ncm(8.5oz.in)
Rated Current/phase: 1A
Phase Resistance: 3.6ohms
Inductance: 1.8mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: Φ60mm
Body Length: 9.6mm
Shaft Diameter: Φ4mm
Shaft Length: 10mm
Number of Leads: 4
Lead Length: 300mm
Weight: 79.6g

Connection

A+	A-	B+	B-
Red	Blue	Orange	Yellow

Product Type
Product Type	Pancake Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	6
Holding Torque(oz.in)	8.5
Inductance(mH)	1.8
Insulation Class	B 130C(266F)
Open-loop/Closed-loop	Open-loop
Phase Resistance(ohms)	3.6
Rated Current(A)	1
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	9.6
Frame Size(mm)	Nema 24 (60 x 60)
Inventory Method	Dedicated Inventory
Lead Length(mm)	300
No. of Lead	4
Output Shaft Type	O
Product Series	S
Shaft Diameter(mm)	4
Shaft Length(mm)	10
Single Shaft/Dual Shaft	Single Shaft
