Name: Nema 17 Unipolar 1.8deg 26Ncm(36.82oz.in) 1.2A 42x42x39mm 6 Wires
Brand: STEPPERONLINE
SKU: 17HS15-1206S
Price: 13.24 CAD
Availability: PreOrder

Nema 17 Unipolar 1.8deg 26Ncm(36.82oz.in) 1.2A 42x42x39mm 6 Wires - 17HS15-1206S | StepperOnline CA

Pre-order

17HS15-1206S

Output Shaft TypeD

No. of Lead4

Single Shaft/Dual ShaftSingle Shaft

Holding Torque(Ncm)26

Question

Ordering & ComplianceFor purchasing

Min. order: 10

Downloads

17HS15-1206S_Torque_Curve.pdfPDF · 273.71KB 17HS15-1206S_Full_Datasheet.pdfPDF · 120.6KB

Same series

Model	Output Shaft Type	No. of Lead	Single Shaft/Dual Shaft	Holding Torque(Ncm)	Price	Stock
17HS13-0956D	D	6	Dual Shaft	16	C$12.30	Backorder
17HS13-0956S	O	6	Single Shaft	16	C$12.30	In stock
17HS13-1334D	O	4	Dual Shaft	22	C$12.30	In stock
17HS13-1334S	D	4	Single Shaft	22	C$12.64	In stock
17HS13-1504H	Hollow	4	Dual Shaft	25	C$23.10	In stock
17HS15-0404S	D	4	Single Shaft	40	C$14.21	In stock
17HS15-0406S	D	6	Single Shaft	26	C$13.24	In stock
17HS15-0854S	D	4	Single Shaft	36	C$13.24	In stock
17HS15-0854S-C1	D	4	Single Shaft	36	C$15.59	Backorder
17HS15-0854S-C2	D	4	Single Shaft	36	C$10.61	In stock
17HS15-1206S	D	4	Single Shaft	26	C$13.24	Backorder
17HS15-1504S-X1	D	4	Single Shaft	45	C$13.24	In stock
17HS15-1504S-X1-USED	D	4	Single Shaft	45	C$6.63	In stock
17HS15-1504S1	D	4	Single Shaft	45	C$13.24	In stock
17HS15-1584S	O	4	Single Shaft	36	C$12.30	In stock
17HS15-1684S	D	4	Single Shaft	36	C$13.54	In stock
17HS15-1704S-SALE	D	4	Single Shaft	42	C$5.45	In stock
17HS16-2004D	D	4	Dual Shaft	45	C$13.24	In stock
17HS16-2004S-C4	D	4	Single Shaft	45	C$11.38	In stock
17HS16-2004S1	D	4	Single Shaft	45	C$13.24	In stock
17HS19-0406S	D	6	Single Shaft	32	C$15.14	In stock
17HS19-0854S	D	4	Single Shaft	44	C$15.14	In stock
17HS19-1504H	Hollow	4	Dual Shaft	36	C$25.53	In stock
17HS19-1684D	O	4	Dual Shaft	44	C$15.14	In stock
17HS19-1684S1	D	4	Single Shaft	45	C$15.14	In stock
17HS19-2004D	D	4	Dual Shaft	59	C$15.14	In stock
17HS19-2004S1	D	4	Single Shaft	59	C$13.95	In stock
17HS19-2004S2	D	4	Single Shaft	59	C$15.52	In stock
17HS19-2504S	O	4	Single Shaft	60	C$14.43	In stock
17HS24-0644S	D	4	Single Shaft	65	C$19.20	In stock

View all in category

Nema 17 Unipolar 1.8deg 26Ncm(36.82oz.in) 1.2A 42x42x39mm 6 Wires

This nema 17 stepper motor with step angle 1.8deg and size 42x42x39mm. It has 6 wires, each phase dr... Read More

0 reviews • Write a review

from

C$13.24

5 + C$12.62

10 + C$12.05

50 + C$11.53

100 + C$11.06

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Add to Wish List Compare this Product

This product has a minimum quantity of 10

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

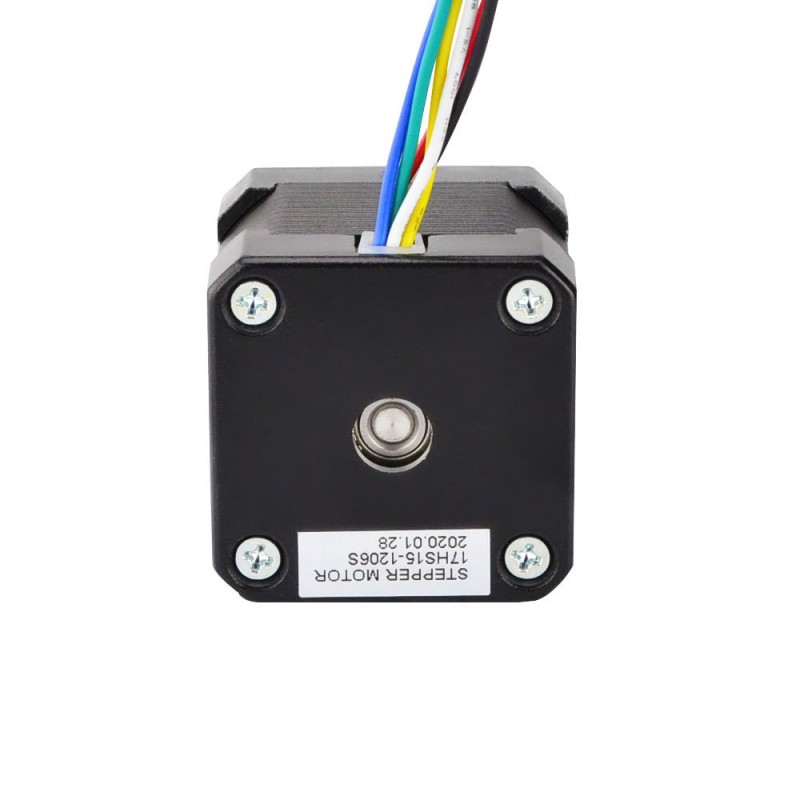

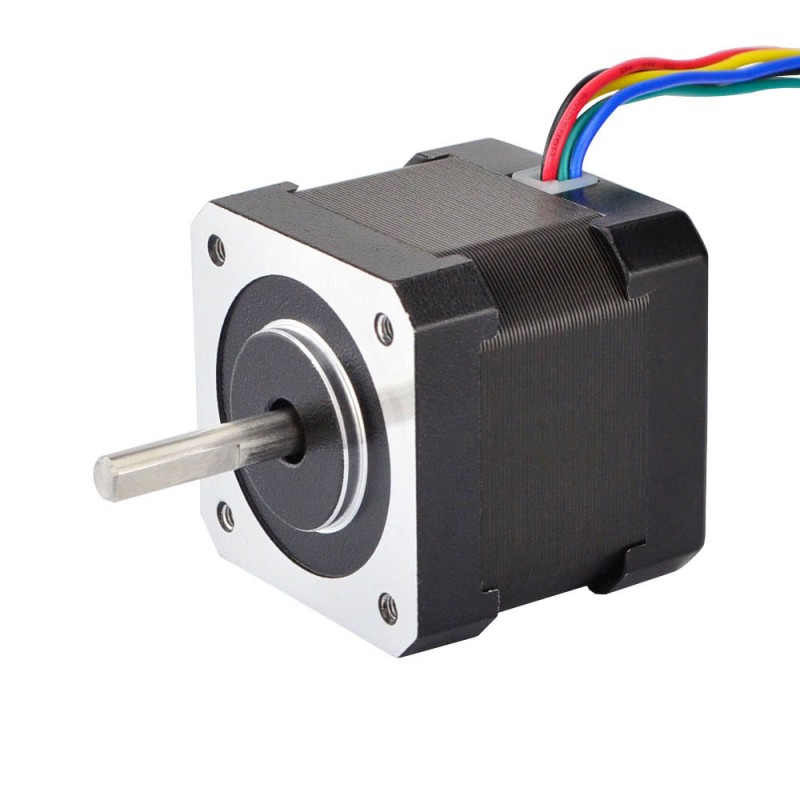

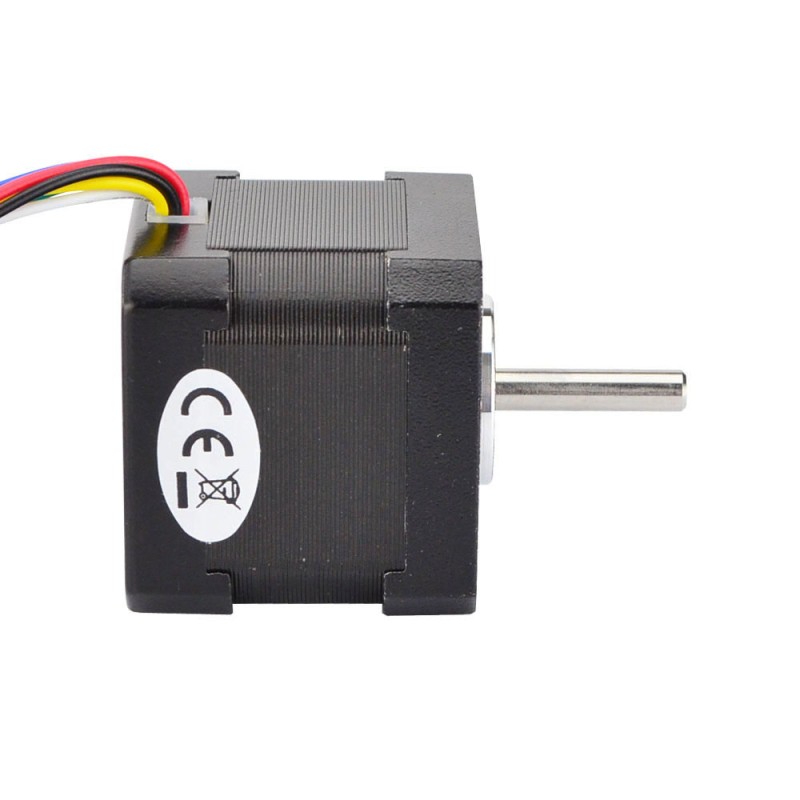

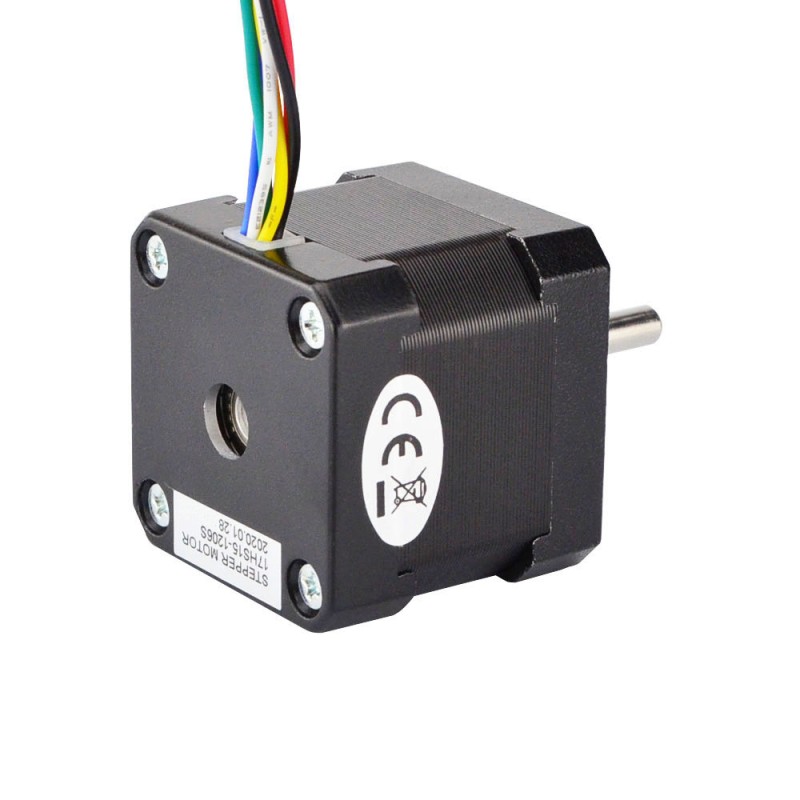

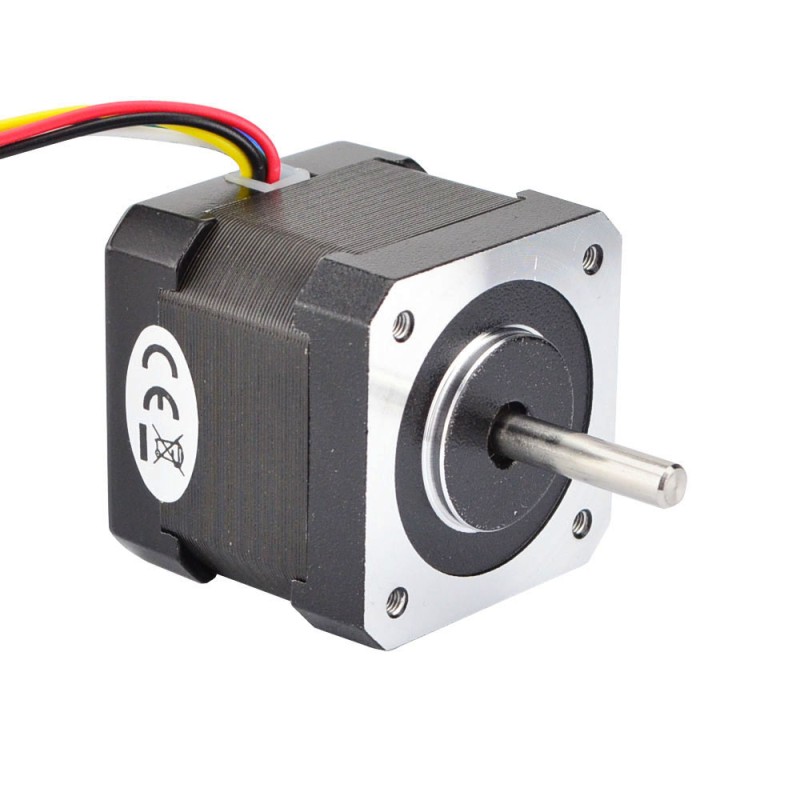

This nema 17 stepper motor with step angle 1.8deg and size 42x42x39mm. It has 6 wires, each phase draws 1.2A, with holding torque 26Ncm(36.82oz.in).

Electrical Specification

Manufacturer Part Number: 17HS15-1206S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 26Ncm(36.82oz.in)
Rated Current/phase: 1.2A
Phase Resistance: 3.3ohms
Inductance: 3.2mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 42 x 42mm
Body Length: 40mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
Number of Leads: 6
Lead Length: 500mm
Weight: 280g

Connection

A+	O+	A-	B+	O-	B-
Black	Yellow	Green	Red	White	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	26
Holding Torque(oz.in)	36.82
Inductance(mH)	3.2
Phase Resistance(ohms)	3.3
Rated Current(A)	1.2
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	39
Frame Size(mm)	Nema 17 (42 x 42)
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	5
Shaft Length(mm)	24
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	280
