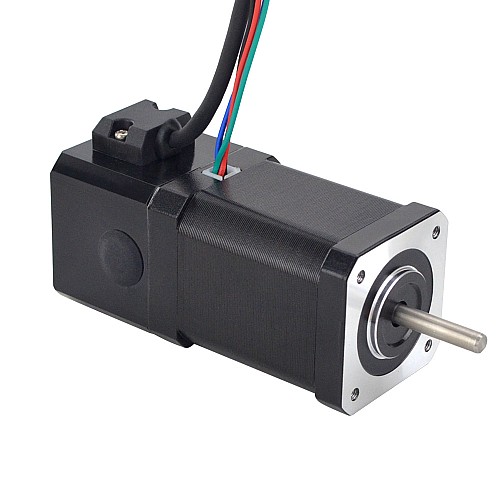

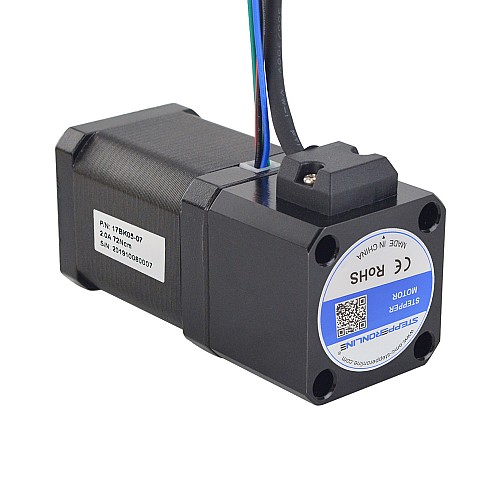

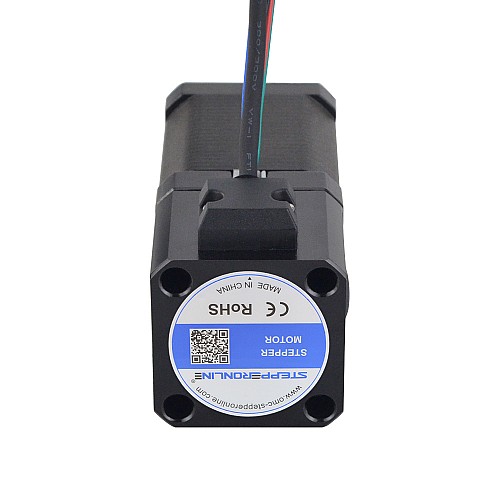

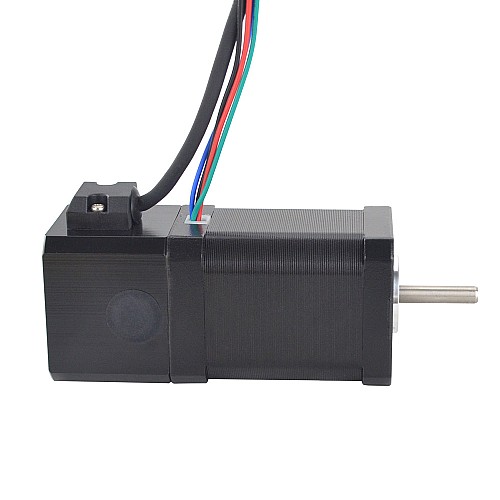

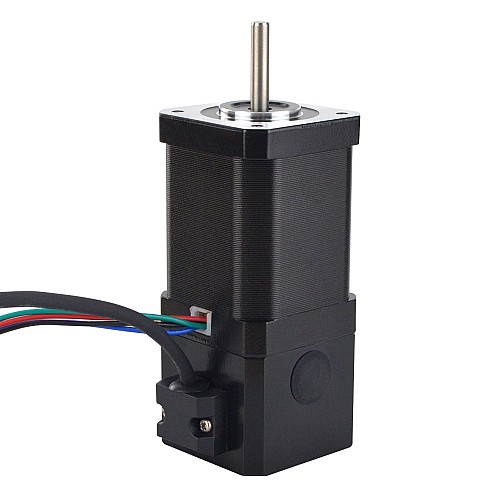

P Series Nema 17 Stepper Motor 72Ncm(101.98oz.in) with Electromagnetic Brake

0 reviews - Write a review

C$91.70

5 + C$87.39

10 + C$83.46

50 + C$79.88

100 + C$76.58

In Stock: 10000
Model: 17BK05-07
Gross Weight: 0.80kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Electrical Specification

Manufacturer Part Number: 17BK05-07
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 72Ncm(101.98oz.in)
Rated Current/phase: 2.0A
Phase Resistance: 1.75ohms
Inductance: 4.0mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 42 x 42mm
Body Length: 60mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
D-Cut Shaft Length: 15mm
Number of Leads: 4
Lead Length: 450mm
Weight: 0.5kg

Brake Connections

Red--24V+
Red--24V-
0.5Nm

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Motor w/ Encoder & Brake & Gearbox
Electrical Specification
Holding Torque(Ncm)	72
Phase Resistance(ohms)	1.75
Rated Current(A)	2.0
Stepper Motor with	Brake
Brake Specification
Brake Power(W)	5
Brake Rated Voltage(V)	24
Brake Torque(Ncm)	50
Brake Torque(oz.in)	70.8
Brake Type	Power Off Brake
Physical Specification
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
IP Rating	40
Shaft Diameter(mm)	5
Shaft Length(mm)	24
