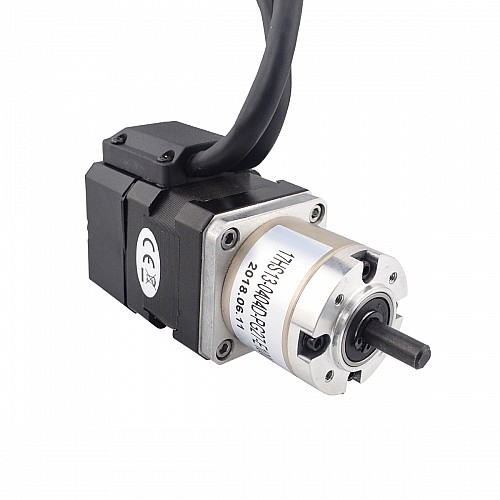

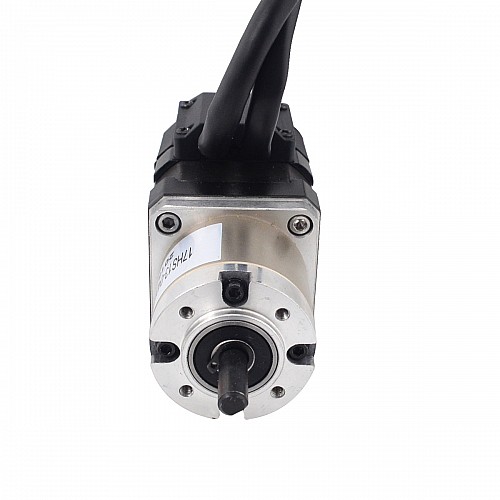

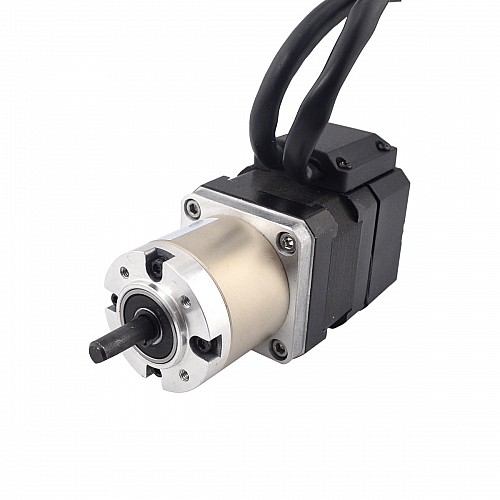

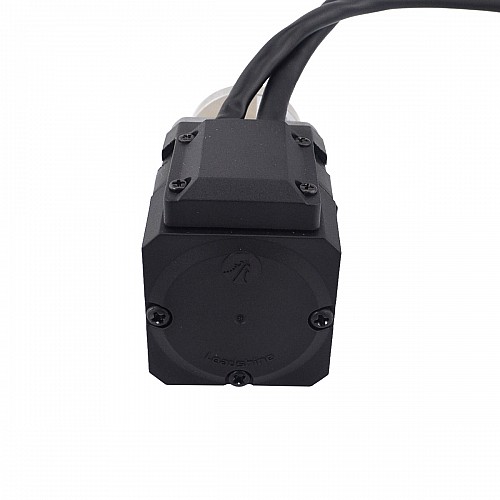

Nema 17 Closed-loop Geared Stepper L=34mm Gear Raio 27:1 Encoder 1000PPR(4000CPR)

0 reviews - Write a review

C$0.00

In Stock: 1
Model: 17HS13-0404D-PG27-E1000
Gross Weight: 0.61kg
Certificated: ISO, CE, UKCA, RoHS

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Motor Specification

Manufacturer Part Number: 17HS13-0404D-PG27-E1000
Motor Type: Bipolar Stepper
Step Angle without Gearbox: 1.8 deg
Holding Torque without Gearbox: 0.22Nm(31.16oz.in)
Rated Current/phase: 0.40A
Phase Resistance: 30ohms
Voltage: 12.00V
Inductance: 27mH ± 20%(1KHz)
Number of Leads: 4
Lead Length: 500mm

Gearbox Specifications

Gearbox Type: Planetary
Gearbox Length: 35mm
Gear Ratio: 26.85
Efficiency: 81%
Shaft Diameter: Φ6mm
Shaft Length: 18 mm
Backlash at No-load: <=1deg
Max.Permissible Torque: 3Nm(424.92oz.in)
Moment Permissible Torque: 5Nm(708.2oz.in)
Shaft Maximum Axial Load: 50N
Shaft Maximum Radial Load: 100N

Encoder Specification

Encoder Type: Incremental
Driving Voltage : 4.5V to 5.5V
Output current : 20mA
Resolution : 1000PPR(4000CPR)
Output Signal : 2 Channels
Bore Diameter : Φ5mm
Output Frequency : ≤60MHz
Running Speed : ≤3600rpm
IP Protection: IP20

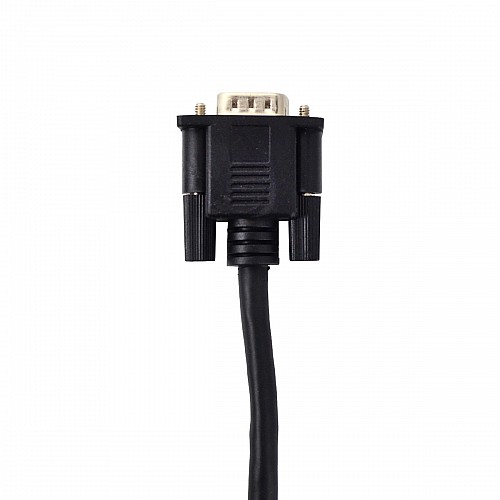

Connection

PIN	1	2	3	4
Motor	A+	A-	B+	B-

PIN	1	2	3	11	12	13
Encoder	EA+	VCC	GND	EB+	EB-	EA-

Resources

Motor Datasheet: 17HS13-0404D-PG27-E1000.pdf

Electrical Specification
Encoder Resolution	1000
Encoder Type	Incremental
Holding Torque(Ncm)	22
Inductance(mH)	27
Output Circuit Type	Differential type
Output Signal Channels	2
Phase Resistance(ohms)	30
Rated Current(A)	0.4
Physical Specification
Body Length(mm)	34
Frame Size(mm)	Nema 17 (42 x 42)
Gear Ratio(xx:1)	27 : 1
IP Rating	40
Output Shaft Type	D
Shaft Diameter(mm)	6
Shaft Length(mm)	18

File	Size
17HS13-0404D-PG27-E1000_Full_Datasheet.pdf	160.31KB	Download
17HS13-0404D-PG27-E1000.STEP	2.03MB	Download
17HS13-0404D-PG27-E1000_Torque_Curve.pdf	150.54KB	Download
