RYG Series Right Angle Planetary Gearbox Gear Ratio 50:1 Backlash 15arc-min for Nema 34 Stepper Motor

0 reviews - Write a review

C$260.64

5 + C$249.90

10 + C$240.00

50 + C$230.85

100 + C$222.38

In Stock: 10000
Model: RYG34-G50
Gross Weight: 6.27kg
Certificated: ISO, CE, REACH

Sold: 67

Click country for real-time stock

Ships from

China

United States

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

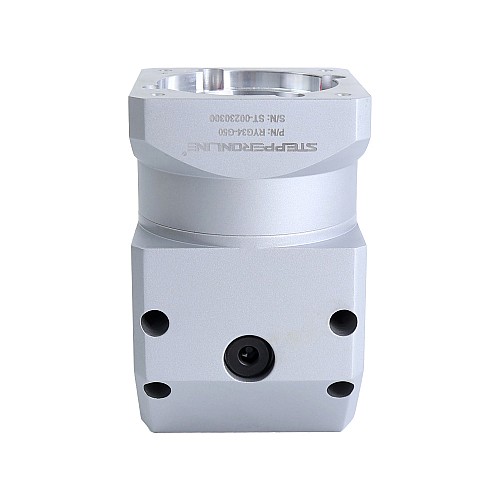

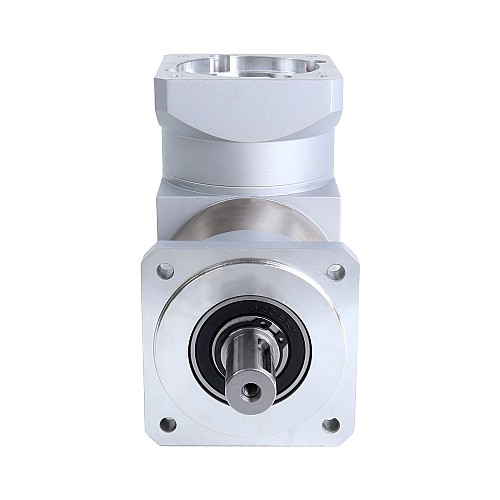

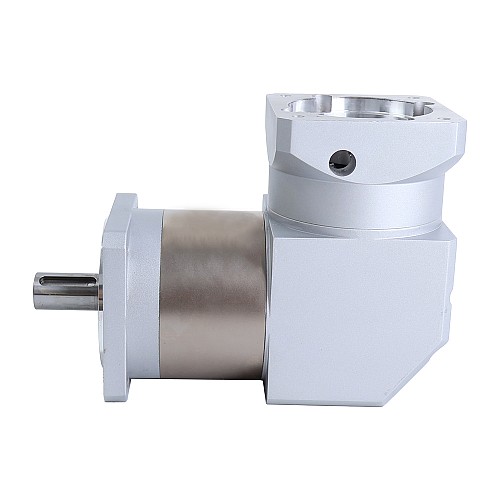

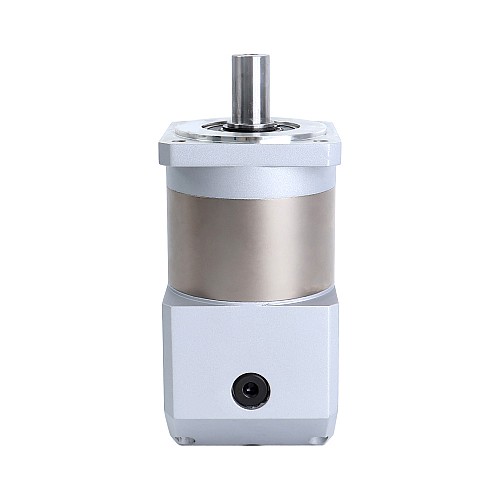

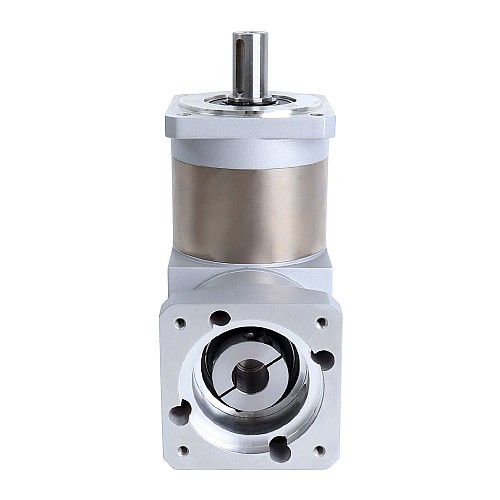

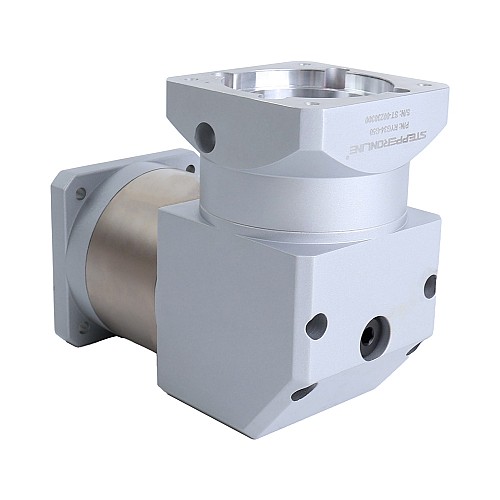

The size of this gearbox is 90 x 90mm and the input shaft diameter is 14mm. This right angle gearbox is designed for Nema 34 Stepper Motor and the high speed and low speed shaft have a 90-degree or right angle relationship.
One of the main advantages of a right angle gearbox is its compact size and ability to fit into tight spaces, making it a popular choice for applications where the driving equipment needs to be close to the driven equipment, such as on conveyors or other machinery.

Gearbox Specifications

Part Number: RYG34-G50
Gearbox Type: Right Angle Planetary
Gear Material: Alloy Steel
Gear Ratio: 50:1
Efficiency: 94%
Rotor Inertia: 0.13kg·cm²
Backlash at No-load: <=15arcmin
Max.Permissible Torque: 100Nm(885.07lb-in)
Moment Permissible Torque: 200Nm(1770.15lb-in)
Shaft Maximum Axial Load: 800N
Shaft Maximum Radial Load: 1000N
Rated Input Speed: 3000rpm
Max. Input Speed: 6000rpm
Noise: <=55dB
Waterproof Rating: IP54
Life: 20000h
Working Temperature: -20~150℃

Physical Specifications

Frame Size: 90 x 90mm
Gearbox Length: 172mm
Output Shaft Type: Key way
Output Shaft Diameter: Φ20mm
Output Shaft Length: Φ40mm
Input Shaft Diameter: Φ14mm
Input Shaft Length: 22-41mm
Weight: 5970g

Physical Specification
Backlash at No-load	<=15arcmin
Frame Size(mm)	90 x 90
Gear Material	Alloy Steel
Gear Ratio(xx:1)	50
Gearbox Length(mm)	172
Gearbox Type	Right Angle Planetary
Input Shaft Diameter(mm)	14
Input Shaft Length(mm)	22 - 41
Inventory Method	Dedicated Inventory
Matching Motor Size	Nema 34 Stepper Motor
Output Shaft Diameter(mm)	20
Output Shaft Length(mm)	40
Output Shaft Type	Keyway
Product Series	RYG
Weight(g)	5970
