S Series Nema 34 Closed Loop Stepper Motor 6.50Nm(920.48oz.in) Encoder 1000PPR(4000CPR)

S Series Nema 34 Closed Loop Stepper Motor 6.50Nm(920.48oz.in) Encoder 1000PPR(4000CPR) - 34HS39-6004D-E1K-1M5 | StepperOnline CA
S Series Nema 34 Closed Loop Stepper Motor 6.50Nm(920.48oz.in) Encoder 1000PPR(4000CPR) - 34HS39-6004D-E1K-1M5 | StepperOnline CA
S Series Nema 34 Closed Loop Stepper Motor 6.50Nm(920.48oz.in) Encoder 1000PPR(4000CPR) - 34HS39-6004D-E1K-1M5 | StepperOnline CA
S Series Nema 34 Closed Loop Stepper Motor 6.50Nm(920.48oz.in) Encoder 1000PPR(4000CPR) - 34HS39-6004D-E1K-1M5 | StepperOnline CA
S Series Nema 34 Closed Loop Stepper Motor 6.50Nm(920.48oz.in) Encoder 1000PPR(4000CPR) - 34HS39-6004D-E1K-1M5 | StepperOnline CA
S Series Nema 34 Closed Loop Stepper Motor 6.50Nm(920.48oz.in) Encoder 1000PPR(4000CPR) - 34HS39-6004D-E1K-1M5 | StepperOnline CA
S Series Nema 34 Closed Loop Stepper Motor 6.50Nm(920.48oz.in) Encoder 1000PPR(4000CPR) - 34HS39-6004D-E1K-1M5 | StepperOnline CA
S Series Nema 34 Closed Loop Stepper Motor 6.50Nm(920.48oz.in) Encoder 1000PPR(4000CPR) - 34HS39-6004D-E1K-1M5 | StepperOnline CA
S Series Nema 34 Closed Loop Stepper Motor 6.50Nm(920.48oz.in) Encoder 1000PPR(4000CPR) - 34HS39-6004D-E1K-1M5 | StepperOnline CA
S Series Nema 34 Closed Loop Stepper Motor 6.50Nm(920.48oz.in) Encoder 1000PPR(4000CPR) - 34HS39-6004D-E1K-1M5 | StepperOnline CA
S Series Nema 34 Closed Loop Stepper Motor 6.50Nm(920.48oz.in) Encoder 1000PPR(4000CPR) - 34HS39-6004D-E1K-1M5 | StepperOnline CA
S Series Nema 34 Closed Loop Stepper Motor 6.50Nm(920.48oz.in) Encoder 1000PPR(4000CPR) - 34HS39-6004D-E1K-1M5 | StepperOnline CA
S Series Nema 34 Closed Loop Stepper Motor 6.50Nm(920.48oz.in) Encoder 1000PPR(4000CPR) - 34HS39-6004D-E1K-1M5 | StepperOnline CA
S Series Nema 34 Closed Loop Stepper Motor 6.50Nm(920.48oz.in) Encoder 1000PPR(4000CPR) - 34HS39-6004D-E1K-1M5 | StepperOnline CA
34HS39-6004D-E1K-1M5
Holding Torque(Ncm)650
Holding Torque(oz.in)920.48
Phase Resistance(ohms)0.43
Inductance(mH)2.6
Question

Downloads

34HS39-6004D-E1K-1M5_Torque_Curve.pdfPDF · 174.45KB34HS39-6004D-E1K-1M5_Full_Datasheet.pdfPDF · 57.41KB34HS39-6004D-E1K-1M5.STEPSTEP · 2.45MBLog in to download
Same series
ModelHolding Torque(Ncm)Holding Torque(oz.in)Phase Resistance(ohms)Inductance(mH)PriceStock
34HS31-6004D-E1000430608.930.32.1C$59.84In stock
34HS39-6004D-E1000650920.480.362.6C$74.47In stock
34HS39-6004D-E1K-1M5650920.480.432.6C$65.80In stock
34HS46-6004D-E10009001274.50.43.6C$74.25In stock
34HS59-6004D-E100012001699.340.534.8C$90.74In stock
34HS59-6004D-E1K-1M51201699.340.594.8C$84.77In stock

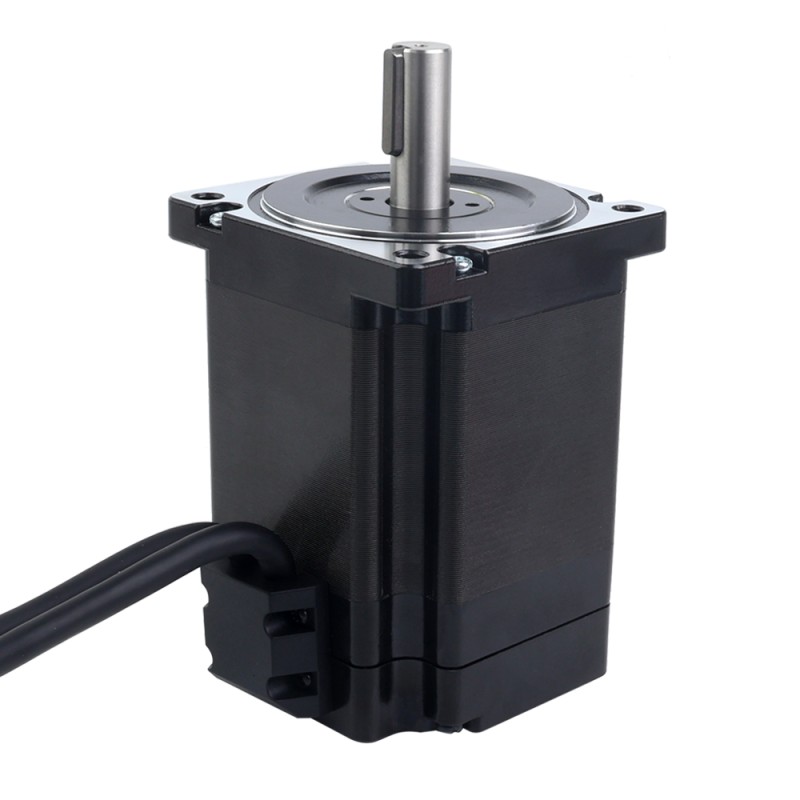

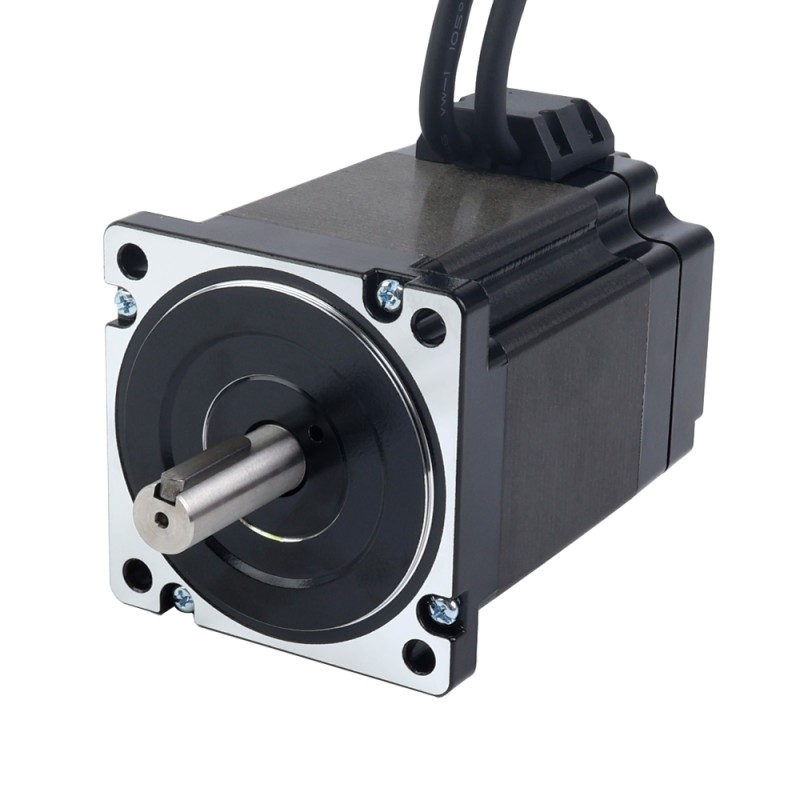

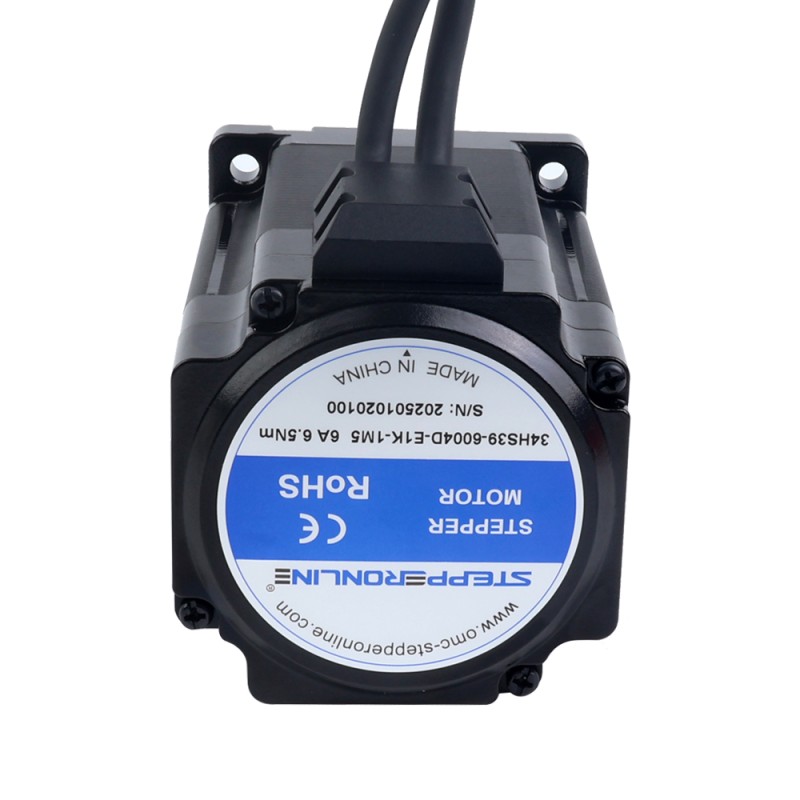

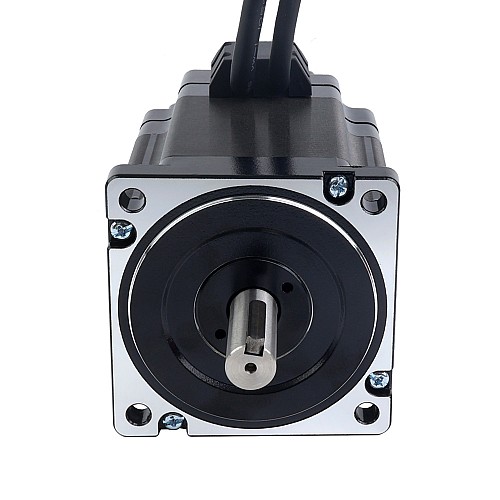

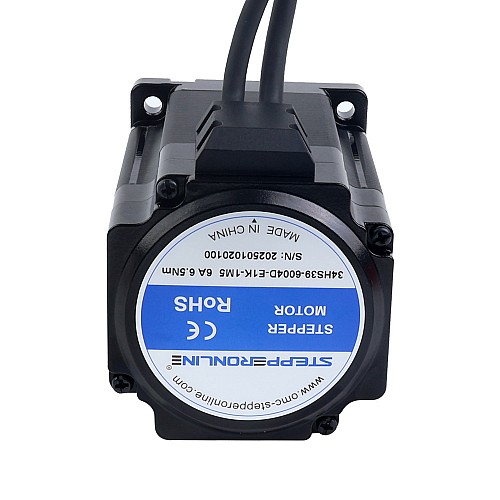

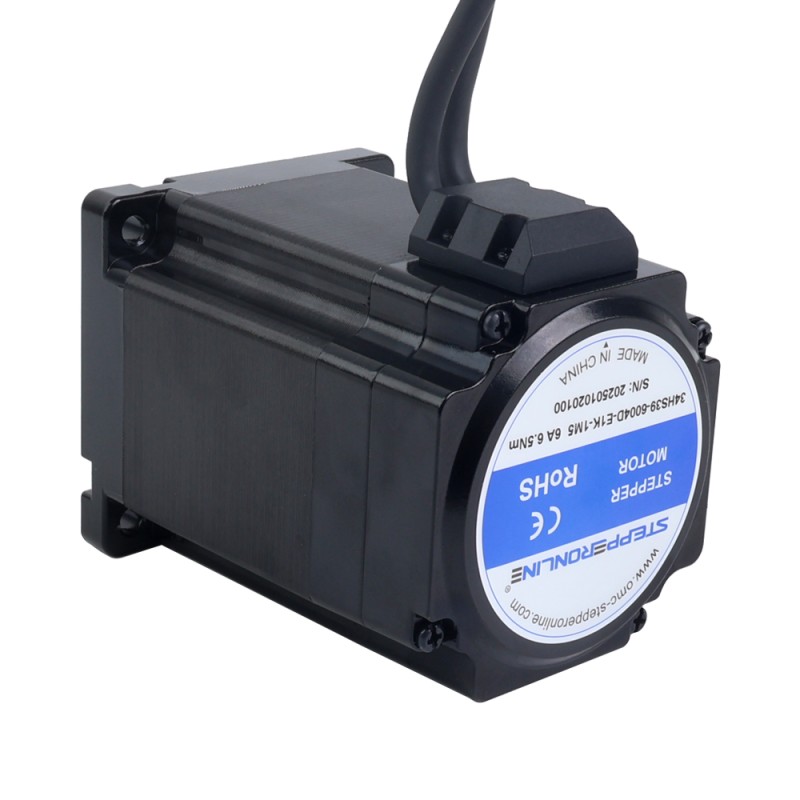

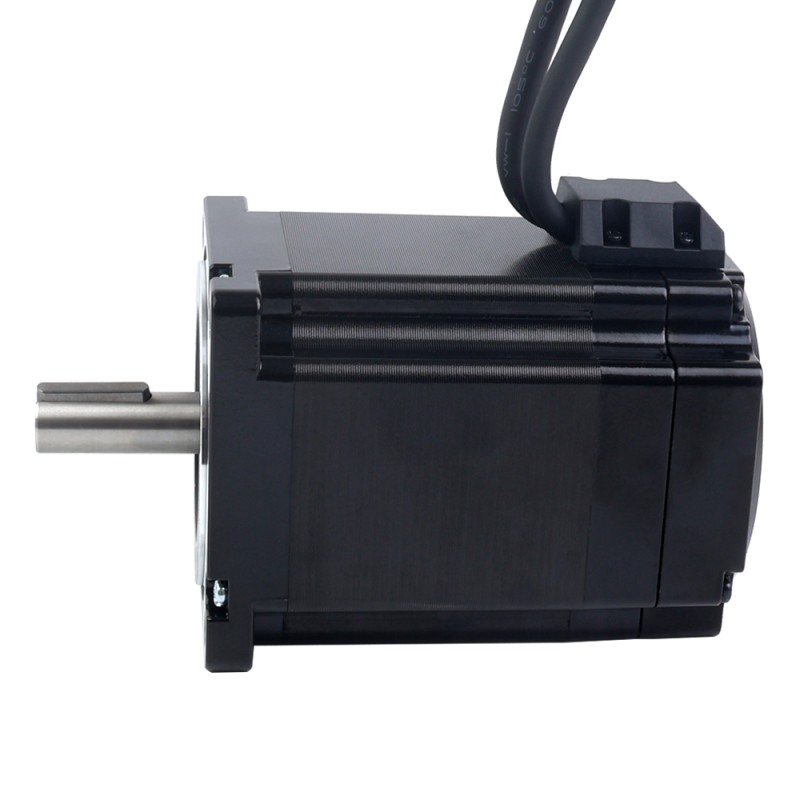

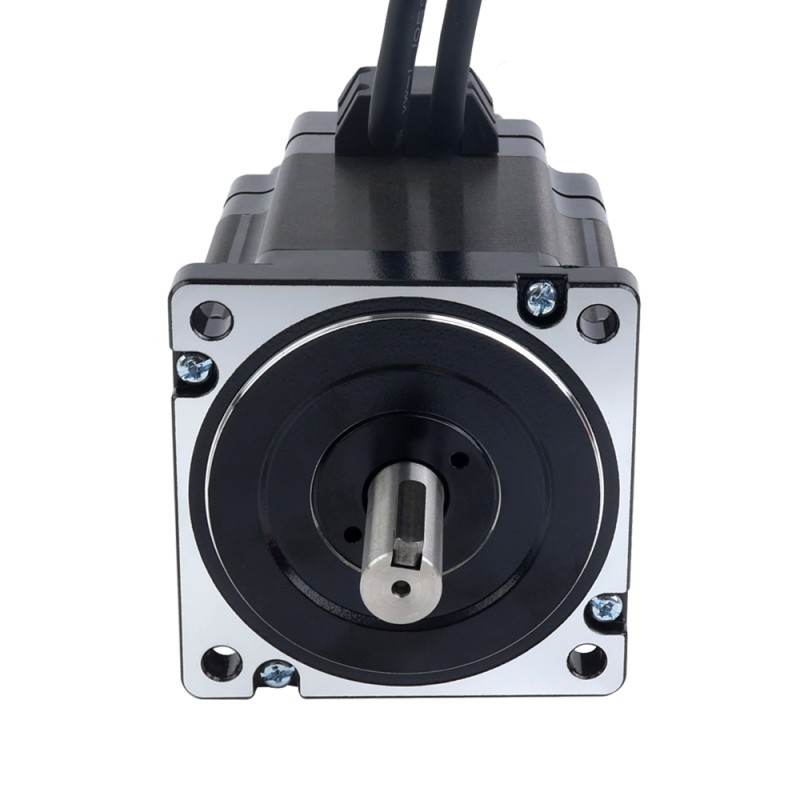

S Series Nema 34 Closed Loop Stepper Motor 6.50Nm(920.48oz.in) Encoder 1000PPR(4000CPR)
This is a Nema 34 closed-loop stepper motor with a 1000ppr(4000cpr) incremental optical encoder rate... Read More
0 reviews • Write a review
from
C$65.80
5 + C$63.29
10 + C$60.97
50 + C$58.81
100 + C$56.80

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This is a Nema 34 closed-loop stepper motor with a 1000ppr(4000cpr) incremental optical encoder rated at 6.0A, a holding torque of 6.50Nm(920.48oz.in) and 1500mm long cables. Compared to open loop stepper motors, it offers higher precision, higher torque, lower motor heating, lower power consumption and better response to external factors.

Motor Specification

  • Manufacturer Part Number: 34HS39-6004D-E1K-1M5
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8deg
  • Holding Torque: 6.50Nm(920.48oz.in)
  • Rated Current/phase: 6.0A
  • Phase Resistance: 0.43ohms ± 10%
  • Inductance: 2.6mH ± 20%(1KHz)
  • Insulation Class: B 130°C[266°F]
  • Frame Size: 86 x 86mm
  • Body Length: 120mm
  • Shaft Diameter: Φ14mm
  • Shaft Length: 37mm
  • Keyway Shaft Length: 25mm
  • Cable Length: 1500mm

Encoder Specification

  • Output Circuit Type: Differential type
  • Encoder Type: Optical Incremental
  • Encoder Resolution: 1000PPR(4000CPR)
  • Output Signal Channels: 2 channels
  • Minimum Supply Voltage: 4.5V
  • Maximum Supply Voltage: 5V
  • Output Current: 25mA
  • Output High Voltage: 4.5V
  • Output Low Voltage: 0.3V
  • Output Frequency Max: 60kHZ

Connection

A+
A-
B+
B-
Black
Green
Red
Blue

PIN
Black
Red
White
Yellow
Green
Blue
Encoder
EA+
VCC
GND
EB+
EB-
EA-
Product Type
Product Type Closed Loop Stepper Motor
Electrical Specification
Encoder Resolution 1000PPR
Encoder Type Optical Incremental
Has Torque/Thrust Curve? Yes
Holding Torque(Ncm) 650
Holding Torque(oz.in) 920.48
Inductance(mH) 2.6
Output Circuit Type Differential
Output Signal Channels 2
Phase Resistance(ohms) 0.43
Rated Current(A) 6.0
Physical Specification
Body Length(mm) 120
Frame Size(mm) Nema 34 (86 x 86)
IP Rating 40
Product Series S Series
Shaft Diameter(mm) 14
Shaft Length(mm) 37

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
TS Series 1 Axis 4.30Nm(608.93oz.in) Nema 34 Closed Loop Stepper Kit w/ Power Supply
TS Series 1 Axis 4.30Nm(608.93oz.in) Nema 34 Closed Loop Stepper Kit w/ Power Supply
Items in Kit 1 x 34HS31-6004D-E1000: 4.3Nm Closed loop stepper motor 1 x CL86T-V41: Closed Loop Stepper Driver V4.1 0~8.0A 18~80VAC/24~110VDC ..
from
C$139.98
Add to Cart
Add to Wish List Compare this Product
Quickview
TS Series 3 Axis 4.30Nm(608.93oz.in) Nema 34 Closed Loop Stepper Kit w/ Power Supply
TS Series 3 Axis 4.30Nm(608.93oz.in) Nema 34 Closed Loop Stepper Kit w/ Power Supply
This CNC kit included: 3 x 34HS31-6004D-E1000: Nema 34 Closed Loop Stepper Motor 4.3Nm/608.93oz.in with Encoder 1000PPR 3 x CL86T-V41: Closed Loop S..
from
C$413.82
Add to Cart
Add to Wish List Compare this Product
Quickview
TS Series 4 Axis 4.30Nm(608.93oz.in) Nema 34 Closed Loop Stepper Kit w/ Power Supply
TS Series 4 Axis 4.30Nm(608.93oz.in) Nema 34 Closed Loop Stepper Kit w/ Power Supply
This CNC kit included: 4 x 34HS31-6004D-E1000: Nema 34 Closed Loop Stepper Motor 4.30Nm(608.93oz.in) with Encoder 1000PPR 4 x CL86T-V41: C..
from
C$549.93
Add to Cart
Add to Wish List Compare this Product
Quickview
Closed Loop Stepper Driver V4.1 0-8.0A 18-80VAC/24-110VDC for Nema 34 Stepper Motor
Closed Loop Stepper Driver V4.1 0-8.0A 18-80VAC/24-110VDC for Nema 34 Stepper Motor
This CL86T-V41 closed-loop stepper driver offers an alternative for applications requiring high performance and high reliability when the servo w..
from
C$67.15
Add to Cart
Add to Wish List Compare this Product
Quickview

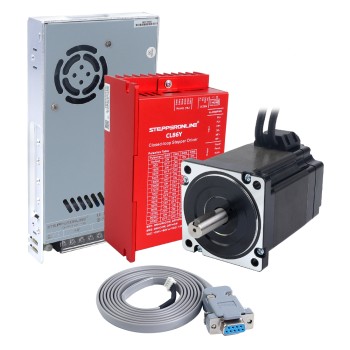

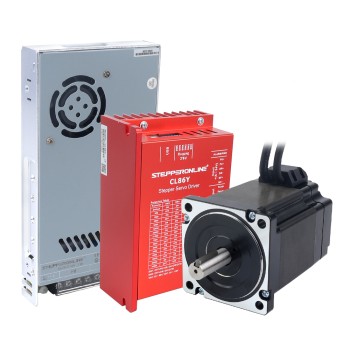

YS Series 1 Axis Closed Loop Stepper CNC Kit 6.50Nm(920.48oz.in) Nema 34 Motor w/ 1.5m Cables & Power Supply
YS Series 1 Axis Closed Loop Stepper CNC Kit 6.50Nm(920.48oz.in) Nema 34 Motor w/ 1.5m Cables & Power Supply
This CNC kit includes: 1 x 34HS39-6004D-E1K-1M5: Nema 34 Closed Loop Stepper Motor 6.50Nm(920.48oz.in) Encoder 1000PPR(4000CPR) 1 x CL86Y: Y Series ..
from
C$132.76
Add to Cart
Add to Wish List Compare this Product
Quickview
YS Series 1 Axis Closed Loop Stepper CNC Kit V2.0 6.50Nm(920.48oz.in) Nema 34 Motor w/ 1.5m Cables & Power Supply
YS Series 1 Axis Closed Loop Stepper CNC Kit V2.0 6.50Nm(920.48oz.in) Nema 34 Motor w/ 1.5m Cables & Power Supply
This CNC kit includes: 1 x 34HS39-6004D-E1K-1M5: Nema 34 Closed Loop Stepper Motor 6.50Nm(920.48oz.in) Encoder 1000PPR(4000CPR) 1 x CL86Y-V20: Y Serie..
from
C$124.38
Add to Cart
Add to Wish List Compare this Product
Quickview

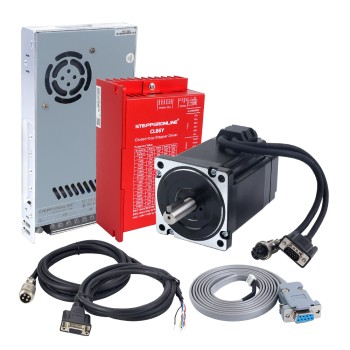

YS Series 1 Axis 6.50Nm(920.48oz.in) Nema 34 Closed Loop Stepper Kit V2.0 w/ Power Supply
