YS Series 1 Axis Closed Loop Stepper CNC Kit V2.0 6.50Nm(920.48oz.in) Nema 34 Motor w/ 1.5m Cables & Power Supply

0 reviews - Write a review

C$126.95

5 + C$123.25

10 + C$119.76

50 + C$116.46

100 + C$113.32

In Stock: 10000
Model: 1-CLYS65-1M5-V20
Gross Weight: 5.55kg
Certificated: ISO, CE

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

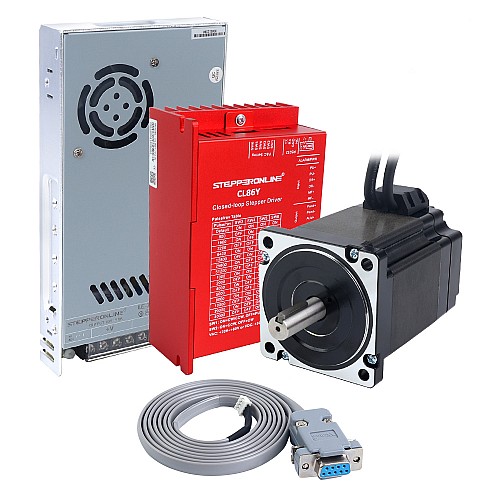

This CNC kit includes:

1 x 34HS39-6004D-E1K-1M5: Nema 34 Closed Loop Stepper Motor 6.50Nm(920.48oz.in) Encoder 1000PPR(4000CPR)

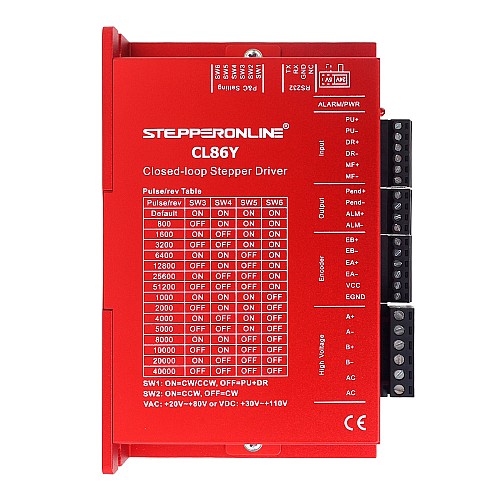

1 x CL86Y-V20: Y Series Closed Loop Stepper Driver V2.0 0-8.5A 20-80VAC/30-110VDC for Nema 34 Stepper Motor
1 x LE-350-60: 350W 60V 5.8A 115/230V Switching Power Supply
1 x CABLE-PC-2: RS232 debugging cable

Motor Specification

Part Number: 34HS39-6004D-E1K-1M5
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 6.50Nm(920.48oz.in)
Rated Current/phase: 6.0A
Phase Resistance: 0.43ohms ± 10%
Inductance: 2.6mH ± 20%(1KHz)
Insulation Class: B 130°C[266°F]
Frame Size: 86 x 86mm
Body Length: 120mm
Shaft Diameter: Φ14mm
Shaft Length: 37mm
Keyway Shaft Length: 25mm
Cable Length: 1500mm

Encoder Specification

Output Circuit Type: Differential type
Encoder Type: Optical Incremental
Encoder Resolution: 1000PPR(4000CPR)
Output Signal Channels: 2 channels
Minimum Supply Voltage: 4.5V
Maximum Supply Voltage: 5V
Output Current: 25mA
Output High Voltage: 4.5V
Output Low Voltage: 4.2-4.3V
Output Frequency Max: 60kHZ

Driver Specification

Output Peak Current: 0~8.5A(0~6RMS)
Input Voltage: 20~80VAC/30~110VDC(Typical 48/60VDC)
Logic Signal Current: 7~16mA(Typical 10mA)
Pulse Input Frequency: 0~200kHz
Pulse Width: 2.5μS
Isolation Resistance: 500MΩ

Power Supply Specification

Part Number: LE-350-60
Input Voltage: 115/230VAC±20%
Input Frequency: 47-63Hz
Input Current: 40A/230VAC
Output Voltage: 60V
Output Current: 5.8A
Rated Output Power: 350W
Leakage Current: <0.5mA/230VAC
Dimensions: 215*115*30mm(L*W*H)
Internal EMI filter
High efficiency low cost
Forced air cooling by built-in DC fan
Over current, over voltage, short circuit and overheat protections

Motor and Encoder Connection

PIN	1	2	3	4
Motor	A+	A-	B+	B-

PIN	1	2	3	11	12	13
Encoder	EA+	VCC	GND	EB+	EB-	EA-

The CL86Y-V20 improves upon the CL86Y by adding a 5V/24V selector switch and including a free RS232 debugging cable.

Common functions of the Y series drivers have been set up and can be used without debugging. If further debugging is required, please click here to purchase the required debugging cable.

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Closed Loop Stepper Kit
Electrical Specification
Encoder Resolution	1000PPR
Encoder Type	Optical Incremental
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	650
Holding Torque(oz.in)	920.48
Inductance(mH)	2.6
Input Voltage Reference(V)	24 - 80AC / 36 - 110DC
Number of Axes	1
Output Circuit Type	Differential type
Output Signal Channels	2
Phase Resistance(ohms)	0.43
Rated Current(A)	6.0
Physical Specification
Frame Size(mm)	Nema 34 (86 x 86)
Inventory Method	Dedicated Inventory
Output Shaft Type	Keyway
Power Supply	Power Supply
Product Series	YS Series
Shaft Diameter(mm)	14
Shaft Length(mm)	37

File	Size
Y_Series_Stepper_Driver_Debug_Software_7.4.zip	31.1MB	Download
CL86Y-V20.STEP	20.11MB	Download
CL86Y_V2.0_pulse_stepper_driver_manual_V1.0.pdf	858.67KB	Download
LE-350-60.STEP	2.28MB	Download
LE-350-60.pdf	229.51KB	Download
34HS39-6004D-E1K-1M5_Torque_Curve.pdf	174.45KB	Download
34HS39-6004D-E1K-1M5_Full_Datasheet.pdf	57.41KB	Download
34HS39-6004D-E1K-1M5.STEP	2.45MB	Download
