S Series Nema 34 Stepper Motor Bipolar 1.8deg 3.3Nm(467.32oz.in) 5.6A 86x86x64mm 4 Wires

0 reviews - Write a review

C$47.06

5 + C$44.84

10 + C$42.83

50 + C$40.98

100 + C$39.29

In Stock: 10000
Model: 34HS25-5604S
Gross Weight: 1.86kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 26

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

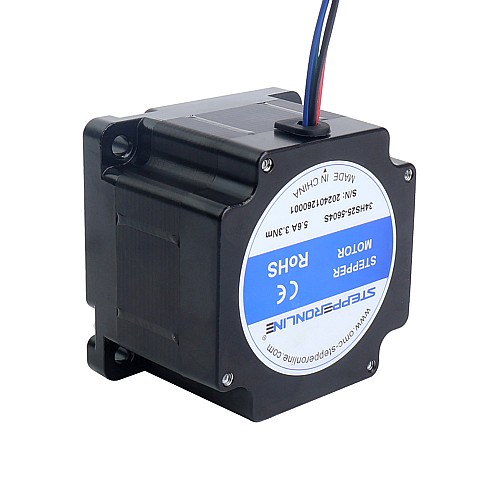

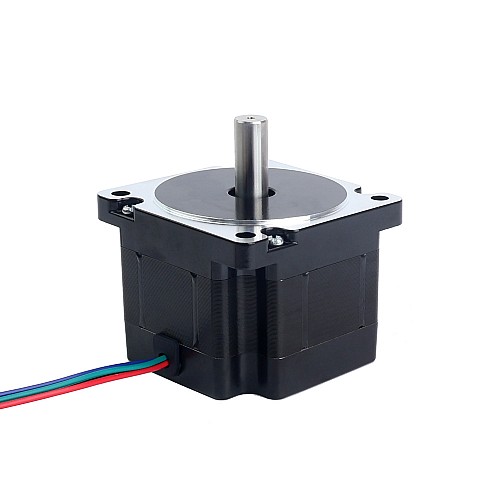

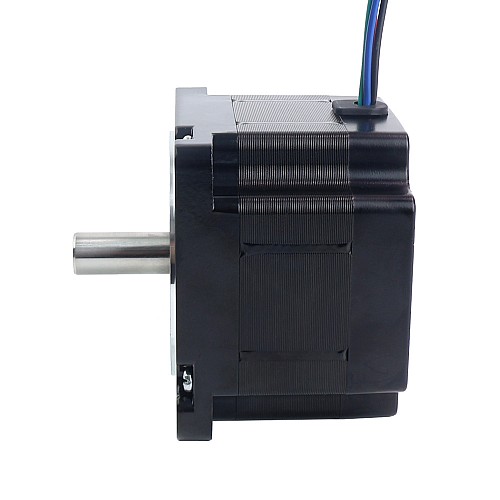

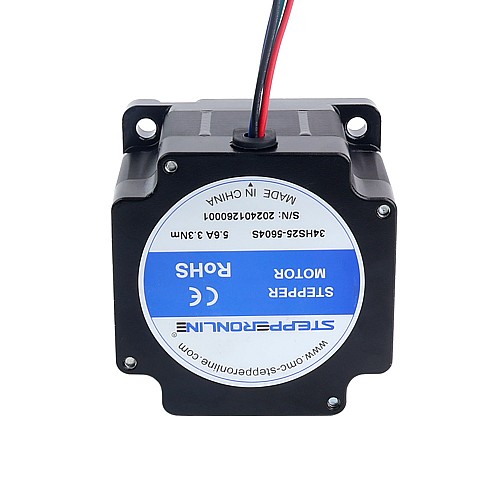

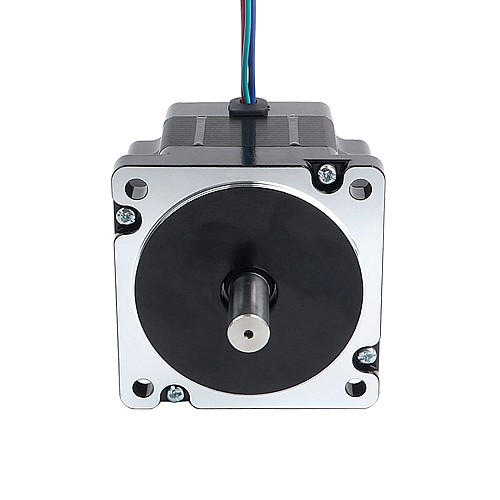

This stepper motor with a 30mm long shaft and a motor size of 86x86x64mm is the shortest Nema 34 motor we have. It has 4 wires, each phase draws 5.6A, with a holding torque of 3.3Nm(467.32oz.in).

Electrical Specification

Manufacturer Part Number: 34HS25-5604S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 3.3Nm(467.32oz.in)
Rated Current/phase: 5.6A
Phase Resistance: 0.62ohms±10%
Inductance: 3.8mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 86 x 86mm
Body Length: 64mm
Shaft Diameter: Φ12.7mm
Shaft Length: 30mm
Number of Leads: 4
Lead Length: 300mm
Weight: 1.7kg

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	330
Holding Torque(oz.in)	467.32
Inductance(mH)	3.8
Phase Resistance(ohms)	0.62
Rated Current(A)	5.6
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	64
Frame Size(mm)	Nema 34 (86 x 86)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	400
No. of Lead	4
Output Shaft Type	O
Product Series	S
Shaft Diameter(mm)	12.7
Shaft Length(mm)	30
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	1700
