E Series Nema 17 Stepper Motor 1.8deg 60Ncm(84.97oz.in) 2.1A 42x42x60mm 4 Wires
8 reviews - Write a review
C$13.28
5 + C$12.77
10 + C$12.30
50 + C$11.87
100 + C$11.46
  • In Stock: 10000
  • Model: 17HE24-2104S
  • Gross Weight: 0.55kg
  • Certificated: ISO, CE, UKCA, RoHS

Available Options

Add to Cart
Question
Add to Wish List Compare this Product
How to Choose a Shipping Warehouse？
For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

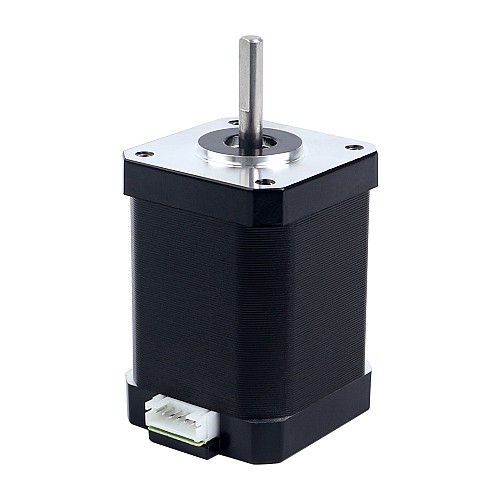

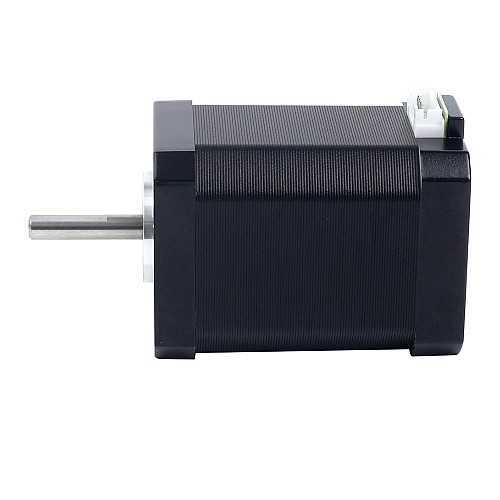

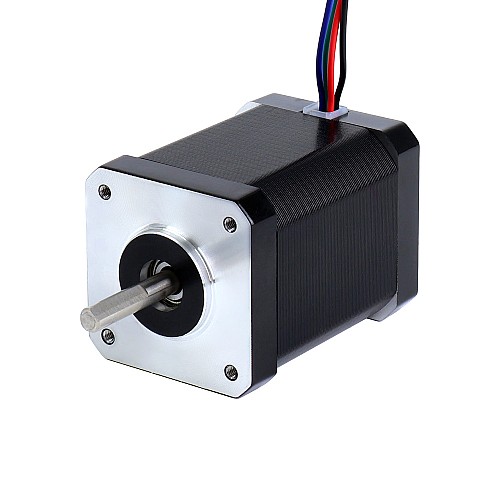

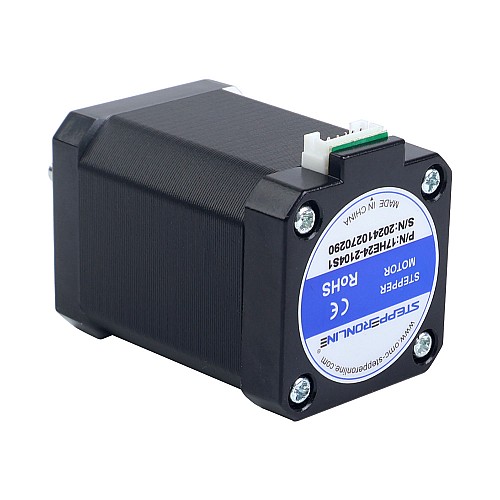

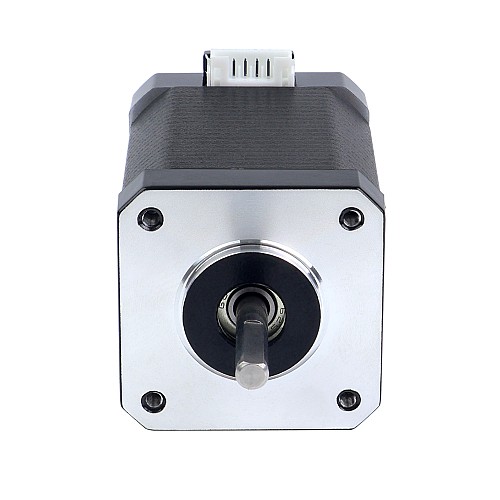

This is a economic bipolar Nema 17 stepper motor with a step angle of 1.8deg and size of 42x42x60mm. It has 4 wires, draws 2.1A per phase and has a holding torque of 60Ncm(84.97oz.in).

Electrical Specification

  • Manufacturer Part Number: 17HE24-2104S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8deg
  • Holding Torque: 60Ncm(84.97oz.in)
  • Rated Current/Phase: 2.1A
  • Phase Resistance: 1.7ohms±10%
  • Inductance: 3.1mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 60mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 24mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 476g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
This motor is now available in a pack of 3. It has a better price. For more details, please see 3-17HE24-2104S.

Product Type
Product Type Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar Bipolar
Has Torque/Thrust Curve? Yes
Holding Torque(Ncm) 60
Holding Torque(oz.in) 84.97
Inductance(mH) 3.1
Phase Resistance(ohms) 1.7
Rated Current(A) 2.1
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 60
Frame Size(mm) Nema 17 (42 x 42)
Inventory Method Dedicated Inventory
IP Rating 40
Lead Length(mm) 500
No. of Lead 4
Output Shaft Type D
Product Series E
Shaft Diameter(mm) 5
Shaft Length(mm) 24
Single Shaft/Dual Shaft Single Shaft



  • Motor Shaft
  • Cable
  • Connector
  • Encoder
  • Brake
  • Gearbox


File Size
17HE24-2104S Full_Datasheet 122.09KB Download
17HE24-2104S_Torque_Curve.pdf 282.67KB Download
