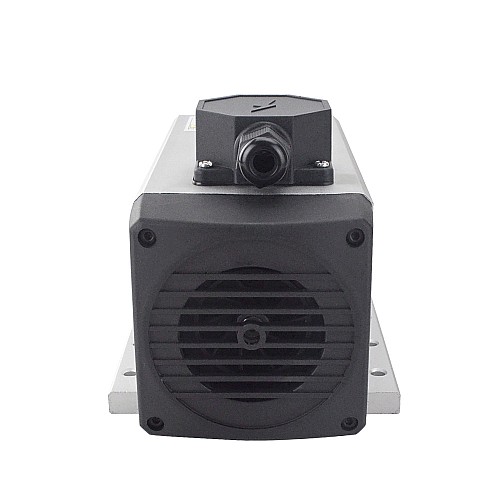

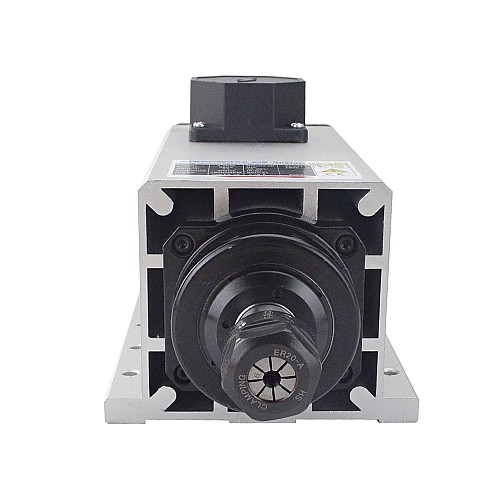

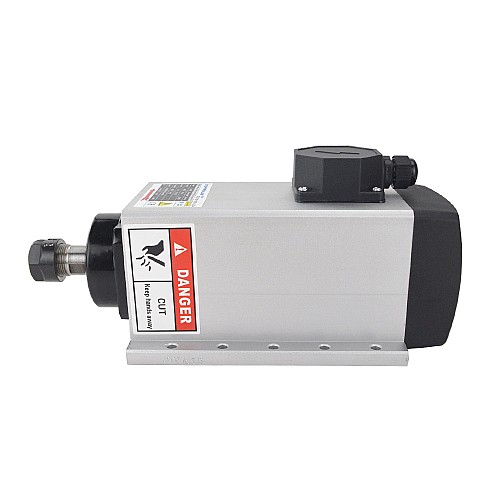

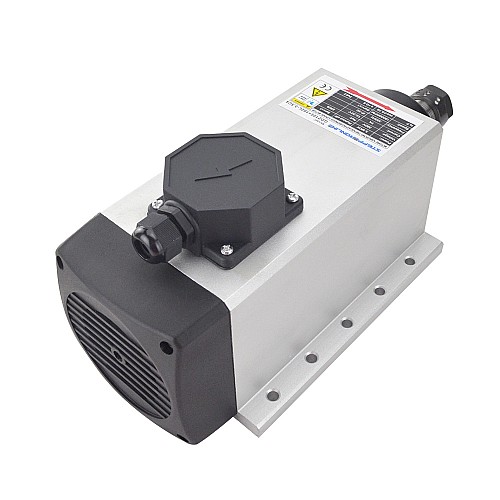

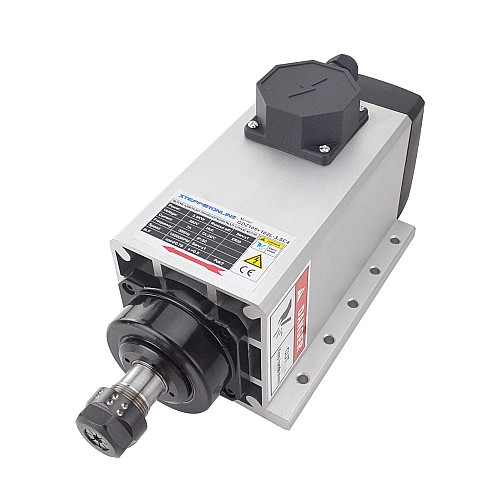

CNC Spindle Motor Air Cooled 380V 3.5KW 18000RPM 300Hz ER20 Collet

0 reviews - Write a review

C$0.00

In Stock: 1
Model: GDZ105x102L-3.5C4
Gross Weight: 8.55kg
Certificated: ISO

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 999

Choose a Local Warehouse, Get More Benefits!

Customers from the United States, United Kingdom, European Union, Australia, and Russia are advised to select local warehouses first. Customers from other countries like Canada should choose the China warehouse.

Specification

Manufacturer Part Number: GDZ105x102L-3.5C4
Material: Stainless steel
Size: 192x102(Length: 192mm, Width: 102mm)
Power: 3.5KW
Voltage: 380VAC
Current: 7A
Frequency: 0 ~ 300Hz
Speed: 0 ~ 18000RPM
Cooling: Air cooled
Bearing Lubrication: Grease
Collet size: ER20 Collet(6mm)
Bearings: 2x7005, 2x7002
Weight: 8.1kg

Operating Environment
Cooling Method	Air cooled
Product Type
Product Type	Spindle Motor
Spindle Motor Specification
Bearing Lubrication	Grease
Body Height(mm)	105
Body Length(mm)	192
Body Width(mm)	102
Collet Size	ER20
Material	Stainless steel
Power(Kw)	3.5
Shape	Square
Voltage(VAC)	380
Electrical Specification
Current(A)	7
Frequency(Hz)	0 - 300
Speed(rpm)	0 - 18000
Physical Specification
Bearings	2x7005, 2x7002
Inventory Method	Dedicated Inventory
Weight(Kg)	8.1
