Name: TES Series 1 Axis 3.0Nm(424.83oz.in) Stepper CNC Kit 4.2A Nema 23 Stepper Motor & Driver DM556TE
Brand: STEPPERONLINE
SKU: 1-DM556TE-23HS45
Price: 46.62 CAD
Availability: InStock

TES Series 1 Axis 3.0Nm(424.83oz.in) Stepper CNC Kit 4.2A Nema 23 Stepper Motor & Driver DM556TE - 1-DM556TE-23HS45 | StepperOnline CA

1-DM556TE-23HS45

Output Shaft TypeD

Shaft Diameter(mm)10

Holding Torque(Ncm)300

Holding Torque(oz.in)424.83

Question

Downloads

23HS45-4204S.STEPSTEP · 1.93MBLog in to download DM556TE.STEPSTEP · 11.44MBLog in to download TE_series_user_manual.pdfPDF · 1.01MB 23HS45-4204S_Full_Datasheet.pdfPDF · 218.75KB 23HS45-4204S_Torque_Curve.pdfPDF · 214.04KB

Same series

Model	Output Shaft Type	Shaft Diameter(mm)	Holding Torque(Ncm)	Holding Torque(oz.in)	Price	Stock
1-DM556T-23HS45	D	10	300	425	C$54.14	In stock
1-DM556TE-23HS45	D	10	300	424.83	C$46.62	In stock
1-DM860I-34HS31	Keyway	14	480	679.74	C$72.86	In stock
1-DM860I-34HS31-SALE	Keyway	14	480	679.74	C$71.18	In stock
1-DM860I-34HS39	Keyway	14	800	1132.89	C$78.62	In stock
1-DM860I-34HS39-SALE	Keyway	14	800	1132.89	C$83.24	In stock
1-DM860I-34HS45	Keyway	14	820	1161.45	C$81.97	In stock
1-DM860I-34HS45-SALE	Keyway	14	820	1161.45	C$80.07	In stock
1-DM860I-S80	Keyway	14	800	1132.89	C$108.87	In stock

TES Series 1 Axis 3.0Nm(424.83oz.in) Stepper CNC Kit 4.2A Nema 23 Stepper Motor & Driver DM556TE

This CNC kit included: 1 x DM556TE: TE Series Digital Stepper Driver 1.8-5.6A 24-50VDC for Nema 2... Read More

0 reviews • Write a review

from

C$46.62

5 + C$45.21

10 + C$43.89

50 + C$42.64

100 + C$41.47

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

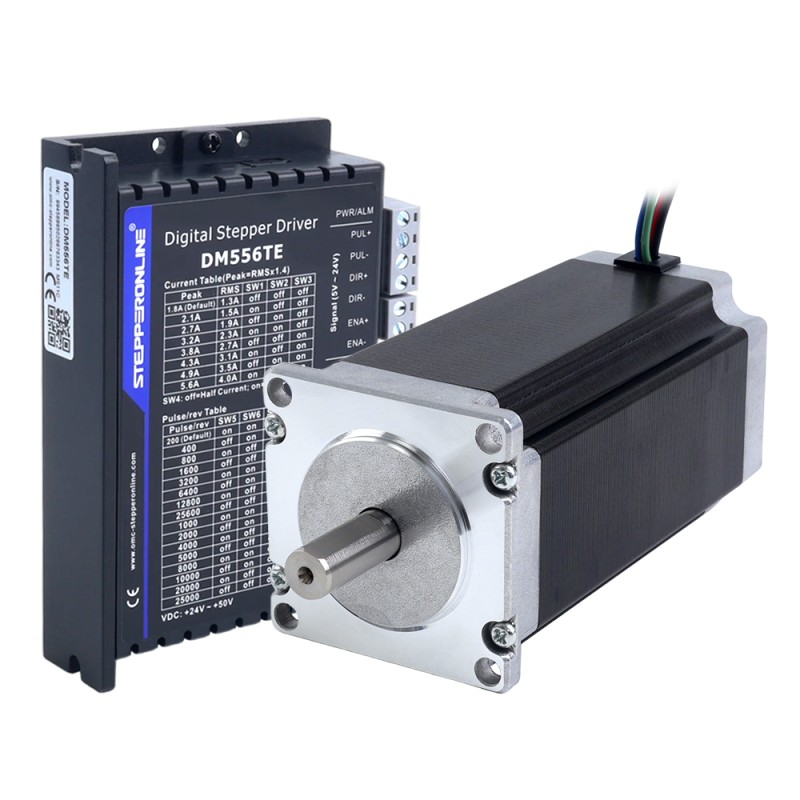

This CNC kit included:

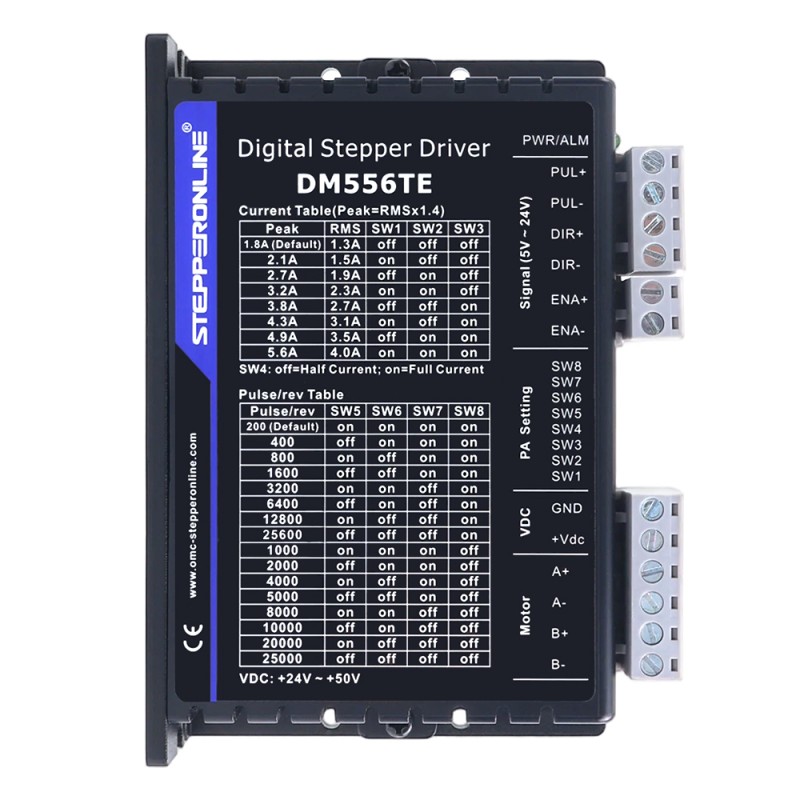

1 x DM556TE: TE Series Digital Stepper Driver 1.8-5.6A 24-50VDC for Nema 23, 24, 34 Motor

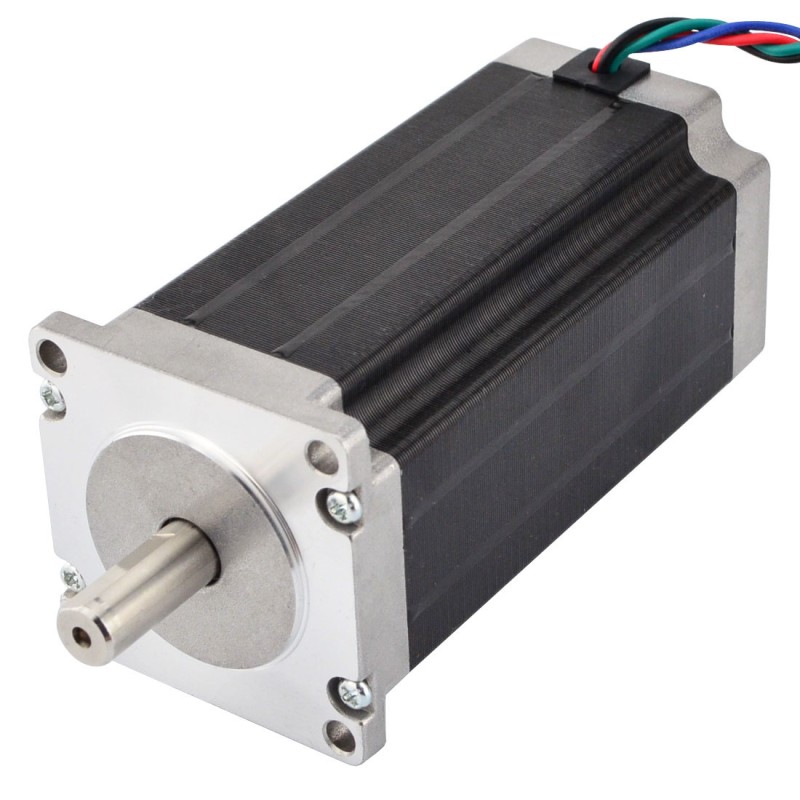

1 x 23HS45-4204S: Nema 23 Bipolar 3Nm(424.83oz.in) 4.2A 57x57x113mm 4 Wires Stepper Motor CNC

Motor Specification

Manufacturer Part Number: 23HS45-4204S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 3.0Nm(424.83oz.in)
Rated Current/phase: 4.2A
Phase Resistance: 0.88ohms
Inductance: 3.4mH±20%(1KHz)
Frame Size: 57 x 57mm
Body Length: 113mm
Shaft Diameter: Φ10mm
Shaft Length: 24mm
D-cut Length: 20mm
Number of Leads: 4
Lead Length: 400mm
Insulation Class: B 130°C[266°F]

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Driver Specification

Output Peak Current: 1.8~5.6A(1.3~4.0RMS)
Input Voltage: +24~50VDC
Logic Input Voltage: 5~24VDC
Logic Input Current: 7~20mA
Pulse Input Frequency: 0~200kHz
Pulse Width: 2.5μS
Isolation Resistance: 500MΩ
Motor winding open circuit detection
Optically isolated inputs with 5V to 24V
Only supports single pulse
Automatic idle-current reduction
Pulse input frequency up to 200KHz
Step & direction(PUL/DIR) control
Multi-Stepping for smooth motor movement
Soft-start with no "jump" when powered on
Protections for over-voltage and over-current
TTL compatible and optically isolated inputsto 5.6A
16 selectable micro-step resolutions of 200-25,600 via DIP switches
8 selectable output current settings of 1.8A to 5.6A via DIP switches
Anti-Resonance for optimal torque, extra smooth motion, low motor heating and noise
Motor auto-identification and parameter auto-configuration for optimal torque from wide-range motors

Product Type
Product Type	Open Loop Stepper Kit
Electrical Specification
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	300
Holding Torque(oz.in)	424.83
Input Voltage Reference(V)	24 - 50DC
No. of Phase	2
Number of Axes	1
Physical Specification
Frame Size(mm)	Nema 23 (57 x 57)
Output Shaft Type	D
Power Supply	No
Product Series	TES Series
Shaft Diameter(mm)	10
