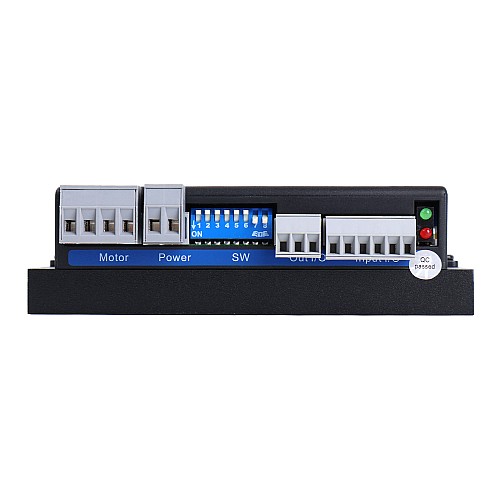

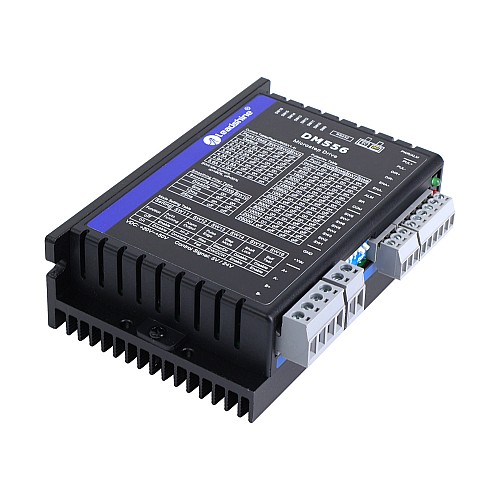

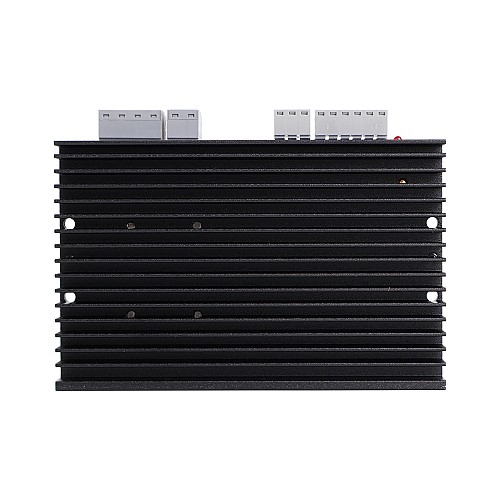

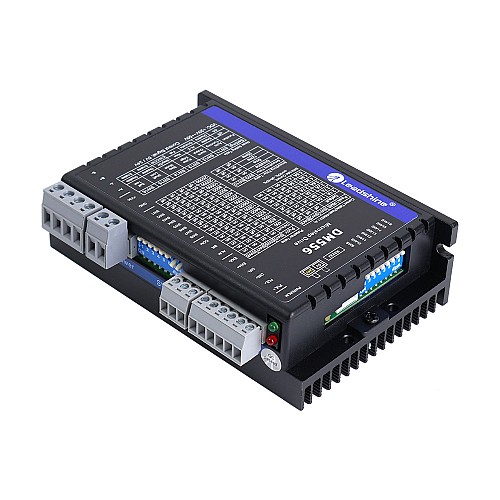

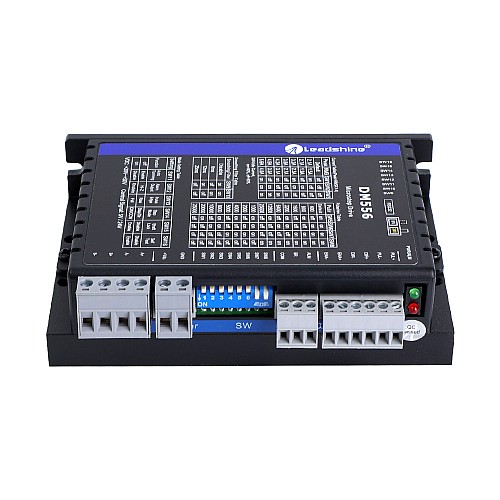

Leadshine Digital Stepper Driver 0.5-5.6A 20-50VDC for Nema 17, 23, 24 Stepper Motor

The DM556 stepper drive is designed to power 2 phase(1.8°) or 4-phase(0.9°) NEMA17, 23 and 24 hybrid stepper motors. It can be adopted in many industries(CNC machinery, electronics, medical, automation, packaging…) for applications such as CNC routers, mills, plasma, laser cutters, factory assembly lines, vending machines, etc. Its excellent performance, simple design, and easy setup features make DM556 ideal for many step & direction control type applications.

Key Features

• Fault and Brake output
• CE certified and RoHS compliant
• Convenient self-test for easy diagnosis
• Soft-start with no "jump" when powered on
• 5V/24V logic voltage selector, default setting 24V
• 200KHz(500KHz optional) max pulse input frequency
• Idle current reduction to 50% or 90% selection via SW4
• Step & direction(PUL/DIR) or CW/CCW(double pulse) control
• Over-voltage, over-current and motor cable error protections
• Auto-tuning to match wide-range NEMA 17, 23, 24 stepper motors
• Configurable control command smoothing for reducing motor vibration
• Anti-Resonance for optimal torque, extra smooth motion, low motor heating and noise
• 8 output current settings of 1.8 - 5.6A via DIP Switches, or 0.5 - 5.6A via software(increase by 0.1)
• 16 micro-step resolutions of 200 - 25,600 via DIP switches, or 200 - 51,200 via software(increase by 200)

Electrical Specifications

• Output Current: 0.5~5.6A(4.0RMS)
• Input Voltage: +20~50VDC(Typical 24 - 48VDC)
• Logic Signal Current: 7~16mA(Typical 10mA)
• Pulse Input Frequency: 0~200kHz
• Pulse Width: 2.5μS
• Isolation Resistance: 500MΩ

Operating Environment and other Specifications(Tj = 25℃/77℉)

• Cooling: Natural Cooling or Forced cooling
• Environment: Avoid dust, oil fog and corrosive gases
• Ambient Temperature: 0℃ － 65℃
• Humidity: 40%RH－90%RH
• Operating Temperature: 0℃ － 50℃
• Vibration: 10 - 55Hz / 0.15mm
• Storage Temperature: -20℃ － 65℃
• Weight: Approx.250g(8.8oz)
