TS Series 1 Axis 3.0Nm(425oz.in) Stepper CNC Kit 4.2A Nema 23 Stepper Motor & Driver DM556T

4 reviews - Write a review

C$55.26

5 + C$53.65

10 + C$52.13

50 + C$50.69

100 + C$49.33

In Stock: 10000
Model: 1-DM556T-23HS45
Gross Weight: 2.25kg
Certificated: ISO, CE, UKCA

Available Options

Ships from

China

United States

Germany

United Kingdom

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

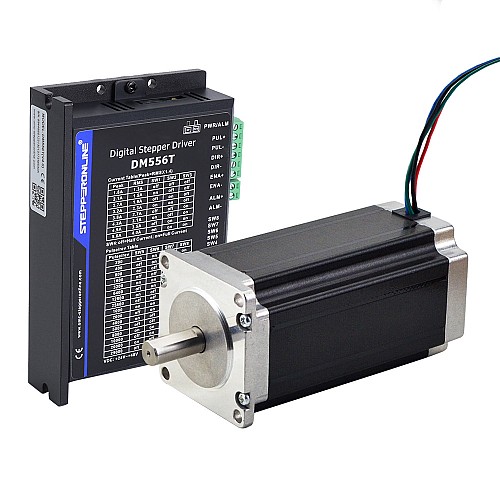

This CNC kit included:

1 x DM556T: Digital Stepper Drive 1.8~5.6A 20-50VDC
1 x 23HS45-4204S: Nema 23 Bipolar 3Nm(425oz.in) 4.2A 57x57x114mm 4 Wires Stepper Motor CNC

Motor Specification

Manufacturer Part Number: 23HS45-4204S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 3.0Nm(425oz.in)
Rated Current/phase: 4.2A
Phase Resistance: 0.9ohms
Inductance: 3.8mH±20%(1KHz)
Frame Size: 57 x 57mm
Body Length: 113mm
Shaft Diameter: Φ10mm
Shaft Length: 24mm
D-cut Length: 20mm
Number of Leads: 4
Lead Length: 400mm
Insulation Class: B 130°C[266°F]

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

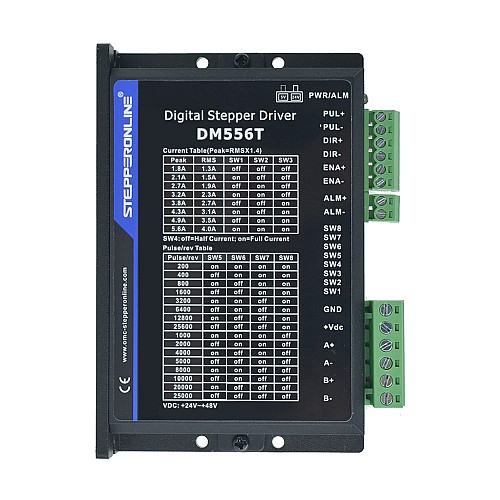

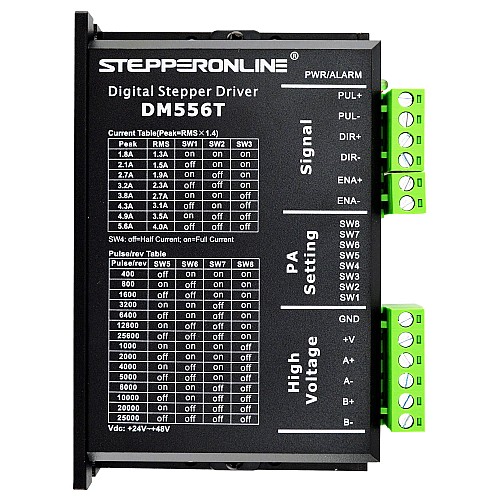

Driver Specification

Anti-Resonance for optimal torque, extra smooth motion, low motor heating and noise
Motor auto-identification and parameter auto-configuration for optimal torque from wide-range motors
Step & direction(PUL/DIR) control
Multi-Stepping for smooth motor movement
TTL compatible and optically isolated inputs
Input voltage 20-50VDC
16 selectable micro-step resolutions of 400-25,600 via DIP switches
8 selectable output current settings of 1.8 - 5.6A via DIP switches
Soft-start with no "jump" when powered on
Pulse input frequency up to 200KHz
Automatic idle-current reduction
Protections for over-voltage and over-current

Product Type
Product Type	Open Loop Stepper Kit
Electrical Specification
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	300
Holding Torque(oz.in)	425
Input Voltage Reference(V)	24 - 48DC
No. of Phase	2
Number of Axes	1
Physical Specification
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
Output Shaft Type	D
Power Supply	No
Product Series	TS Series
Shaft Diameter(mm)	10

File	Size
23HS45-4204S_Full_Datasheet.pdf	150.68KB	Download
23HS45-4204S.STEP	1.93MB	Download
23HS45-4204S_Torque_Curve.pdf	155.07KB	Download
DM556T.pdf	2.88MB	Download
DM556T.STEP	2.76MB	Download
