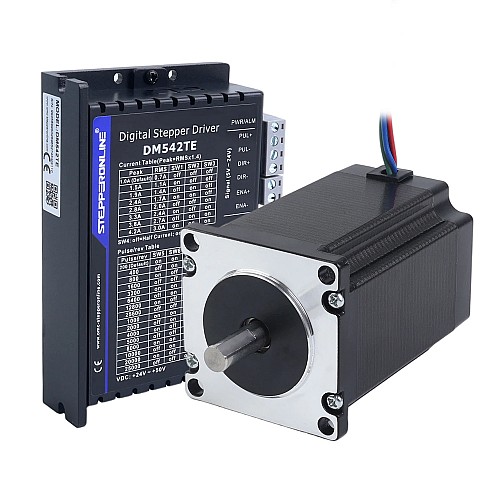

TES Series 1 Axis Stepper CNC Kit 2.4Nm(339.87oz.in) Nema 23 Stepper Motor & Driver DM542TE

This CNC kit included:

• 1 x DM542TE: TE Series Digital Stepper Driver 1.0-4.2A 24-50VDC for Nema 17, 23 Motor
• 1 x 23HS32-4004S: Nema 23 Stepper Motor 2.4Nm(339.87oz.in) 4A 57x57x82mm 8mm Shaft 4 Wires

Motor Specification

• Manufacturer Part Number: 23HS32-4004S
• Number Of Phase: 2
• Step Angle: 1.8deg
• Holding Torque: 2.4Nm(339.87oz.in)
• Rated Current/phase: 4.0A
• Phase Resistance: 0.65ohms
• Inductance: 3.2mH±20%(1KHz)
• Frame Size: 57 x 57mm
• Body Length: 82mm
• Shaft Diameter: Φ8mm
• Shaft Length: 21mm
• D-cut Length: 15mm
• Number of Leads: 4
• Lead Length: 300mm
• Insulation Class: B 130°C[266°F]

Driver Specification

• Output Peak Current: 1.0~4.2A(0.7~3.0RMS)
• Input Voltage: +24~50VDC
• Logic Input Voltage: 5~24VDC
• Logic Input Current: 7~20mA
• Pulse Input Frequency: 0~200kHz
• Pulse Width: 2.5μS
• Isolation Resistance: 500MΩ
• Motor winding open circuit detection
• Optically isolated inputs with 5V to 24V
• Only supports single pulse
• Support PUL/DIR mode
• Automatic idle-current reduction
• Over-voltage and over-current protections
• Soft-start with no "jump" when powered on
• Anti-Resonance provides optimal torque and nulls mid-range instability
• Pulse input frequency up to 200KHz, TTL compatible and optically isolated input
• Suitable for 2-phase and 4-phase motors, works well as nema 17 driver, nema 23 driver
• 8 selectable peak current including 1.00A, 1.50A, 1.90A, 2.40A, 2.80A, 3.30A, 3.80A, 4.20A
• Motor auto-identification and parameter auto-configuration when power on, offer optimal responses with different motors
• Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement
• 16 selectable microstep resolutions including 200, 400, 800, 1600, 3200, 6400, 12800, 25600, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 25000

Connection
