CL57PR-USED
Control ModesModbus RS485
Encoder FeedbackYes (Closed Loop)
Input Voltage Reference(V)20 - 50DC
Max. Output Current RMS(A)5.0
Question

Downloads

CL57PR_bus_stepper_driver_specification_V1.0.pdfPDF · 750.28KBSTEPPERONLINE_Stepper_driver_testing_software_V1.2.3.exeEXE · 31.18MBModbus-Series-Bus-Product-Function-Manual-V1.0_1_.pdfPDF · 2.81MB
Same series
ModelControl ModesEncoder FeedbackInput Voltage Reference(V)Max. Output Current RMS(A)PriceStock
CL42T-V41Pulse ModeYes (Closed Loop)24 - 48DC2.0C$52.77In stock
CL42Y-V20Pulse ModeYes (Closed Loop)24 - 50DC2.2C$52.55In stock
CL57ECEtherCATYes (Closed Loop)24 - 50DC4.0C$86.43In stock
CL57PRModbus RS485Yes (Closed Loop)20 - 50DC5.0C$79.66In stock
CL57PR-USEDModbus RS485Yes (Closed Loop)20 - 50DC5.0C$67.71In stock
CL57RSModbus RS485Yes (Closed Loop)24 - 48DC4.9C$129.75In stock
CL57T-V41Pulse ModeYes (Closed Loop)24 - 48DC5.0C$52.77In stock
CL57TEPulse ModeYes (Closed Loop)24 - 50DC6.0C$46.50In stock
CL57YPulse ModeYes (Closed Loop)24 - 48DC5.0C$44.07In stock
CL57Y-V20Pulse ModeYes (Closed Loop)24 - 50DC5.6C$48.60In stock
CL57Y-V20-USEDPulse ModeYes (Closed Loop)24 - 50DC5.6C$56.36In stock
CL86ECEtherCATYes (Closed Loop)20 - 80AC / 30 - 110DC6.0C$108.47In stock
CL86RSModbus RS485Yes (Closed Loop)24 - 80AC / 36 - 110DC5.7C$181.64In stock
CL86T-V41Pulse ModeYes (Closed Loop)18 - 80AC / 24 - 110DC5.7C$67.15In stock
CL86T-V41-USEDPulse ModeYes (Closed Loop)18 - 80AC / 24 - 110DC5.7C$39.35In stock
CL86YPulse ModeYes (Closed Loop)24 - 80AC / 36 - 110DC6.0C$57.62In stock
CL86Y-V20Pulse ModeYes (Closed Loop)24 - 80AC / 36 - 110DC6.0C$65.08In stock

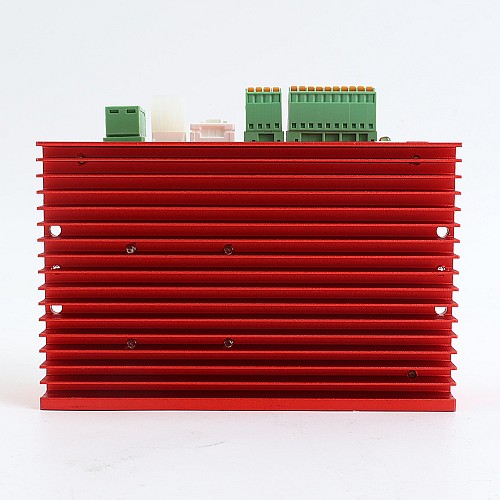

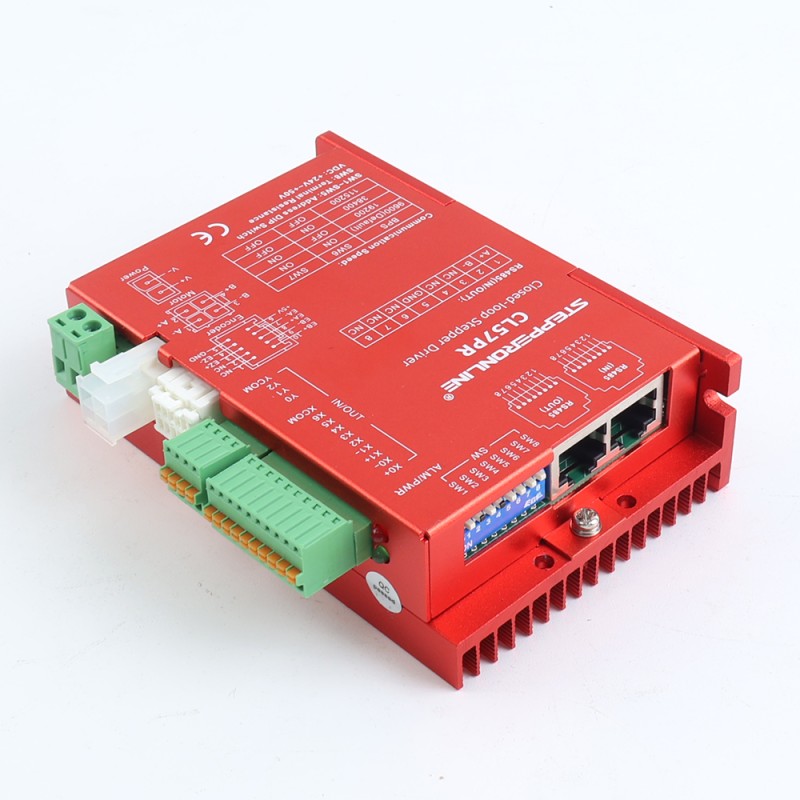

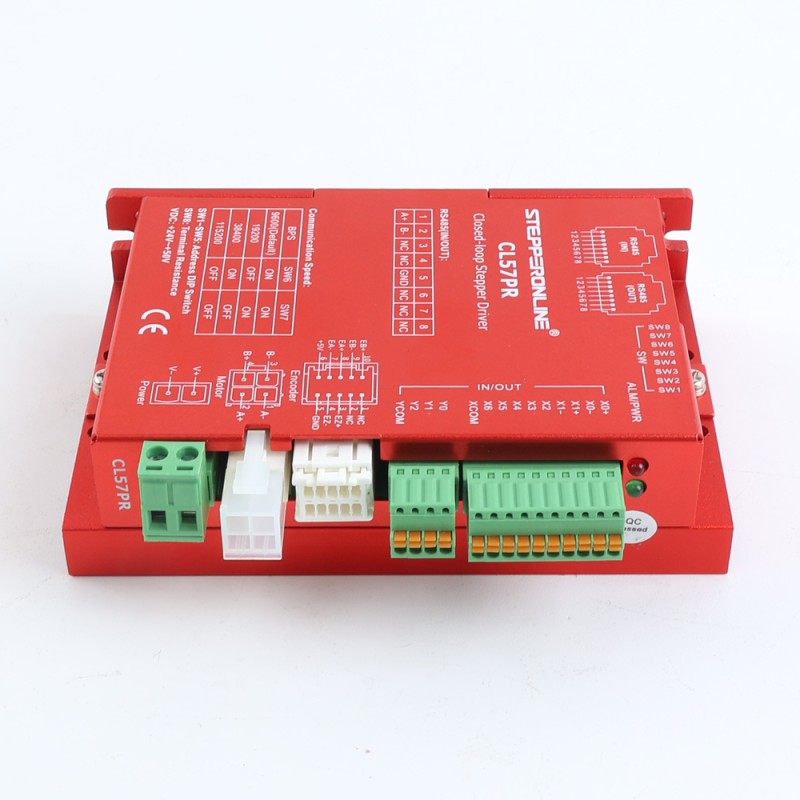

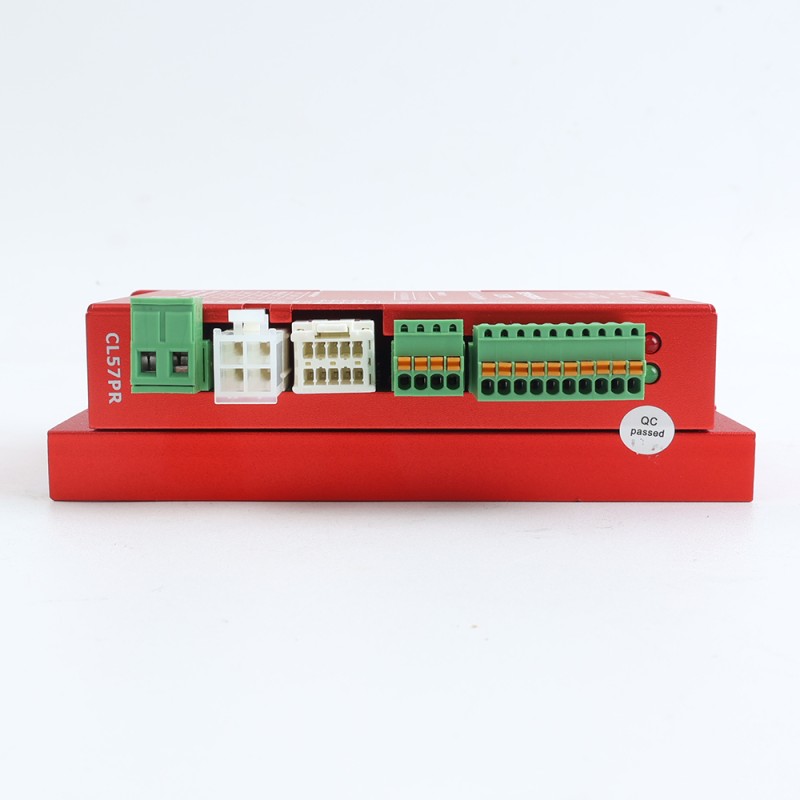

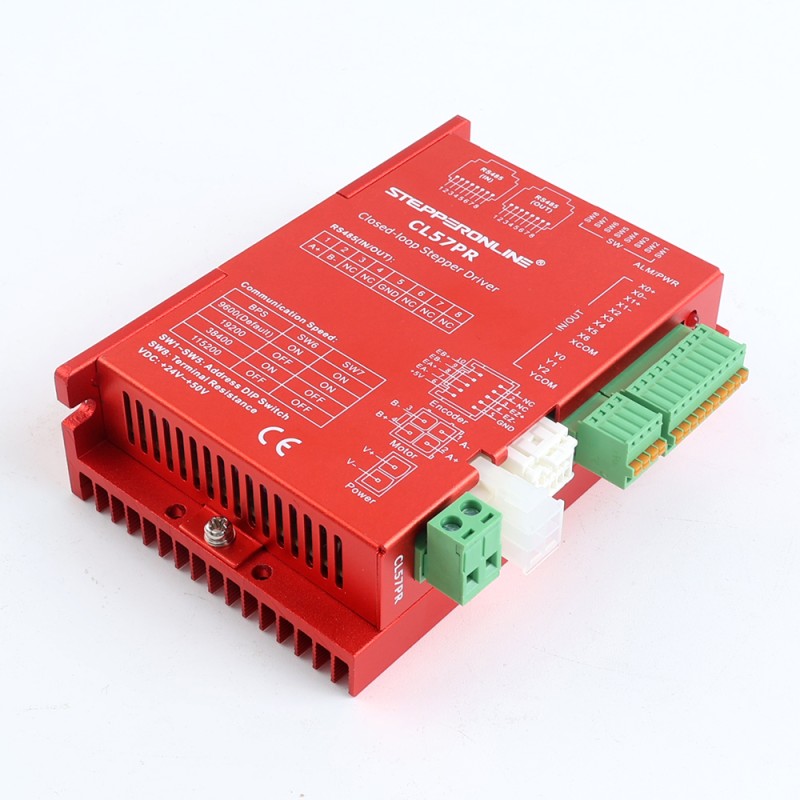

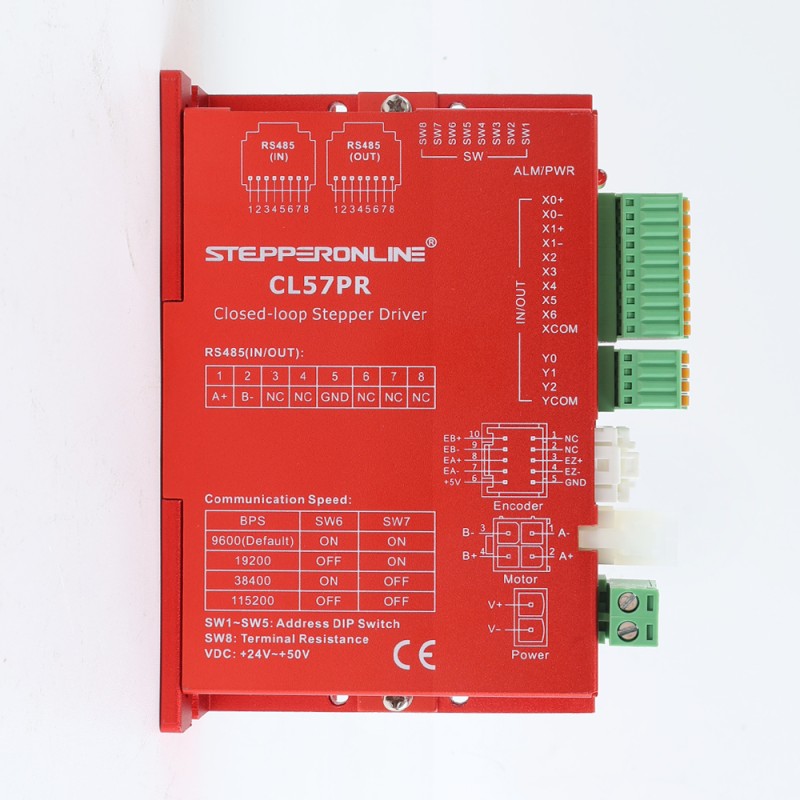

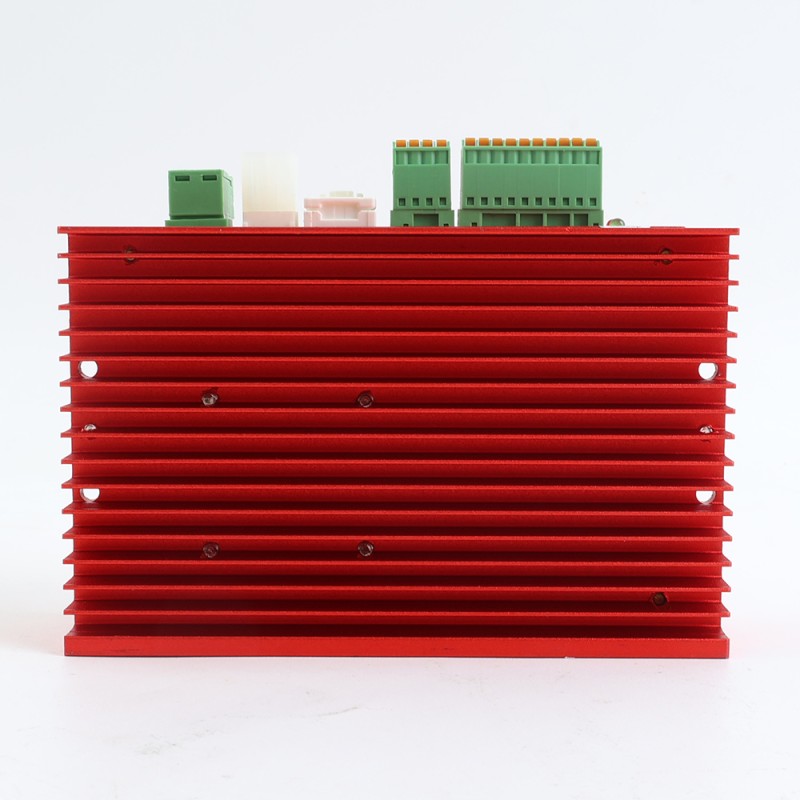

Used - China Stock - Y Series Modbus RS485 Closed Loop Stepper Driver 0-5.0A 20-50VDC for Nema 17, 23, 24 Stepper Motor
This is a closed-loop stepper driver support standard Modbus RTU protocol. It delivers superior per... Read More
0 reviews • Write a review
from Save -15%
C$67.71
C$79.66

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This is a closed-loop stepper driver support standard Modbus RTU protocol. It delivers superior performance with a current range of 0–5.0A and an operating voltage of 20–50VDC, making it ideal for Nema 17, 23, 24 stepper motors.
The next-generation 32-bit DSP-based closed-loop stepper driver combines high performance, stability, and cost efficiency with ultra-low noise and vibration. With versatile I/O interfaces, it supports position/speed control, homing, and single-axis motion functions, while allowing users to adjust current, subdivision settings, and monitor real-time motor status via bus commands.

Key Features

  • Next-generation 32-bit DSP technology delivers exceptional cost-performance ratio, superior stability, and ultra-quiet operation with minimal vibration
  • RS485 bus communication interface with Modbus RTU protocol support enables network control of up to 31 drivers simultaneously
  • Comprehensive I/O interfaces for complete single-axis motion control including position/speed control and homing functions
  • Bus-configurable parameters: current adjustment, microstepping settings, locked current, plus real-time motor status monitoring
  • 2 optically-isolated high-speed differential inputs for external motor start/stop control
  • 5 optically-isolated single-ended inputs for external commands (enable/stop/emergency stop)
  • 3 optically-isolated output ports for driver status feedback and control signaling
  • Wide microstepping range (400-51,200 steps/rev) with precision current control for reduced motor heating
  • Comprehensive protection: over-voltage, under-voltage, and over-current safeguards

Electrical Specifications

  • Continuous Output Current: 0 - 5.0A(Typical 2.0A)
  • Input Voltage: 20 - 50VDC
  • Logic Input Current: 1.0 - 7.5mA
  • Logic Input Voltage: 5 - 24V
  • Isolation Resistance: 100MΩ

Operating Environment and other Specifications(Tj = 25℃/77℉)

  • Cooling: Natural Cooling
  • Environment: Stay away from other heating equipment, avoid dust, oil mist, corrosive gas, strong vibration places, flammable gas and conductive dust
  • Temperature: 0℃ - 50℃
  • Humidity: 40%RH - 90%RH(non-condensation)
  • Vibration: 10 - 55Hz/0.15mm
  • Storage Temperature: -20℃ - 70℃
Product Type
Product Type Driver
Electrical Specification
Control Modes Modbus RS485
Encoder Feedback Yes (Closed Loop)
Input Voltage Reference(V) 20 - 50DC
Input Voltage(V) 20 - 50DC
Max. Output Current RMS(A) 5.0
No. of Phase 2
Physical Specification
Installation Type Split

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview

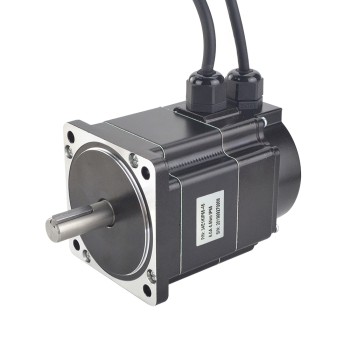

P Series IP65 Waterproof Nema 34 Closed Loop Stepper Motor 4.5Nm(637.38oz.in) with Encoder 1000PPR(4000CPR)
P Series IP65 Waterproof Nema 34 Closed Loop Stepper Motor 4.5Nm(637.38oz.in) with Encoder 1000PPR(4000CPR)
This P series closed loop nema 34 stepper motor with IP65 waterproof ratings and 4.5Nm(637.38oz.in), that meaning this IP65 stepper motor ca..
from
C$130.14
Add to Cart
Add to Wish List Compare this Product
Quickview
350W 48V 7.3A 115/230V Switching Power Supply Stepper Motor CNC Router Kits
350W 48V 7.3A 115/230V Switching Power Supply Stepper Motor CNC Router Kits
This LE series switching power supply has an output power of 350W, an output voltage of 48V, and an output current of 7.3A. Selectable input voltage o..
from
C$25.93
Add to Cart
Add to Wish List Compare this Product
Quickview

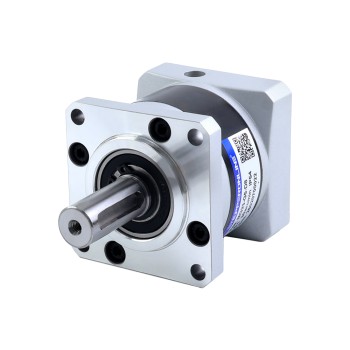

MG Series Planetary Gearbox Gear Ratio 5:1 Backlash 30arc-min for 8mm Shaft Nema 23 Stepper Motor
MG Series Planetary Gearbox Gear Ratio 5:1 Backlash 30arc-min for 8mm Shaft Nema 23 Stepper Motor
This high-precision planetary gearbox is belong to MG series gearbox, with gear ratio 5:1 and a maximum 30arc-min backlash. Different with the EG seri..
from
C$27.83
Add to Cart
Add to Wish List Compare this Product
Quickview
Y Series Modbus RS485 Closed Loop Stepper Driver 0-5.0A 20-50VDC for Nema 17, 23, 24 Stepper Motor
Y Series Modbus RS485 Closed Loop Stepper Driver 0-5.0A 20-50VDC for Nema 17, 23, 24 Stepper Motor
This is a closed-loop stepper driver support standard Modbus RTU protocol. It delivers superior performance with a current range of 0–5.0A and an ope..
from
C$79.66
Add to Cart
Add to Wish List Compare this Product
Quickview

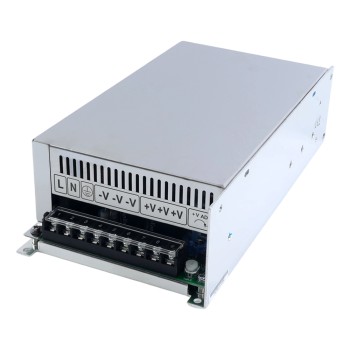

500W 48V 10.5A 115/230V Switching Power Supply Stepper Motor CNC Router Kits
