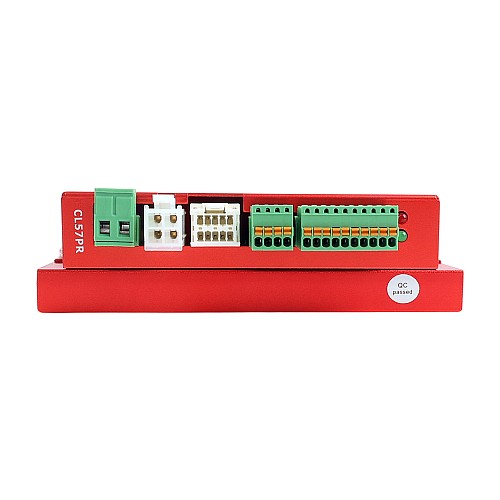

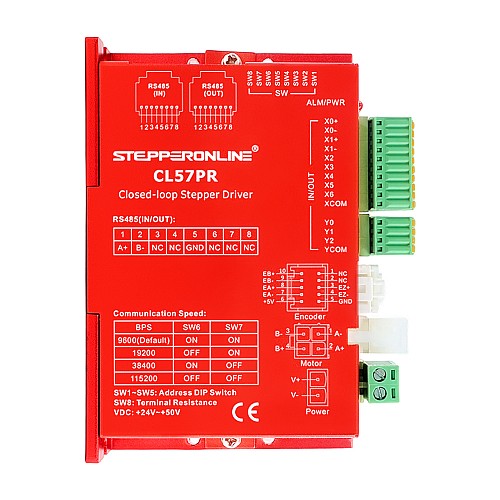

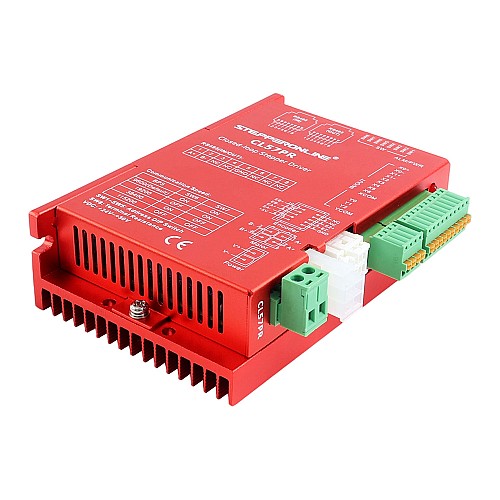

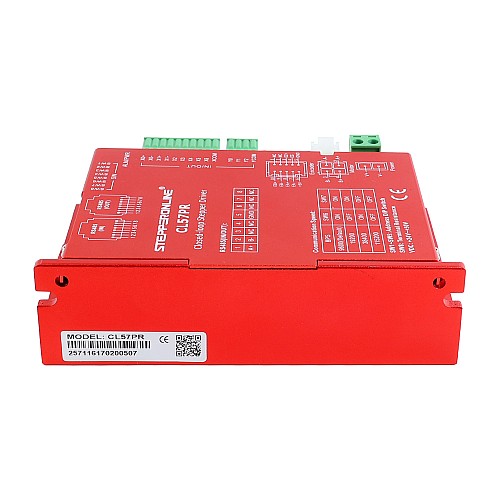

Y Series Modbus RS485 Closed Loop Stepper Driver 0-5.0A 20-50VDC for Nema 17, 23, 24 Stepper Motor

This is a closed-loop stepper driver support standard Modbus RTU protocol. It delivers superior performance with a current range of 0–5.0A and an operating voltage of 20–50VDC, making it ideal for Nema 17, 23, 24 stepper motors.
The next-generation 32-bit DSP-based closed-loop stepper driver combines high performance, stability, and cost efficiency with ultra-low noise and vibration. With versatile I/O interfaces, it supports position/speed control, homing, and single-axis motion functions, while allowing users to adjust current, subdivision settings, and monitor real-time motor status via bus commands.

Key Features

• Next-generation 32-bit DSP technology delivers exceptional cost-performance ratio, superior stability, and ultra-quiet operation with minimal vibration

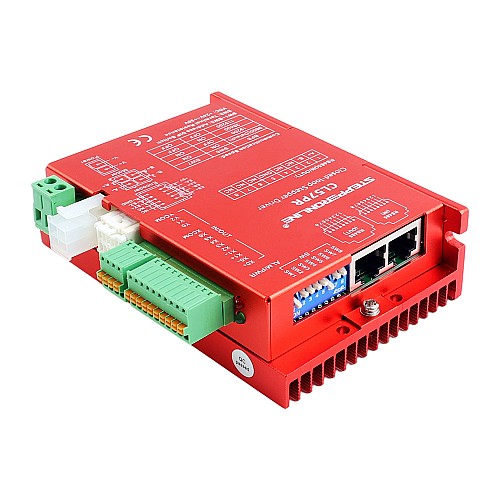

• RS485 bus communication interface with Modbus RTU protocol support enables network control of up to 31 drivers simultaneously
• Comprehensive I/O interfaces for complete single-axis motion control including position/speed control and homing functions
• Bus-configurable parameters: current adjustment, microstepping settings, locked current, plus real-time motor status monitoring
• Four advanced motion control modes: CSP (Cyclic Synchronous Position), PP (Profile Position), PV (Profile Velocity), and HOME
• 2 optically-isolated high-speed differential inputs for external motor start/stop control
• 5 optically-isolated single-ended inputs for external commands (enable/stop/emergency stop)
• 3 optically-isolated output ports for driver status feedback and control signaling
• Wide microstepping range (400-51,200 steps/rev) with precision current control for reduced motor heating
• Comprehensive protection: over-voltage, under-voltage, and over-current safeguards

Electrical Specifications

• Continuous Output Current: 0 - 5.0A(Typical 2.0A)
• Input Voltage: 20 - 50VDC
• Logic Input Current: 1.0 - 7.5mA
• Logic Input Voltage: 5 - 24V
• Isolation Resistance: 100MΩ

Operating Environment and other Specifications(Tj = 25℃/77℉)

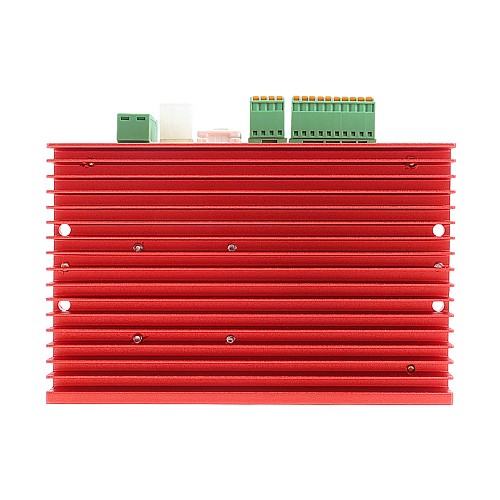

• Cooling: Natural Cooling
• Environment: Stay away from other heating equipment, avoid dust, oil mist, corrosive gas, strong vibration places, flammable gas and conductive dust
• Temperature: 0℃ - 50℃
• Humidity: 40%RH - 90%RH(non-condensation)
• Vibration: 10 - 55Hz/0.15mm
• Storage Temperature: -20℃ - 70℃
