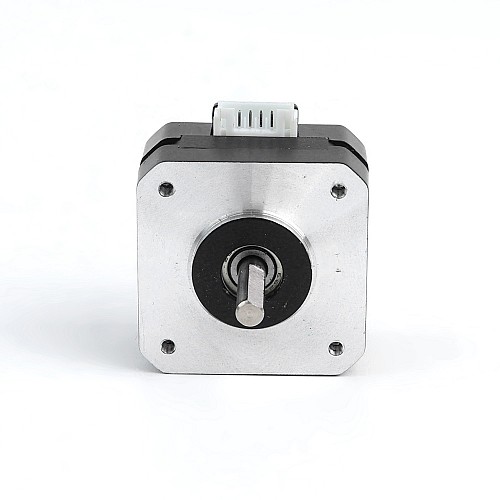

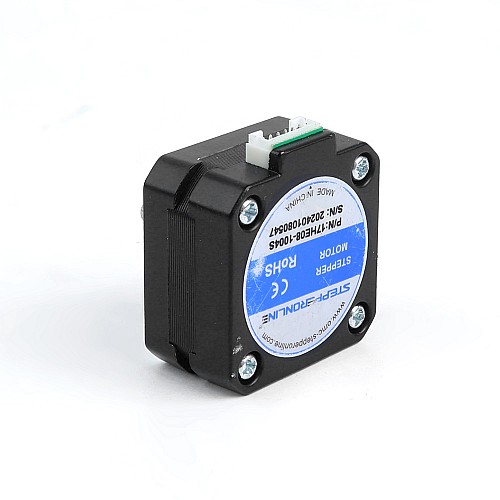

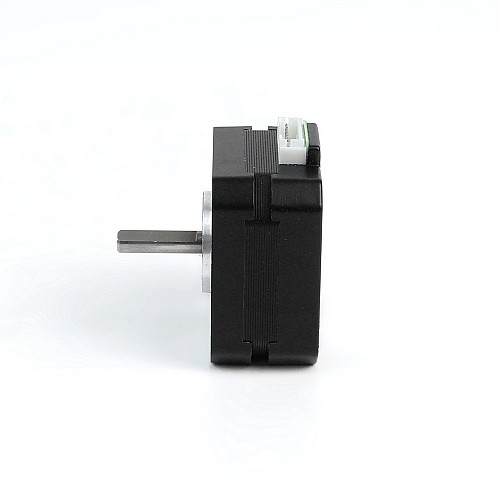

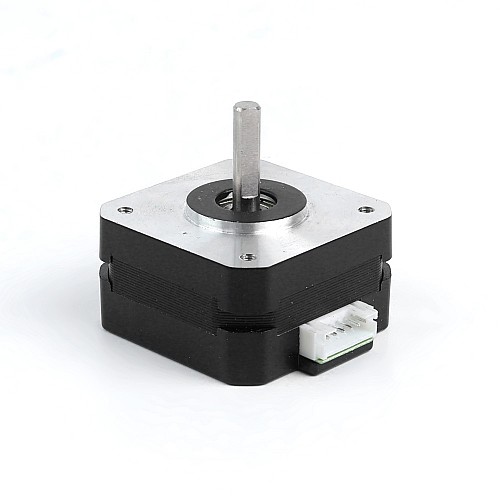

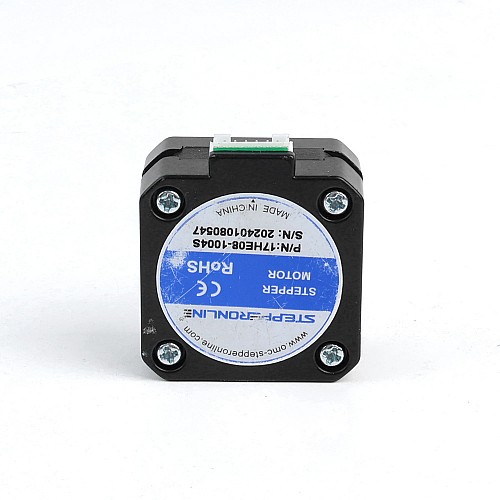

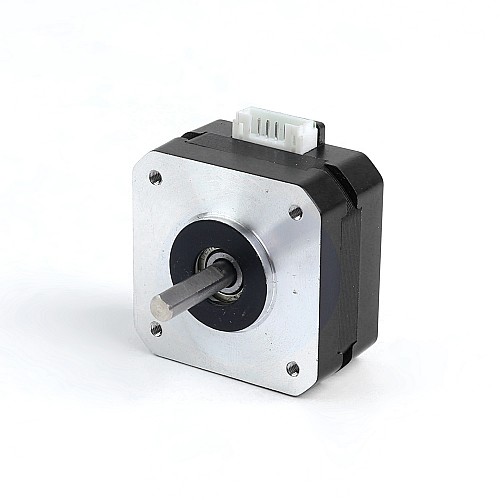

Used - E Series Nema 17 Bipolar 1.8deg 17Ncm(24.07oz.in) 1A 42x42x23mm 4 Wires

E Series Nema 17 Bipolar 1.8deg 17Ncm(24.07oz.in) 1A 42x42x23mm 4 Wires - 17HE08-1004S | StepperOnline CA

Used -52 %

Used - E Series Nema 17 Bipolar 1.8deg 17Ncm(24.07oz.in) 1A 42x42x23mm 4 Wires

0 reviews - Write a review

C$6.30

C$3.03

In Stock: 10000
Model: 17HE08-1004S-USED
Gross Weight: 0.20kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 1

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

What is Used-Product Mean?

STEPPERONLINE Used Products: Second-sale items may have minor defects like surface blemishes, modified cables or damaged packaging. Our technical team conducts strict quality checks to guarantee they work perfectly.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Electrical Specification

Manufacturer Part Number: 17HE08-1004S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 17Ncm(24.07oz.in)
Rated Current/phase: 1.0A
Phase Resistance: 3.6ohms
Inductance: 4.0mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 42 x 42mm
Body Length: 23mm
Shaft Diameter: Φ5mm
Shaft Length: 20mm
D-cut Length: 17mm
Number of Leads: 4
Lead Length: 1000mm

Connection

A+	A-	B+	B-
Black	Blue	Green	Red

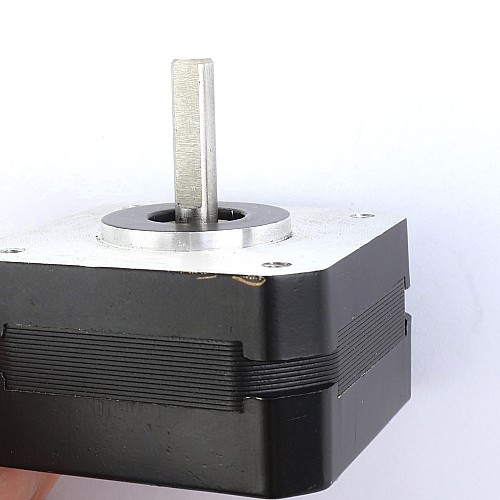

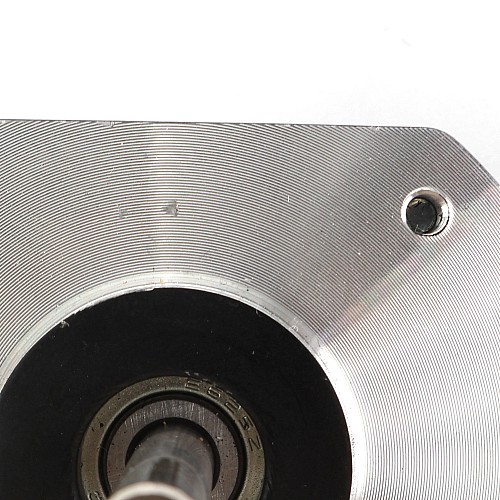

Product status note: the motor has scratches of varying degrees.

Product Type
Product Condition	Used
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	17
Holding Torque(oz.in)	24.07
Inductance(mH)	4.0
Phase Resistance(ohms)	3.6
Rated Current(A)	1
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	23
Frame Size(mm)	Nema 17 (42 x 42)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	1000
No. of Lead	4
Output Shaft Type	D
Product Series	E
Shaft Diameter(mm)	5
Shaft Length(mm)	20
Single Shaft/Dual Shaft	Single Shaft
