Used - EG Series Planetary Gearbox Gear Ratio 100:1 Backlash 20arc-min for Nema 17 Stepper Motor

Used -29 %

Used - EG Series Planetary Gearbox Gear Ratio 100:1 Backlash 20arc-min for Nema 17 Stepper Motor

0 reviews - Write a review

C$44.28

C$31.41

In Stock: 10000
Model: EG17-G100-USED
Gross Weight: 0.41kg
Certificated: ISO, CE, REACH

Sold: 0

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

What is Used-Product Mean?

STEPPERONLINE Used Products: Second-sale items may have minor defects like surface blemishes, modified cables or damaged packaging. Our technical team conducts strict quality checks to guarantee they work perfectly.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

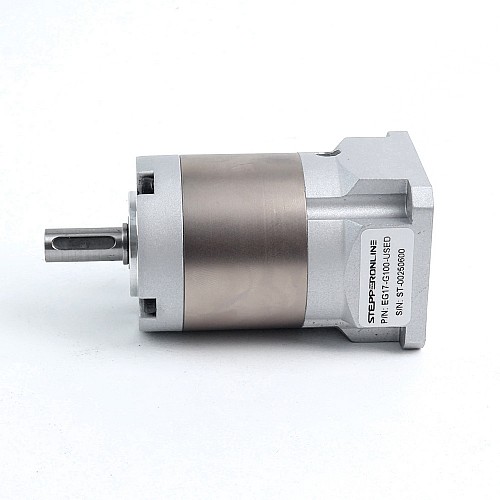

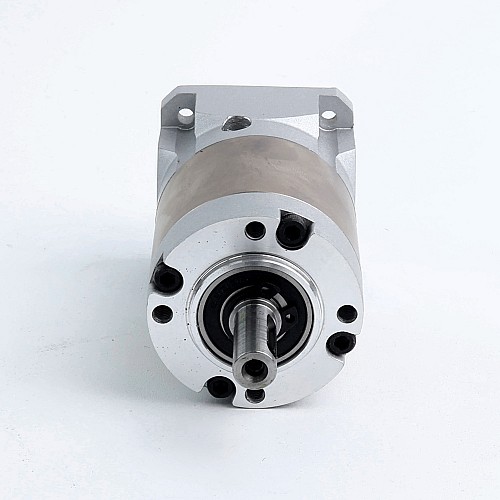

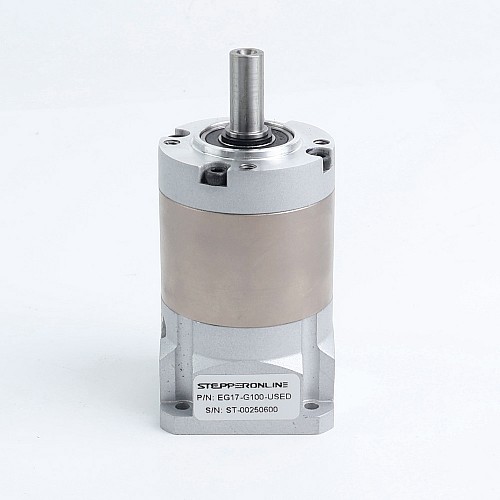

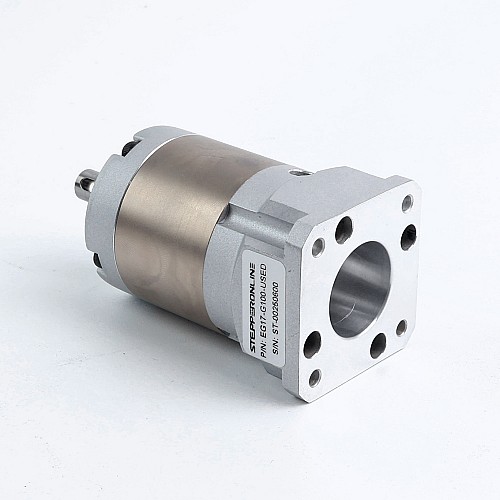

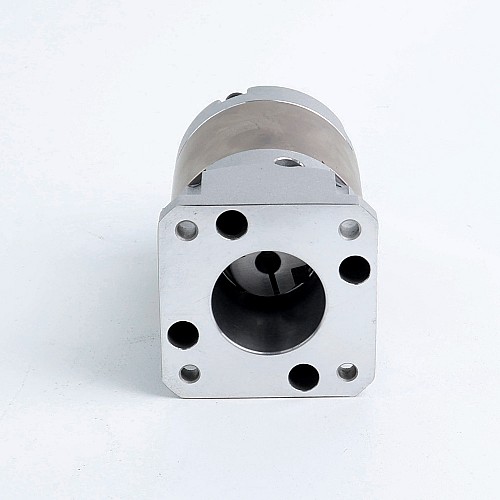

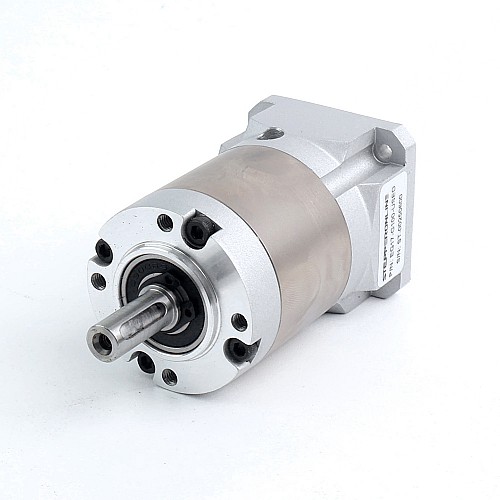

This high-precision planetary gearbox is belong to EG series gearbox, it with gear ratio 100:1 and a maximum 20arc-min backlash. It's an excellent choice for applications that require good accuracy and reliability at an exceptional value. This inline planetary gearbox built-in an input shaft coupling which can match any standard Nema 17 stepper motor and brushless dc motor.

Gearbox Specifications

Part Number: EG17-G100
Gearbox Type: Spur Planetary
Gear Material: Alloy Steel
Gear Ratio: 100:1
Efficiency: 94%
Rotor Inertia: 0.03kg·cm²
Backlash at No-load: <=20arcmin
Max.Permissible Torque: 5Nm(44.26lb-in)
Moment Permissible Torque: 10Nm(88.81lb-in)
Noise: <=65dB
Waterproof Rating: IP54
Lifetime: 20000hours

Physical Specifications

Frame Size: 42 x 42mm
Gearbox Length: 66mm
Output Shaft Type: Key way
Output Shaft Diameter: Φ8mm
Output Shaft Length: 21.5mm
Input Shaft Diameter: Φ5mm
Input Shaft Length: 21.5-25mm

Product status note: the gearbox has slight scratches.

The suitable bracket is ST-M12.

Physical Specification
Backlash at No-load	<=20arcmin
Frame Size(mm)	Nema 17 (42 x 42)
Gear Material	Alloy Steel
Gear Ratio(xx:1)	100
Gearbox Length(mm)	66
Gearbox Type	Spur Planetary
Input Shaft Diameter(mm)	5
Input Shaft Length(mm)	21.5 - 25
Inventory Method	Dedicated Inventory
Matching Motor Size	Nema 17 Stepper Motor
Output Shaft Diameter(mm)	8
Output Shaft Length(mm)	21.5
Output Shaft Type	Keyway
Product Series	EG
Weight(g)	391
