Used - Nema 42 CNC Stepper Motor Bipolar 30Nm(4248oz.in) 8A 110x110x201mm 4 Wires

New Used -45 %

Used - Nema 42 CNC Stepper Motor Bipolar 30Nm(4248oz.in) 8A 110x110x201mm 4 Wires

0 reviews - Write a review

C$265.35

C$146.90

In Stock: 10000
Model: 42HS79-8004S-USED
Gross Weight: 12.00kg
Certificated: ISO, CE, UKCA, RoHS

Click country for real-time stock

Ships from

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

What is Used-Product Mean?

STEPPERONLINE Used Products: Second-sale items may have minor defects like surface blemishes, modified cables or damaged packaging. Our technical team conducts strict quality checks to guarantee they work perfectly.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

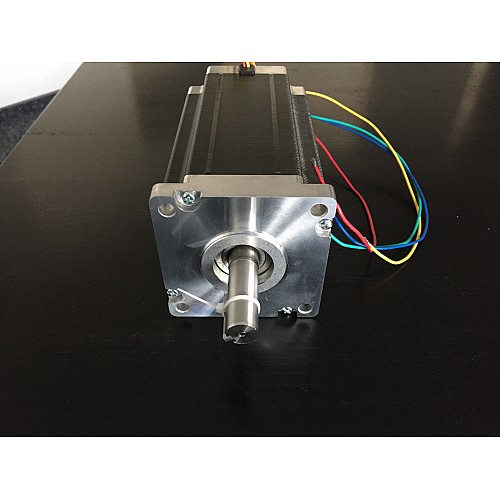

This is the biggest cnc stepper motor we have, it with size 110x110x201mm. It has 4 wires, each phase draws 8.0A, allowing for a huge torque up to 30Nm(4248oz.in).

Electrical Specification

Manufacturer Part Number: 42HS79-8004S
Step Angle: 1.8deg
Holding Torque: 30Nm(4248oz.in)
Rated Current/phase: 8.0A
Phase Resistance: 1.0ohms
Inductance: 17.5mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 110 x 110mm
Body Length: 201mm
Shaft Diameter: Φ19mm
Shaft Length: 55.5mm
Key Way Length: 35mm
Number of Leads: 4
Lead Length: 300mm
Weight: 11.7kg

Connection

A+	A-	B+	B-
Red	Green	Yellow	Blue

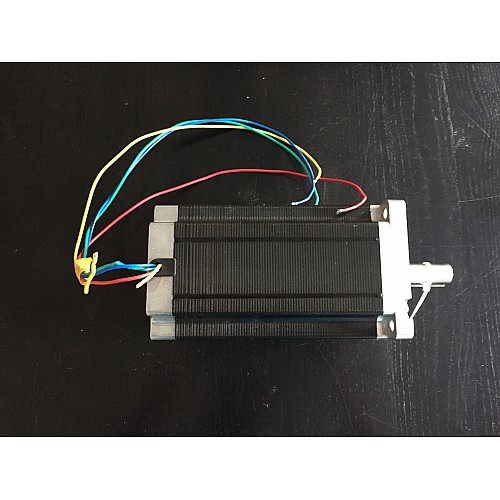

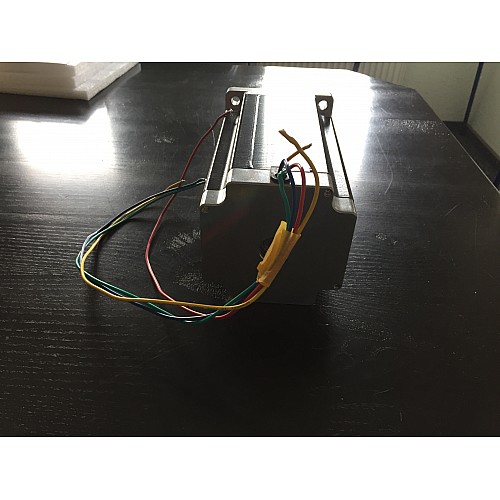

Product status note: the motor wires are broken.

For all Nema 42 stepper motors, we recommend a dedicated driver: DM2282T.
This driver can be directly connected to 180 - 240VAC power supply, so you don't need an additional switching power supply.

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	3000
Holding Torque(oz.in)	4248
Inductance(mH)	17.5
Phase Resistance(ohms)	1.0
Rated Current(A)	8
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	201
Frame Size(mm)	Nema 42 (110 x 110)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	300
No. of Lead	4
Output Shaft Type	Keyway
Product Series	S
Shaft Diameter(mm)	19
Shaft Length(mm)	55.37
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	11700
