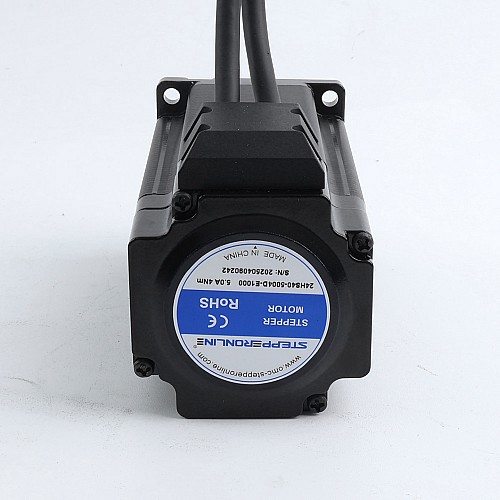

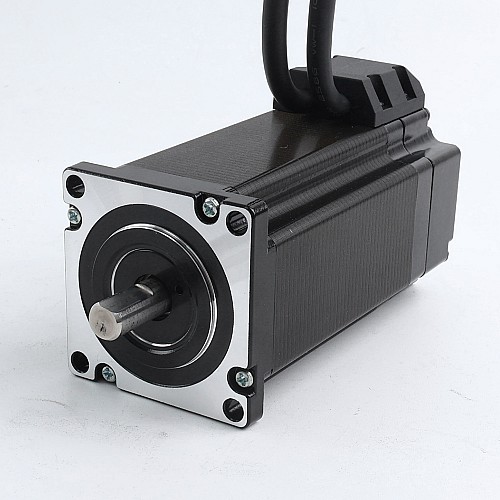

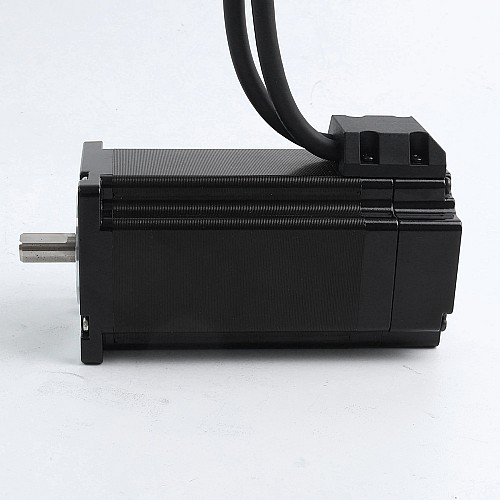

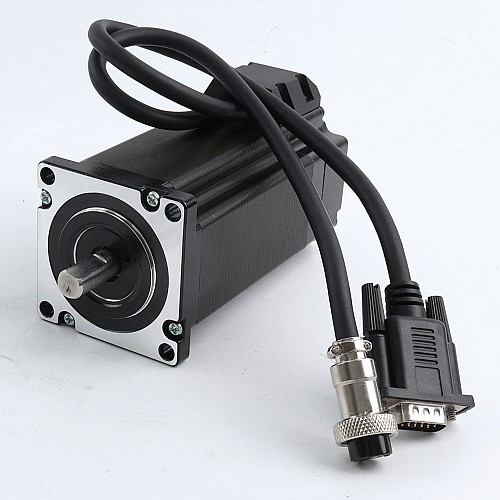

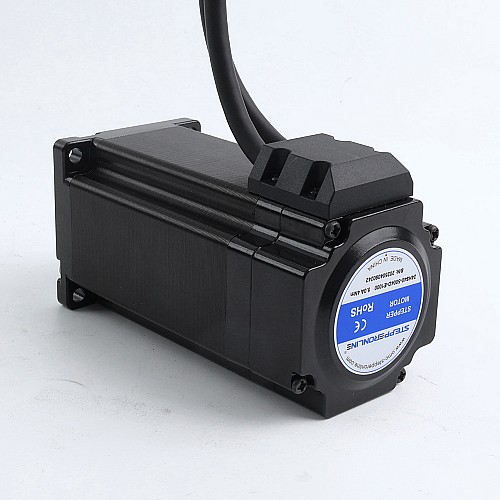

Used - S Series Nema 24 Closed Loop Stepper Motor 4.0Nm(566.45oz.in) Encoder 1000PPR(4000CPR)
0 reviews - Write a review
C$53.46
C$32.42
5 + C$51.26
10 + C$49.23
50 + C$47.36
100 + C$45.62
  • In Stock: 200
  • Model: 24HS40-5004D-E1000-USED
  • Gross Weight: 1.99kg
  • Certificated: ISO, CE, UKCA, RoHS

Click country for real-time stock

Add to Cart
Question
Add to Wish List Compare this Product
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
What is Used-Product Mean?
STEPPERONLINE Used Products: Second-sale items may have minor defects like surface blemishes, modified cables or damaged packaging. Our technical team conducts strict quality checks to guarantee they work perfectly.

Electrical Specification

  • Manufacturer Part Number: 24HS40-5004D-E1000
  • Number of phase: 2
  • Step Angle: 1.8deg
  • Holding Torque: 4.0Nm(566.45oz.in)
  • Rated Current/phase: 5.0A
  • Phase Resistance: 0.6ohms± 10%
  • Inductance: 2.6mH ± 20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 60 x 60mm
  • Body Length: 122mm
  • Shaft Diameter: Φ10mm
  • Shaft Length: 21mm
  • D-cut Length: 15mm
  • Lead Length: 300mm
  • Weight: 1.62kg

Encoder Specification

  • Output Circuit Type: Differential type
  • Encoder Type: Optical Incremental
  • Encoder Resolution: 1000PPR(4000CPR)
  • Output Signal Channels: 2 channels
  • Minimum Supply Voltage: 4.5V
  • Maximum Supply Voltage: 5V
  • Output Current: 25mA
  • Output High Voltage: 4.5V
  • Output Low Voltage: 4.2-4.3V
  • Output Frequency Max: 60kHZ

Connection

PIN
1
2
3
4
Motor
A+
A-
B+
B-

PIN
2
3
1
13
11
12
Encoder
VCC
EGND
EA+
EA-
EB+
EB-
Product status note: the motor has been repaired for some scratches and is in good overall condition, though there may still be minor imperfections..
The applicable bracket for this motor is ST-M13.
The motor comes with a highly flexible cable that can be bent 8 million times without failure.
Product Type
Product Condition Used
Product Type Closed Loop Stepper Motor
Electrical Specification
Encoder Resolution 1000PPR
Encoder Type Optical Incremental
Has Torque/Thrust Curve? Yes
Holding Torque(Ncm) 400
Holding Torque(oz.in) 566.45
Inductance(mH) 2.6
Output Circuit Type Differential
Output Signal Channels 2
Phase Resistance(ohms) 0.6
Rated Current(A) 5.0
Physical Specification
Body Length(mm) 122
Frame Size(mm) Nema 24 (60 x 60)
Inventory Method Dedicated Inventory
Shaft Diameter(mm) 10
Shaft Length(mm) 21
File Size
24HS40-5004D-E1000.STEP 7.67MB Download
24HS40-5004D-E1000_Full_Datasheet.pdf 239.17KB Download
24HS40-5004D-E1000_Torque_Curve.pdf 84.41KB Download
