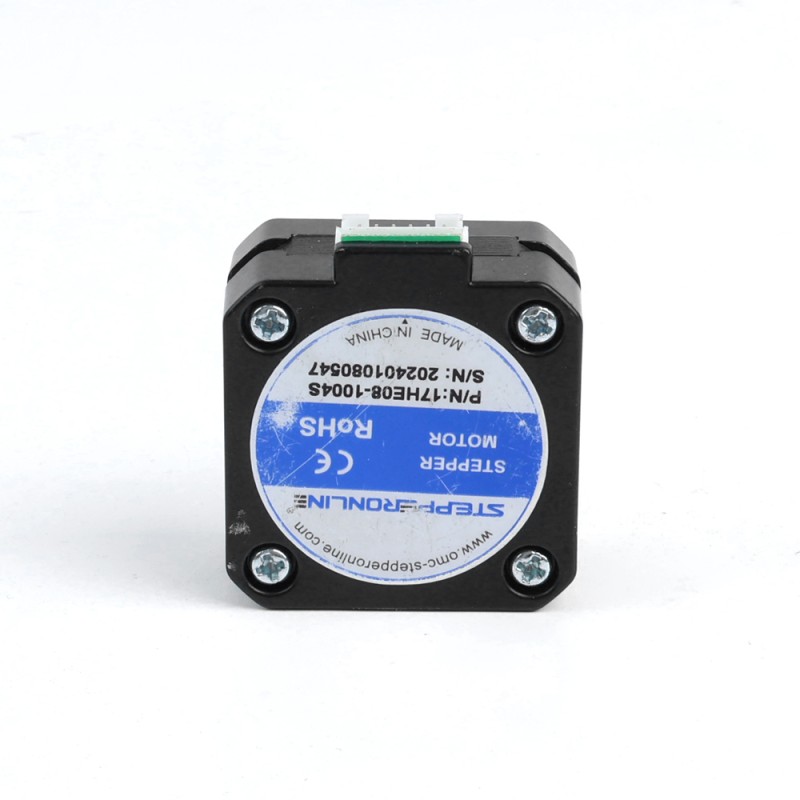

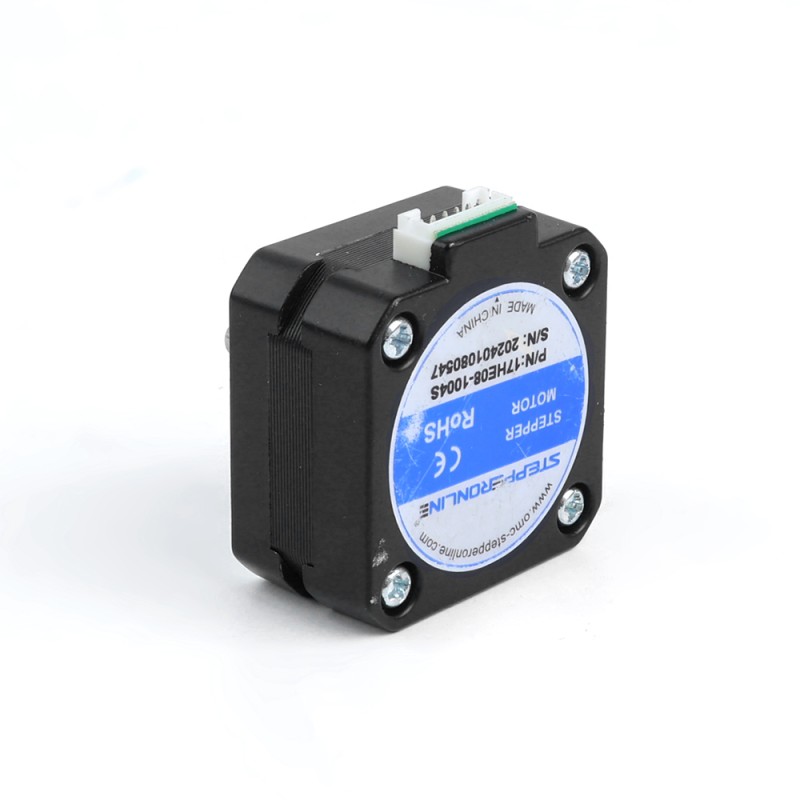

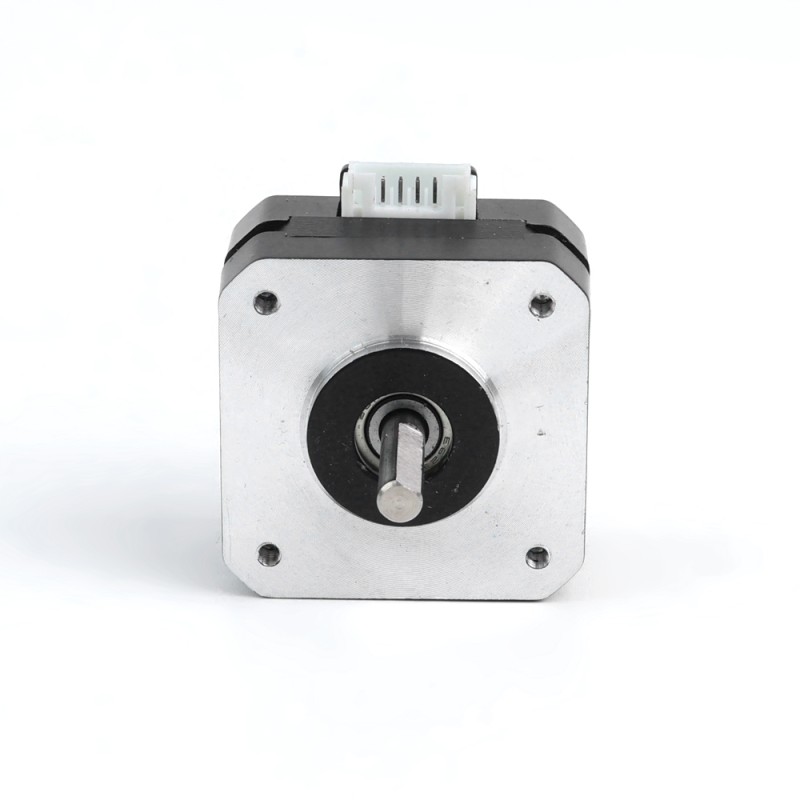

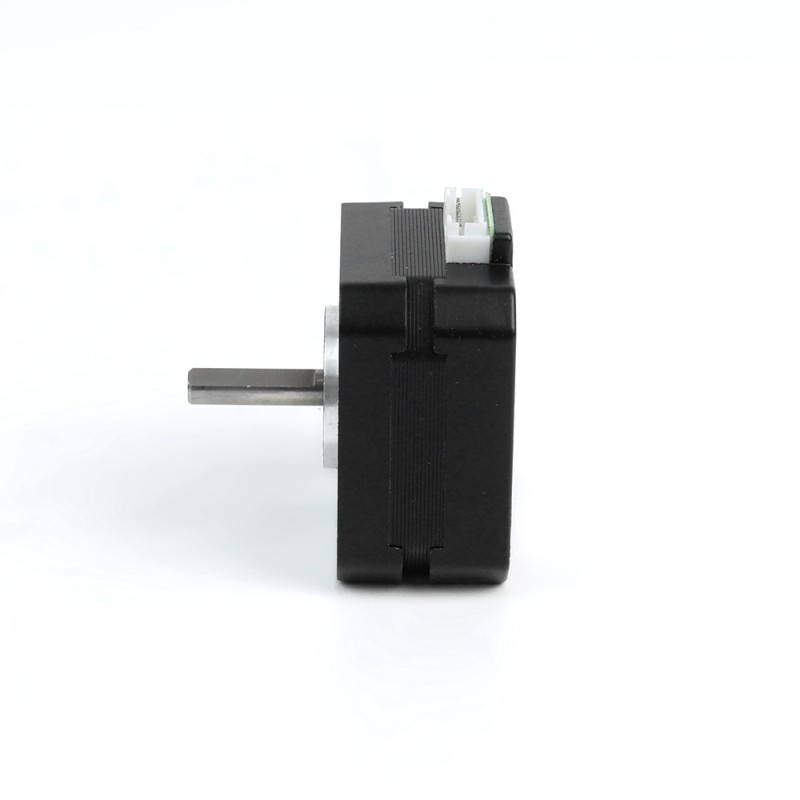

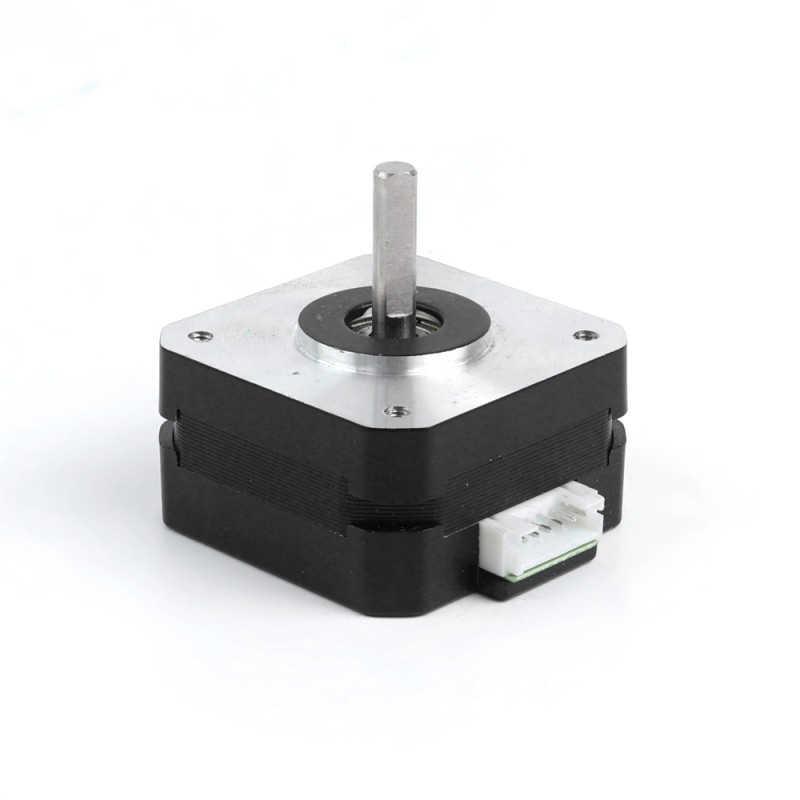

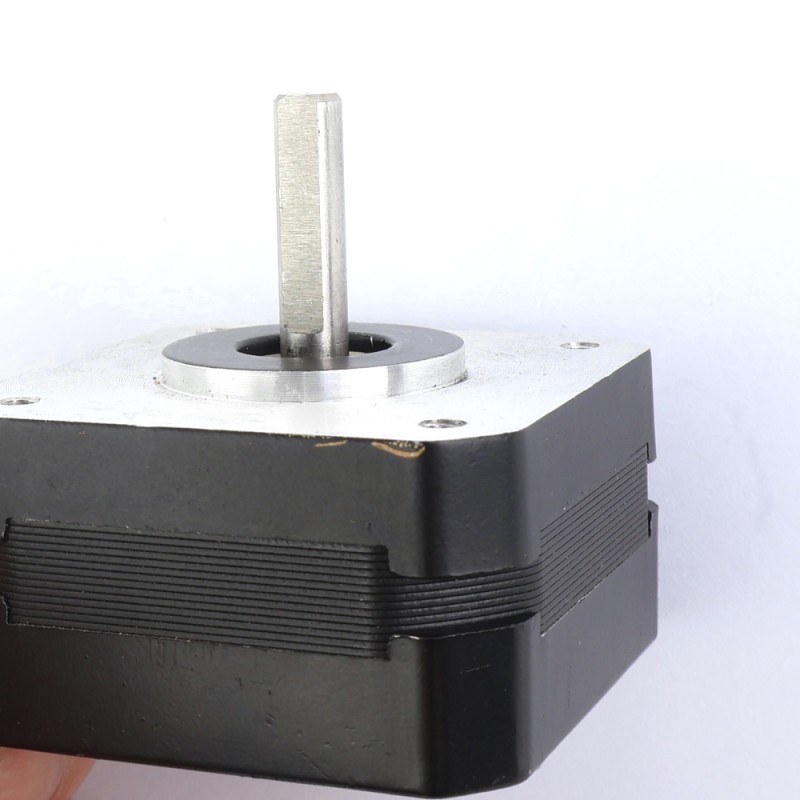

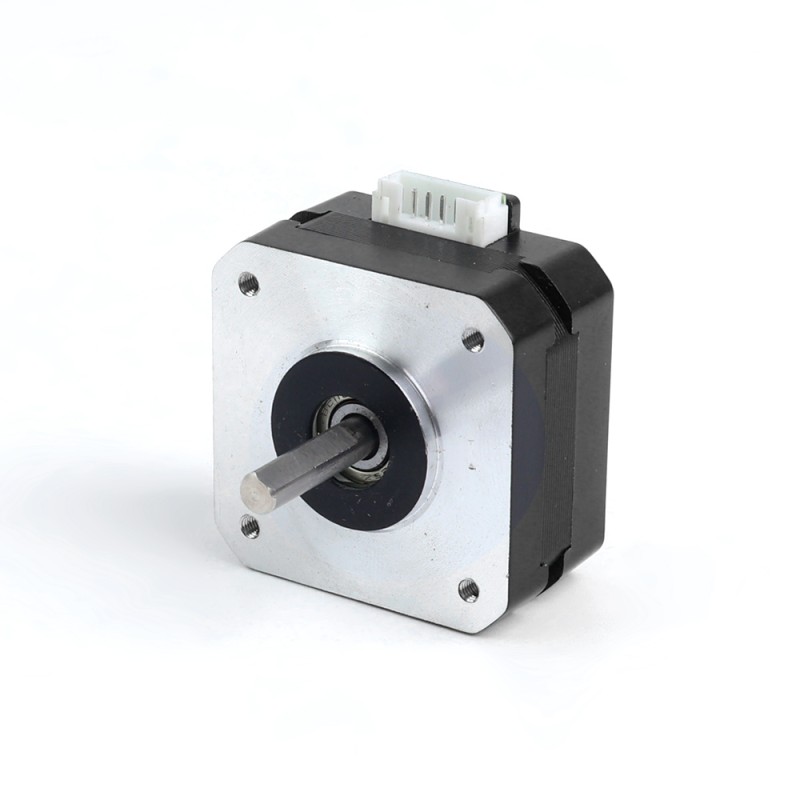

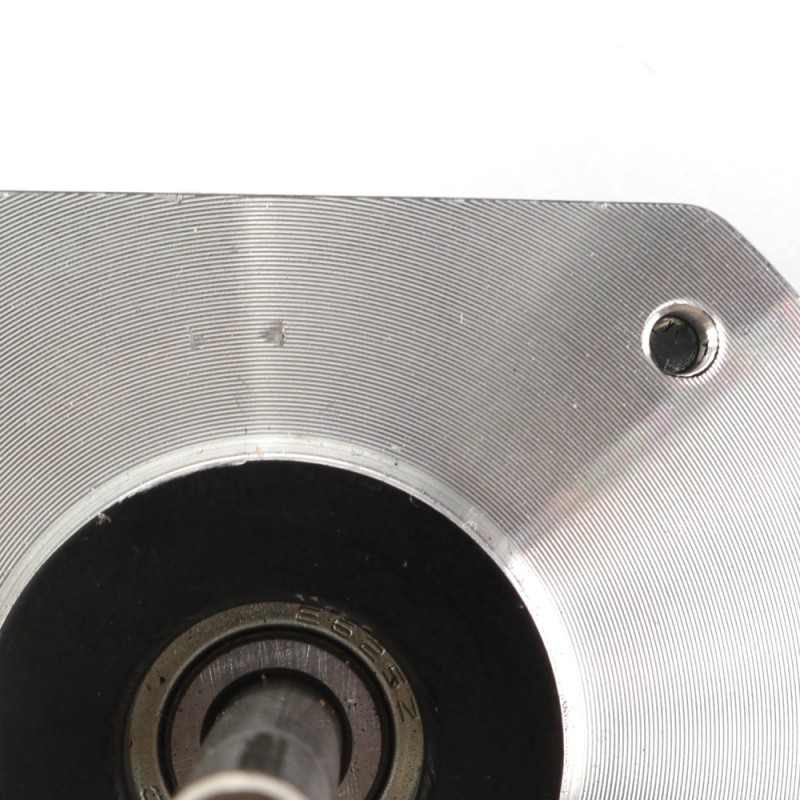

Used - Stock in China - E Series Nema 17 Bipolar 1.8deg 17Ncm(24.07oz.in) 1A 42x42x23mm 4 Wires

E Series Nema 17 Bipolar 1.8deg 17Ncm(24.07oz.in) 1A 42x42x23mm 4 Wires - 17HE08-1004S | StepperOnline CA
E Series Nema 17 Bipolar 1.8deg 17Ncm(24.07oz.in) 1A 42x42x23mm 4 Wires - 17HE08-1004S | StepperOnline CA
E Series Nema 17 Bipolar 1.8deg 17Ncm(24.07oz.in) 1A 42x42x23mm 4 Wires - 17HE08-1004S | StepperOnline CA
E Series Nema 17 Bipolar 1.8deg 17Ncm(24.07oz.in) 1A 42x42x23mm 4 Wires - 17HE08-1004S | StepperOnline CA
E Series Nema 17 Bipolar 1.8deg 17Ncm(24.07oz.in) 1A 42x42x23mm 4 Wires - 17HE08-1004S | StepperOnline CA
E Series Nema 17 Bipolar 1.8deg 17Ncm(24.07oz.in) 1A 42x42x23mm 4 Wires - 17HE08-1004S | StepperOnline CA
E Series Nema 17 Bipolar 1.8deg 17Ncm(24.07oz.in) 1A 42x42x23mm 4 Wires - 17HE08-1004S | StepperOnline CA
E Series Nema 17 Bipolar 1.8deg 17Ncm(24.07oz.in) 1A 42x42x23mm 4 Wires - 17HE08-1004S | StepperOnline CA
E Series Nema 17 Bipolar 1.8deg 17Ncm(24.07oz.in) 1A 42x42x23mm 4 Wires - 17HE08-1004S | StepperOnline CA
E Series Nema 17 Bipolar 1.8deg 17Ncm(24.07oz.in) 1A 42x42x23mm 4 Wires - 17HE08-1004S | StepperOnline CA
E Series Nema 17 Bipolar 1.8deg 17Ncm(24.07oz.in) 1A 42x42x23mm 4 Wires - 17HE08-1004S | StepperOnline CA
E Series Nema 17 Bipolar 1.8deg 17Ncm(24.07oz.in) 1A 42x42x23mm 4 Wires - 17HE08-1004S | StepperOnline CA
E Series Nema 17 Bipolar 1.8deg 17Ncm(24.07oz.in) 1A 42x42x23mm 4 Wires - 17HE08-1004S | StepperOnline CA
E Series Nema 17 Bipolar 1.8deg 17Ncm(24.07oz.in) 1A 42x42x23mm 4 Wires - 17HE08-1004S | StepperOnline CA
E Series Nema 17 Bipolar 1.8deg 17Ncm(24.07oz.in) 1A 42x42x23mm 4 Wires - 17HE08-1004S | StepperOnline CA
E Series Nema 17 Bipolar 1.8deg 17Ncm(24.07oz.in) 1A 42x42x23mm 4 Wires - 17HE08-1004S | StepperOnline CA
17HE08-1004S-USED
Frame Size(mm)Nema 17 (42 x 42)
Step Angle(deg.)1.8
Body Length(mm)23
Holding Torque(Ncm)17
Question

Downloads

17HE08-1004S.STEPSTEP · 1.14MBLog in to download17HE08-1004S_Full_Datasheet.pdfPDF · 261.9KB17HE08-1004S_Torque_Curve.pdfPDF · 238.02KB
Same series
ModelFrame Size(mm)Step Angle(deg.)Body Length(mm)Holding Torque(Ncm)PriceStock
17HE08-1004SNema 17 (42 x 42)1.82317C$6.42In stock
17HE08-1004S-USEDNema 17 (42 x 42)1.82317C$5.13In stock
17HE12-1204SNema 17 (42 x 42)1.83026C$6.58In stock
17HE15-1504SNema 17 (42 x 42)1.83842C$6.84In stock
17HE15-1504S-USEDNema 17 (42 x 42)1.83842C$5.47In stock
17HE19-2004SNema 17 (42 x 42)1.84855C$9.22In stock
17HE24-2104SNema 17 (42 x 42)1.86060C$13.01In stock
17HE24-2104S1Nema 17 (42 x 42)1.86060C$13.01In stock
Used - Stock in China - E Series Nema 17 Bipolar 1.8deg 17Ncm(24.07oz.in) 1A 42x42x23mm 4 Wires
Electrical Specification Manufacturer Part Number: 17HE08-1004S Motor Type: Bipolar Stepper Ste... Read More
0 reviews • Write a review
from Save -17%
C$5.13
C$6.18

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Electrical Specification

  • Manufacturer Part Number: 17HE08-1004S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8deg
  • Holding Torque: 17Ncm(24.07oz.in)
  • Rated Current/phase: 1.0A
  • Phase Resistance: 3.6ohms
  • Inductance: 4.0mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 23mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 20mm
  • D-cut Length: 17mm
  • Number of Leads: 4
  • Lead Length: 1000mm

Connection

A+
A-
B+
B-
Black
Blue
Green
Red
Product Type
Product Condition Used
Product Type Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar Bipolar
Has Torque/Thrust Curve? No
Holding Torque(Ncm) 17
Holding Torque(oz.in) 24.07
Inductance(mH) 4.0
Phase Resistance(ohms) 3.6
Rated Current(A) 1
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 23
Frame Size(mm) Nema 17 (42 x 42)
IP Rating 40
Lead Length(mm) 1000
No. of Lead 4
Output Shaft Type D
Product Series E
Shaft Diameter(mm) 5
Shaft Length(mm) 20
Single Shaft/Dual Shaft Single Shaft
