iSV57T-090-SALE
Shaft Diameter(mm)8
Shaft Length(mm)33
Encoder Resolution16bit
Body Length(mm)108
Question

Downloads

Same series
ModelShaft Diameter(mm)Shaft Length(mm)Encoder ResolutionBody Length(mm)PriceStock
IDS-C60AP-48V400W143017bit108.9C$237.21In stock
IDS-C60BP-48V400W143017bit145C$284.65In stock
IDS-EC60AP-48V400W143017bit110C$289.91In stock
iSV57T-090-SALE83316bit108C$88.55In stock
iSV57T-090S82116bit108C$111.87In stock
iSV57T-130S82116bit128C$118.64In stock
iSV57T-180-SALE83316bit148C$114.41In stock
iSV57T-180S82116bit148C$127.12In stock
CN On Sale - NEMA 23 Integrated Easy Servo Motor 90W 3000rpm 0.3Nm(42.49oz.in) 20-50VDC Brushless DC Servo Motor
iSV57T-090 integrated servo motor is a 57mm frame size brushless motor integrated with a 16bit encod... Read More
from Save -21%
C$88.55
C$111.87

Select a country to see live inventory

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

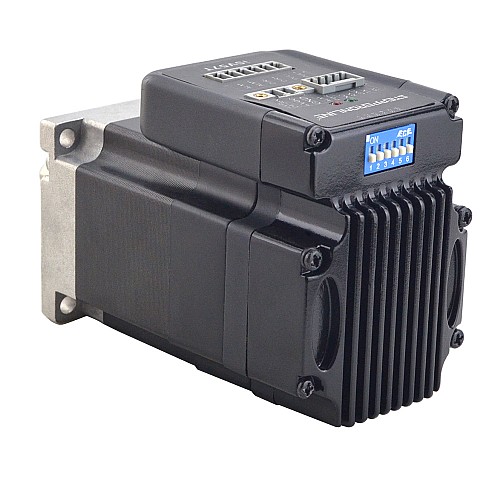

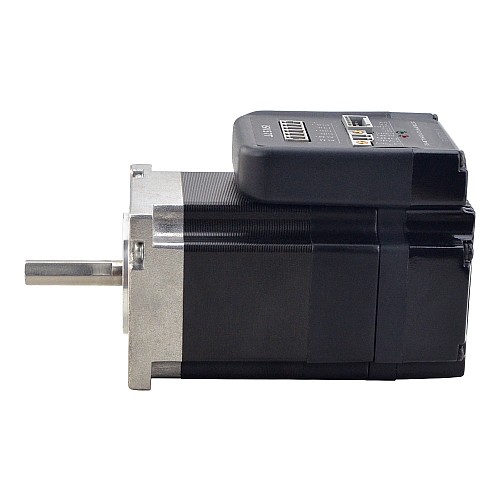

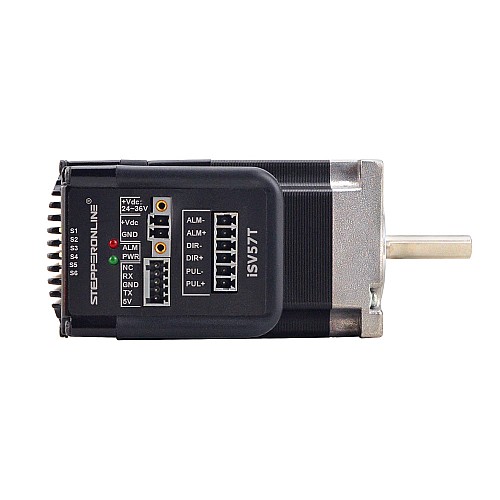

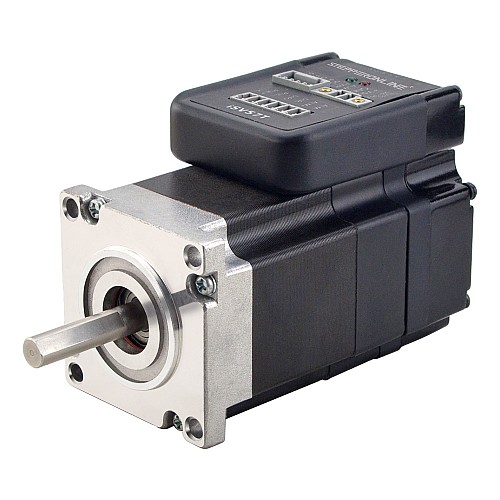

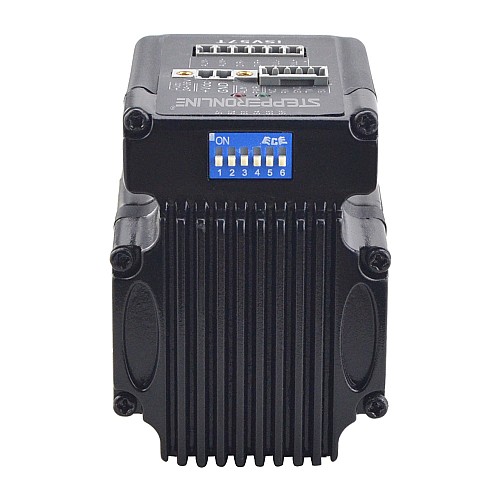

iSV57T-090 integrated servo motor is a 57mm frame size brushless motor integrated with a 16bit encoder and a servo drive. At very compact size and with all components integrated, the iSV57T-090 can save mounting space, eliminate encoder connection & motor wiring time, reduce interference, and cut/reduce cable and labor costs. Integrated compact size for saving mounting space & setup time, and reducing electrical interference.

Key Features

  • Input voltage 20-50VDC, output peak current 0-6A
  • Step & direction command input for position control
  • Compatible mounting size with stepper motor
  • Smooth motor movement and excellent respond time
  • Isolated control inputs of Pulse, Direction
  • In-position and fault outputs to external motion controllers for complete system controls
  • Over voltage, over-current, and position-error protection

Electrical Specifications

  • Manufacturer Part Number: iSV57T-090
  • Rated Power(W): 90W
  • Input Voltage: +20~50VDC(Typical 36VDC)
  • Rated Torque(Nm/oz.in): 0.3/42.49(Nm/oz.in)
  • Peak Torque(Nm/oz.in): 0.8/113.29(Nm/oz.in)
  • Rated Speed(rpm): 3000rpm
  • Peak Speed(rpm): 4000rpm
  • Output Peak Current: 0~6A
  • Logic Signal Current: 7~16mA(Typical 10mA)
  • Pulse Input Frequency: 0~300kHz
  • Pulse Voltage: 5V(Connect a 2K ohm resistor in series, if it is 24V)
  • Isolation Resistance: 100MΩ

Physical Specifications

  • Frame Size: 57 x 57mm
  • Body Length: 108mm
  • Shaft Diameter: 8mm
  • D-cut Shaft Length: 27mm
  • Shaft Length: 33mm
  • Weight: 0.95kg

Operating Environment and other Specifications(Tj = 25℃/77℉):

  • Cooling: Natural Cooling or Forced cooling
  • Environment: Avoid dust, oil fog and corrosive gases
  • Ambient Temperature: 0℃ - 40℃
  • Humidity: 40%RH - 90%RH
  • Operating Temperature(Heat Sink): 70℃ Max
  • Vibration: 10-50Hz / 0.15mm
  • Storage Temperature: -20℃ - 65℃

Packing List

  • 1 x iSV57T-090
  • 1 x CABLE-PC-i(PJ): RS232 Cable
Product Type
Product Type Integrated Servo Motor
Electrical Specification
Control Modes Pulse Mode
Encoder Resolution 16bit
Encoder Type Magnetic Incremental
Input Voltage(V) 20 - 50VDC
Logic Signal Current(mA) 7 - 16
Output Peak Current(A) 0~6
Peak Speed(rpm) 4000
Peak Torque(Nm) 0.8
Pulse Input Frequency(kHz) 0~300
Pulse Voltage(V) 5
Rated Power(W) 90
Rated Speed(rpm) 3000
Rated Torque(Nm) 0.3
With Brake No
Physical Specification
Aviation Plug or Not No
Body Length(mm) 108
Frame Size(mm) 57 x 57
Integrated or Not Yes
IP Rating 20
Shaft Diameter(mm) 8
Shaft Length(mm) 33
