Name: YS Series 1 Axis 9.00Nm(1274.5oz.in) Nema 34 Closed Loop Stepper Kit V2.0
Brand: STEPPERONLINE
SKU: 1-CL86Y-S90-V20
Price: 107.40 CAD
Availability: InStock

YS Series 1 Axis 9.00Nm(1274.5oz.in) Nema 34 Closed Loop Stepper Kit V2.0 - 1-CL86Y-S90-V20 | StepperOnline CA

1-CL86Y-S90-V20

Output Shaft TypeKeyway

Shaft Diameter(mm)14

Shaft Length(mm)37

Encoder Resolution1000PPR

Question

Downloads

Y_Series_Stepper_Driver_Debug_Software_7.4.zipZIP · 31.1MB CL86Y-V20.STEPSTEP · 20.11MBLog in to download CL86Y_V2.0_pulse_stepper_driver_manual_V1.0.pdfPDF · 858.67KB 34HS46-6004D-E1000.STEPSTEP · 8.58MBLog in to download 34HS46-6004D-E1000_Full_Datasheet.pdfPDF · 152.03KB 34HS46-6004D-E1000_Torque_Curve.pdfPDF · 95.75KB CE2-M2-18.pdfPDF · 115.55KB

Same series

Model	Output Shaft Type	Shaft Diameter(mm)	Shaft Length(mm)	Encoder Resolution	Price	Stock
1-ACLYS120	Keyway	14	37	1000PPR	C$151.29	In stock
1-ACLYS120-1M5	Keyway	14	37	1000PPR	C$144.87	In stock
1-ACLYS65	Keyway	14	37	1000PPR	C$164.68	In stock
1-ACLYS65-1M5	Keyway	14	37	1000PPR	C$130.47	In stock
1-CL42T-P05-V41	D	5	24	1000PPR	C$112.23	In stock
1-CL42T-P07-V41	D	5	24	1000PPR	C$115.12	In stock
1-CL42T-S01-V41	D	5	20	1000PPR	C$67.63	In stock
1-CL42T-S04-V41	D	5	24	1000PPR	C$69.66	In stock
1-CL42T-S05-V41	D	5	24	1000PPR	C$70.85	In stock
1-CL42T-S08-V41	D	5	24	1000PPR	C$72.37	In stock
1-CL57T-P12-V41	D	8	21	1000PPR	C$120.84	In stock
1-CL57T-P20-V41	D	8	21	1000PPR	C$125.57	In stock
1-CL57T-P30-V41	D	10	21	1000PPR	C$136.29	In stock
1-CL57T-S12-V41	D	8	21	1000PPR	C$80.94	In stock
1-CL57T-S20-V41	D	8	21	1000PPR	C$85.06	In stock
1-CL57T-S30-V41	D	10	21	1000PPR	C$90.92	In stock
1-CL57T-S30A-V41	D	8	21	1000PPR	C$93.29	In stock
1-CL57T-S40-V41	D	10	21	1000PPR	C$94.24	In stock
1-CL57TE-S12	D	8	21	1000PPR	C$81.52	In stock
1-CL57TE-S20	D	8	21	1000PPR	C$85.93	In stock
1-CL57TE-S30	D	10	21	1000PPR	C$92.03	In stock
1-CL57TE-S30A	D	8	21	1000PPR	C$94.74	In stock
1-CL57TE-S40	D	10	21	1000PPR	C$95.76	In stock
1-CL57Y-S12-V20	D	8	21	1000PPR	C$69.24	In stock
1-CL57Y-S20-V20	D	8	21	1000PPR	C$72.98	In stock
1-CL57Y-S30	D	8	22	1000PPR	C$112.98	In stock
1-CL57Y-S30-1M5	D	8	21	1000PPR	C$70.85	In stock
1-CL57Y-S30-1M5-V20	D	8	21	1000PPR	C$70.53	In stock
1-CL57Y-S30-V20	D	8	22	1000PPR	C$77.01	In stock
1-CL57Y-S30A-V20	D	8	21	1000PPR	C$80.46	In stock

View all in category

YS Series 1 Axis 9.00Nm(1274.5oz.in) Nema 34 Closed Loop Stepper Kit V2.0

This CNC kit includes: 1 x 34HS46-6004D-E1000: Nema 34 Closed Loop Stepper Motor 9.00Nm(1274.50oz.in... Read More

0 reviews • Write a review

from

C$107.40

5 + C$104.26

10 + C$101.30

50 + C$98.51

100 + C$95.86

Click country for real-time stock

Ships from

China

United States (+C$20.21)

Qty

Add to Cart

Add to Wish List Compare this Product

Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

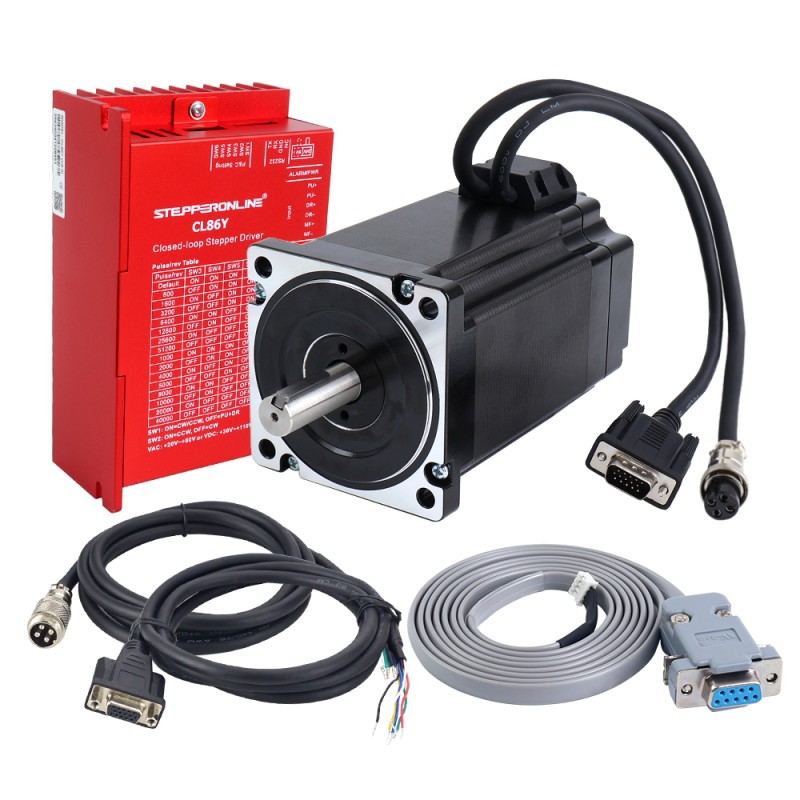

This CNC kit includes:

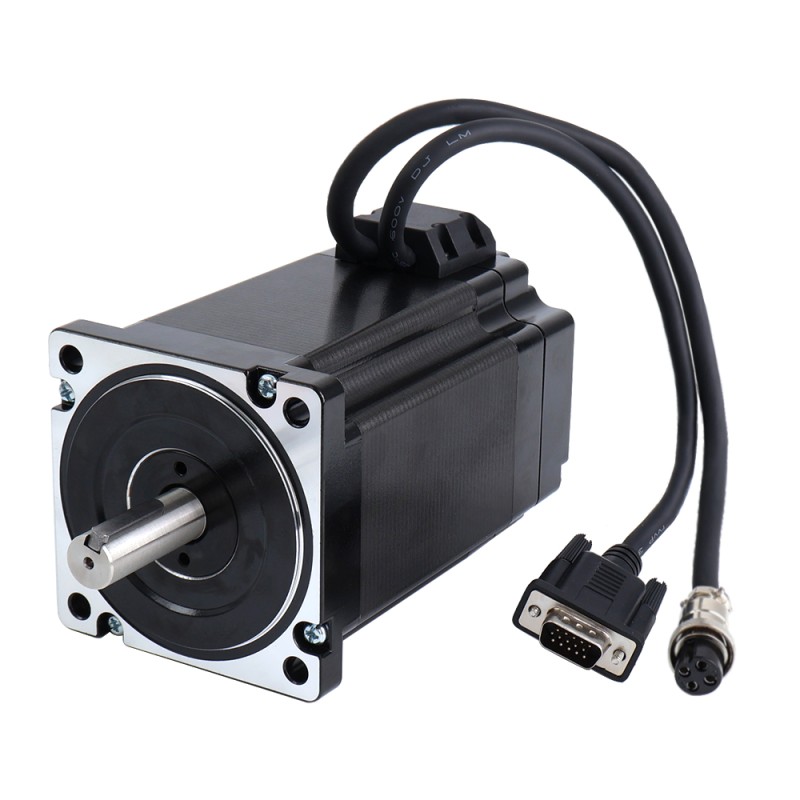

1 x 34HS46-6004D-E1000: Nema 34 Closed Loop Stepper Motor 9.00Nm(1274.50oz.in) Encoder 1000PPR(4000CPR)

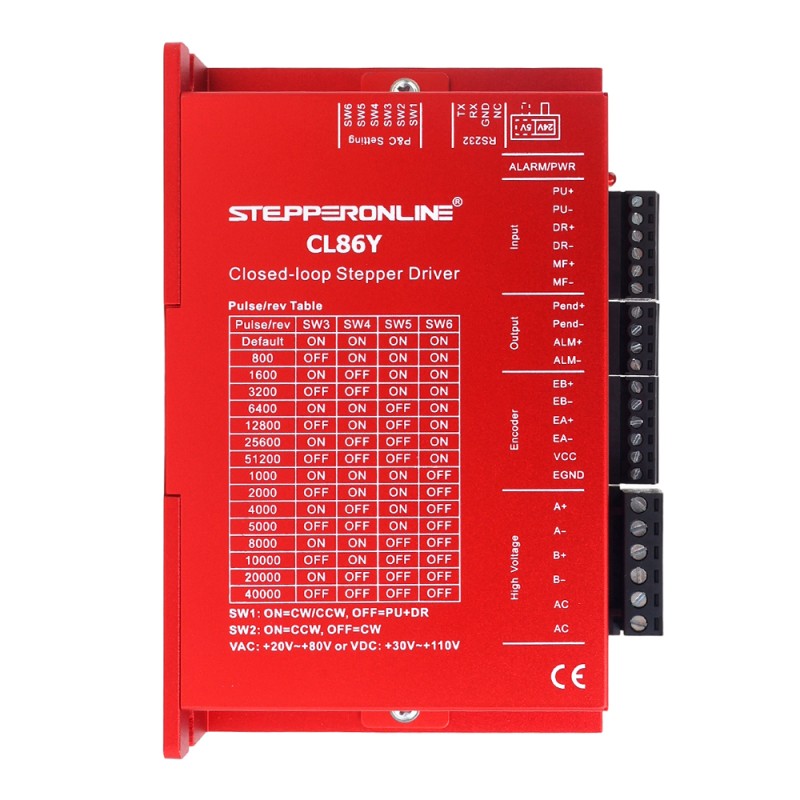

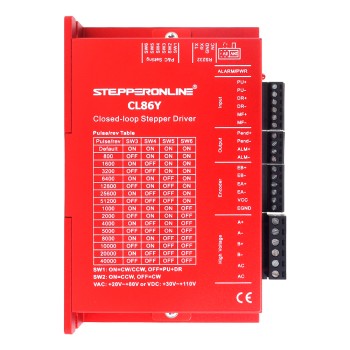

1 x CL86Y-V20: Y Series Closed Loop Stepper Driver V2.0 0-8.5A 20-80VAC/30-110VDC for Nema 34 Stepper Motor

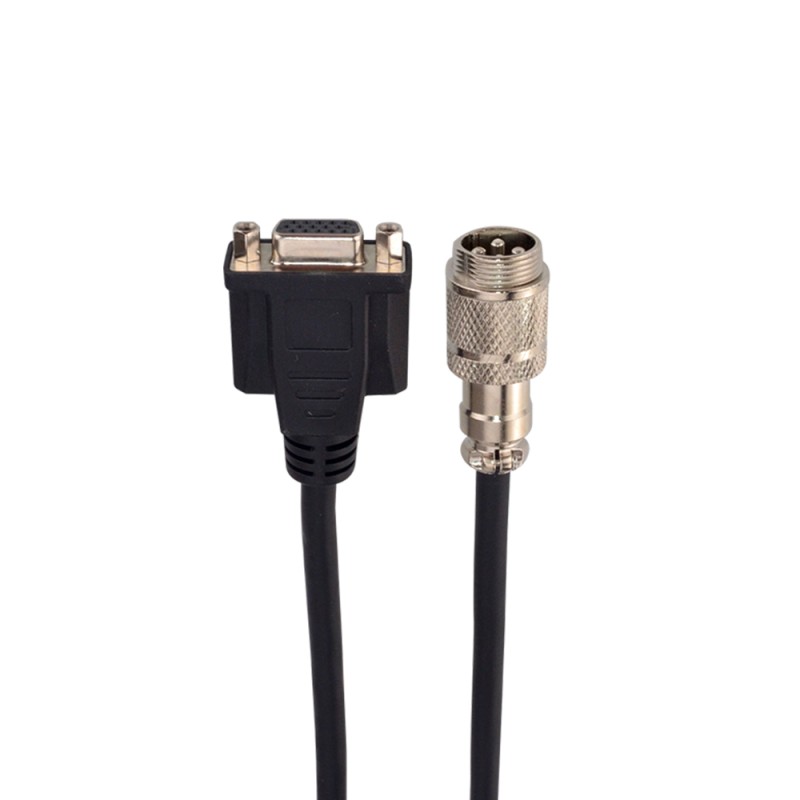

1 x CE2-M2-18: 1.7m(67") Motor AWG18 and Encoder Extension Cable
1 x CABLE-PC-2: RS232 debugging cable

Motor Specification

Part Number: 34HS46-6004D-E1000
Number of phase: 2
Holding Torque: 9.00Nm(1274.50oz.in)
Rated Current/phase: 6.0A
Phase Resistance: 0.4ohms
Inductance: 3.6mH ± 20%(1KHz)
Frame Size: 86 x 86mm
Body Length: 137mm
Shaft Diameter: Φ14mm
Shaft Length: 37mm
Keyway Shaft Length: 25mm
Cable Length: 300mm
Insulation Class: B 130°C[266°F]

Encoder Specification

Output Circuit Type: Differential type
Encoder Type: Optical Incremental
Encoder Resolution: 1000PPR(4000CPR)
Output Signal Channels: 2 channels
Minimum Supply Voltage: 4.5V
Maximum Supply Voltage: 5V
Output Current: 25mA
Output High Voltage: 4.5V
Output Low Voltage: 4.2-4.3V
Output Frequency Max: 60kHZ

Driver Specification

Output Peak Current: 0~8.5A（0~6RMS）
Input Voltage: 20~80VAC/30~110VDC(Typical 48/60VDC)
Logic Input Current: 7~20mA
Pulse Input Frequency: 0~200kHz
Pulse Width: 2.5μS
Isolation Resistance: 500MΩ

Motor and Encoder Connection

PIN	1	2	3	4
Motor	A+	A-	B+	B-

PIN	2	3	1	13	11	12
Encoder	VCC	EGND	EA+	EA-	EB+	EB-

Motor Extension Cable Connection

PIN	1	2	3	4
Color	Black	Green	Red	Blue

Encoder Extension Cable Connection

PIN	2	3	1	13	11	12
Color	Red	White	Black	Blue	Yellow	Green

Product Type
Product Type	Closed Loop Stepper Kit
Electrical Specification
Encoder Resolution	1000PPR
Encoder Type	Optical Incremental
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	900
Holding Torque(oz.in)	1274.5
Inductance(mH)	3.6
Input Voltage Reference(V)	24 - 80AC / 36 - 110DC
Number of Axes	1
Output Circuit Type	Differential type
Output Signal Channels	2
Phase Resistance(ohms)	0.40
Rated Current(A)	6.0
Physical Specification
Cable Length(mm)	2000
Frame Size(mm)	Nema 34 (86 x 86)
Output Shaft Type	Keyway
Power Supply	No
Product Series	YS Series
Shaft Diameter(mm)	14
Shaft Length(mm)	37
