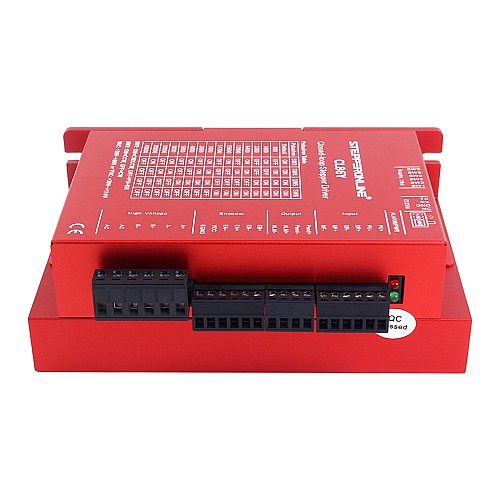

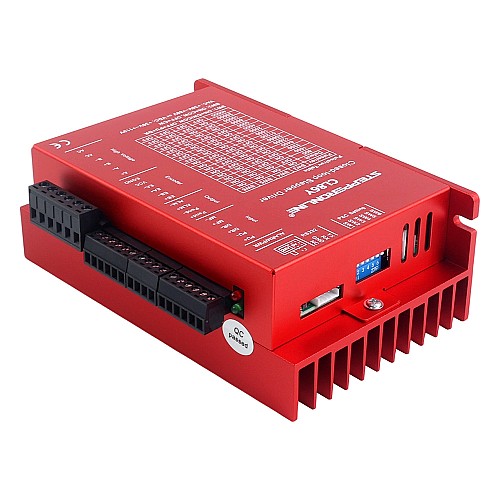

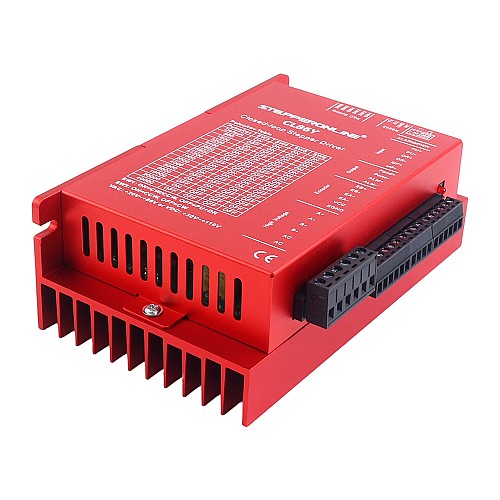

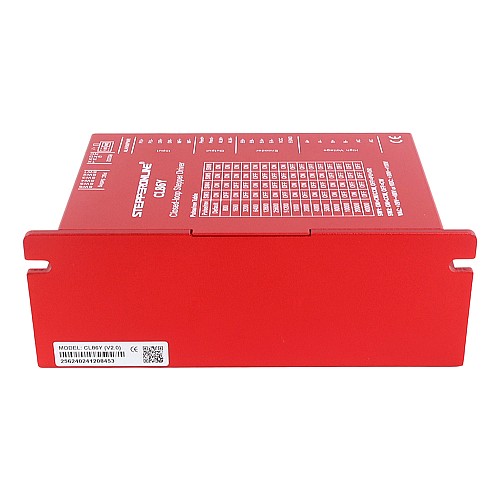

Y Series Closed Loop Stepper Driver V2.0 0-8.5A 20-80VAC/30-110VDC for Nema 34 Stepper Motor

The CL86Y-V20 is an upgraded version of the CL86Y, featuring a 5V/24V logic voltage selector and an RS232 debugging port replacing the USB port. This Y Series closed-loop stepper driver supports 0–8.5A and operates at 20–80VAC / 30–110VDC, designed for Nema 34 stepper motors.
Utilizing next-generation 32-bit DSP control and power angle vector control technology, it achieves speeds exceeding 3000rpm. Compared to standard open-loop drivers, it significantly reduces high-speed torque decay, enhancing motor performance and torque utilization, which improves machining efficiency and accuracy. Its load-based current control effectively lowers motor heating, extending motor lifespan. The built-in alarm output facilitates easy monitoring and control by the host system, while the position error alarm ensures safe operation of the equipment.

Key Features

• Free RS232 debugging cable included
• 5V/24V logic voltage selector
• More stable 3.3V pulse signal reception
• A new generation of 32-bit DSP control technology, cost-effective, stable and excellent vibration performance
• Voltage input range: AC20V-80V/DC30~110V, a total of 16 subdivisions
• The highest impulse response frequency is up to 200KHz
• The torque attenuation is small and the speed can reach 3000rpm
• Built-in in place and alarm output for easy detection and control
• Intelligently regulates current, reduces vibration, noise and heat, and increases efficiency by 35%

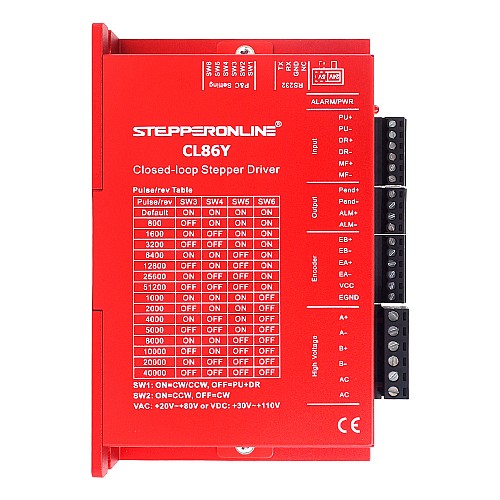

• With single and double pulse selection function, the factory default is: pulse + direction control
• Excellent high-speed performance and rigidity, the perfect combination of servo and stepping advantages

Electrical Specifications

• Output Peak Current: 0~8.5A(0~6.0RMS)
• Input Voltage: 20~80VAC/30~110VDC(Typical 48/60VDC)
• Logic Input Current: 7~20mA
• Pulse Input Frequency: 0~200kHz
• Pulse Width: 2.5μS
• Isolation Resistance: 500MΩ

Operating Environment and other Specifications(Tj = 25℃/77℉)

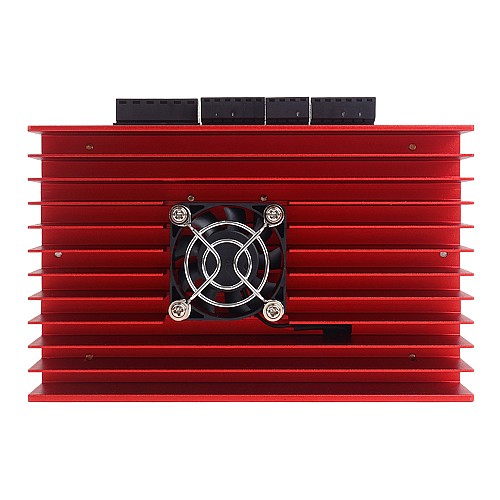

• Cooling: Natural Cooling or Forced cooling
• Environment: Avoid dust, oil fog and corrosive gases
• Ambient Temperature: 0℃ － 65℃
• Humidity: 40%RH－90%RH
• Operating Temperature: 0℃ － 50℃
• Vibration: 10-50Hz / 0.15mm
• Storage Temperature: -20℃ － 65℃
• Weight: Approx.280g(9.9oz)

Recommended Driving Voltages for Stepper Motors

Packing List

• 1 x CL86Y-V20 Driver
• 1 x CABLE-PC-2 (RS232 debugging cable)
