CNC Spindle Motor Air Cooled 220V 2.2KW 24000RPM 400Hz ER20 Collet

0 reviews - Write a review

C$182.26

5 + C$176.93

10 + C$171.92

50 + C$167.17

100 + C$162.68

In Stock: 10000
Model: GDZL80x73-2.2B4
Gross Weight: 5.01kg
Certificated: ISO, CE

Sold: 29

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

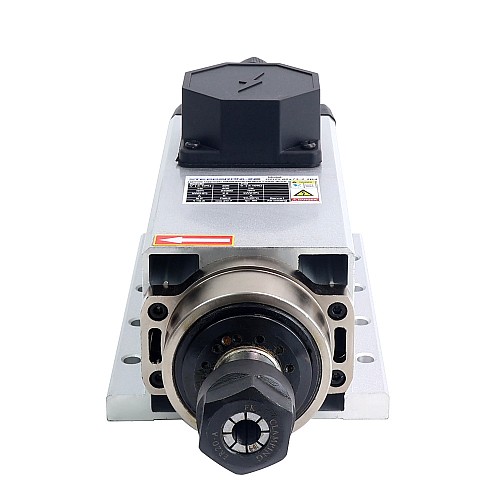

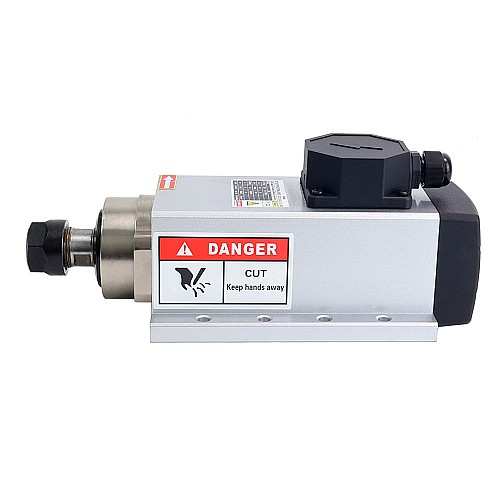

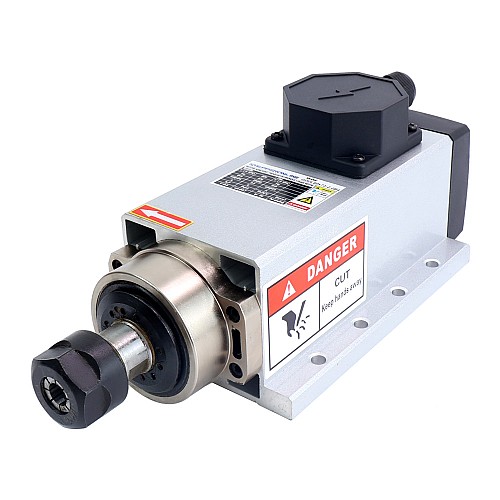

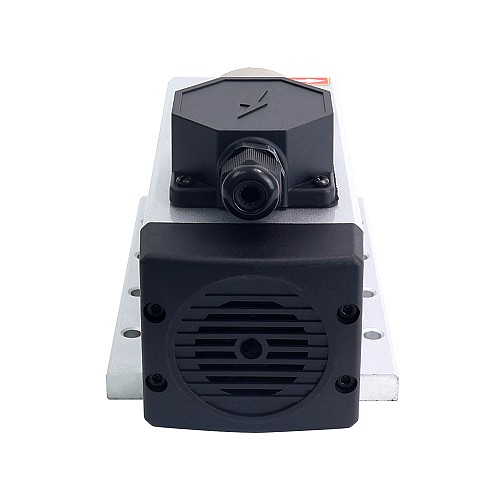

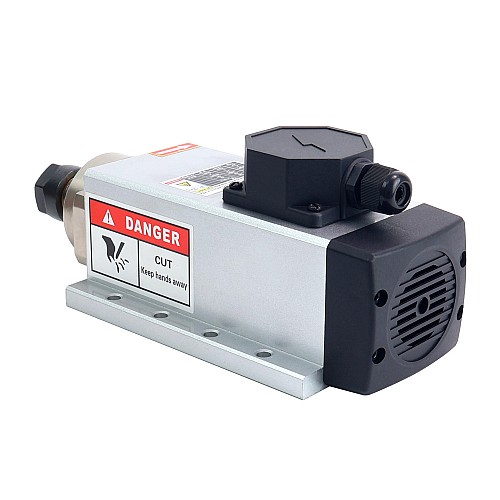

This air cooled 2.2KW square spindle motor,comes with 24000rpm high speed, ER20 collet, works at 3 phase 220V 400Hz, has dimension of 193.5x80x73mm and flange for easy installation. It is designed for applications that require motors to operate accurately at extremely high speeds and widely applied in engraving machines, cutting plotter, textile machine, 3D printer, medical instruments, robot and cnc machine, etc.

Specification

Manufacturer Part Number: GDZL80x73-2.2B4
Rated Torque: 0.87Nm(123.2oz.in)
Material: Stainless steel
Power: 2.2KW
Voltage: 220VAC
Current: 6.0A
Frequency: 0 - 400Hz
Speed: 0 - 24000RPM
Cooling: Air Cooled
Bearing Lubrication: Grease
Collet size: ER20 Collet
Weight: 4.71kg
Size: 193.5 x 80 x 73mm(Length: 193.5mm, Width: 80mm, Height: 73mm)

Operating Environment
Cooling Method	Air cooled
Product Type
Product Type	Spindle Motor
Spindle Motor Specification
Bearing Lubrication	Grease
Body Length(mm)	193.5
Collet Size	ER20
Material	Stainless steel
Power(Kw)	2.2
Shape	Square
Voltage(VAC)	220
Electrical Specification
Current(A)	6.0
Frequency(Hz)	0 - 400
Speed(rpm)	0 - 24000
Physical Specification
Bearings	4
Inventory Method	Dedicated Inventory
Weight(Kg)	4.714
