YS Series 1 Axis Closed Loop Stepper CNC Kit V2.0 4.00Nm(566.45oz.in) Nema 24 Motor & Driver
This CNC kit includes:1 x 24HS40-5004D-E1000: Nema 24 Closed Loop Stepper Motor 4.00Nm(566.45oz.in) ... Read More
0 reviews • Write a review
from
C$81.33
5 + C$78.95
10 + C$76.72
50 + C$74.60
100 + C$72.60

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

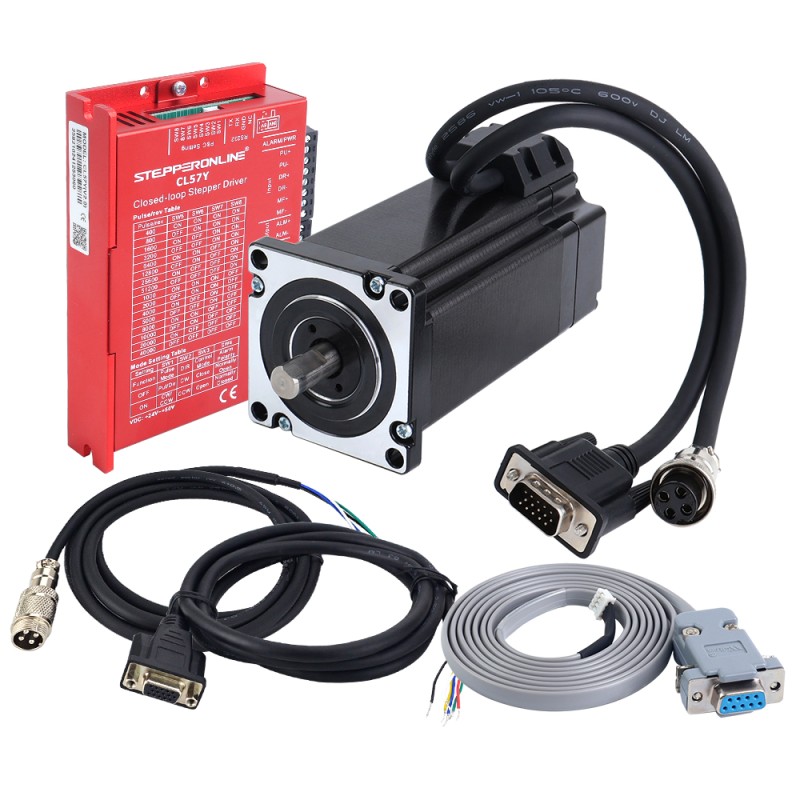

This CNC kit includes:

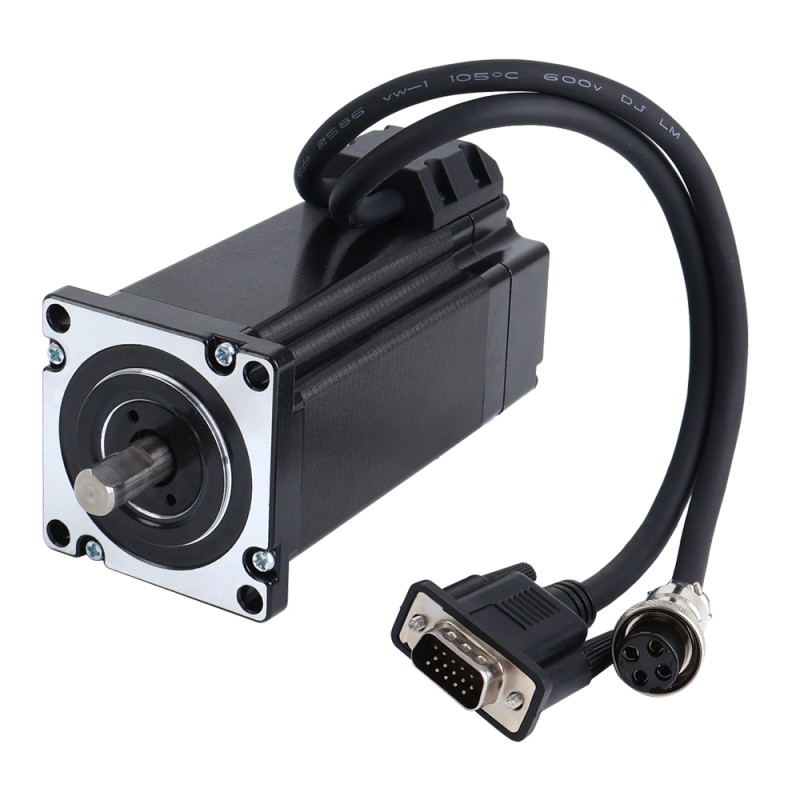

  • 1 x 24HS40-5004D-E1000: Nema 24 Closed Loop Stepper Motor 4.00Nm(566.45oz.in) Encoder 1000PPR(4000CPR)

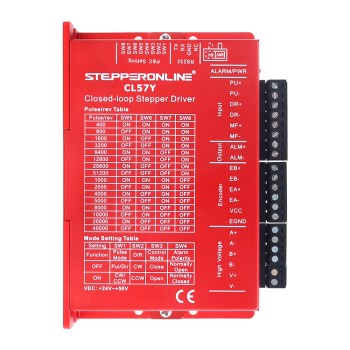

  • 1 x CL57Y-V20: Y Series V2.0 Closed Loop Stepper Driver 0-7.0A 24-50VDC for Nema 17, 23, 24 Stepper Motor

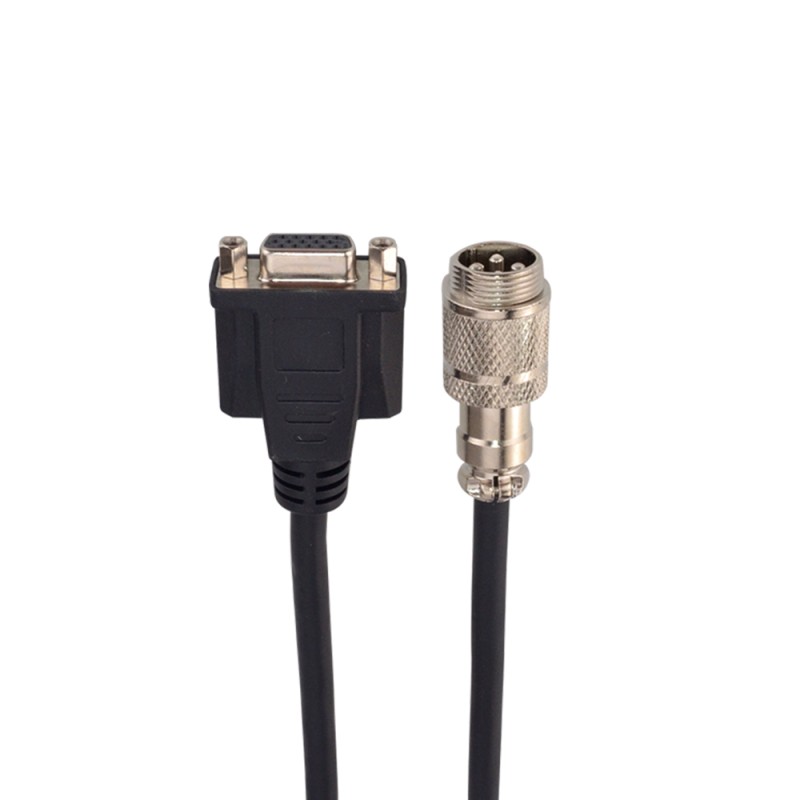

  • 1 x CE2-M2-20: 1.7m(67") Motor AWG20 and Encoder Extension Cable
  • 1 x CABLE-PC-2: RS232 debugging cable

Motor Specification

  • Part Number: 24HS40-5004D-E1000
  • Number of phase: 2
  • Holding Torque: 4.00Nm(566.45oz.in)
  • Rated Current/phase: 5.0A
  • Phase Resistance: 0.6ohms
  • Inductance: 2.6mH ± 20%(1KHz)
  • Frame Size: 60 x 60mm
  • Body Length: 122mm
  • Shaft Diameter: Φ10mm
  • Shaft Length: 21mm
  • D-Cut Shaft Length: 15mm
  • Cable Length: 300mm
  • Insulation Class: B 130°C[266°F]

Encoder Specification

  • Output Circuit Type: Differential type
  • Encoder Type: Optical Incremental
  • Encoder Resolution: 1000PPR(4000CPR)
  • Output Signal Channels: 2 channels
  • Minimum Supply Voltage: 4.5V
  • Maximum Supply Voltage: 5V
  • Output Current: 25mA
  • Output High Voltage: 4.5V
  • Output Low Voltage: 4.2-4.3V
  • Output Frequency Max: 60kHZ

Driver Specification

  • Output Peak Current: 0~7A(0~5.6RMS)
  • Input Voltage: +24~50VDC
  • Logic Input Current: 1~7.5mA
  • Pulse Input Frequency: 0~200kHz
  • Isulation Resistance: 10MΩ

Motor and Encoder Connection

PIN
1
2
3
4
Motor
A+
A-
B+
B-

PIN
2
3
1
13
11
12
Encoder
VCC
EGND
EA+
EA-
EB+
EB-

Motor Extension Cable Connection

PIN
1
2
3
4
Color
Black
Green
Red
Blue

Encoder Extension Cable Connection

PIN
2
3
1
13
11
12
Color
Red
White
Black
Blue
Yellow
Green
Product Type
Product Type Closed Loop Stepper Kit
Electrical Specification
Encoder Resolution 1000PPR
Encoder Type Optical Incremental
Has Torque/Thrust Curve? Yes
Holding Torque(Ncm) 400
Holding Torque(oz.in) 566.45
Inductance(mH) 2.6
Input Voltage Reference(V) 24 - 48DC
Number of Axes 1
Output Circuit Type Differential type
Output Signal Channels 2
Phase Resistance(ohms) 0.6
Rated Current(A) 5.0
Physical Specification
Cable Length(mm) 2000
Frame Size(mm) Nema 24 (60 x 60)
Output Shaft Type D
Power Supply No
Product Series YS Series
Shaft Diameter(mm) 10
Shaft Length(mm) 21

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
1.7m(67") AWG20 Motor and Encoder Extension Cable Kit for Nema 23 and 24 Closed Loop Stepper Motors
1.7m(67") AWG20 Motor and Encoder Extension Cable Kit for Nema 23 and 24 Closed Loop Stepper Motors
1.7m(67") Motor Extension Cable and 1.7m(67") Encoder Extension Cable for Nema 23 and 24 Closed Loop Stepper Motors. This Cable Kit included:1 x 1...
from
C$15.75
Add to Cart
Add to Wish List Compare this Product
Quickview

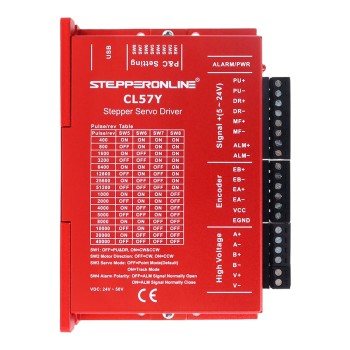

Y Series Closed Loop Stepper Driver 0-7.0A 24-50VDC for Nema 17, 23, 24 Stepper Motor
Y Series Closed Loop Stepper Driver 0-7.0A 24-50VDC for Nema 17, 23, 24 Stepper Motor
This is Y series closed loop stepper driver 0-7.0A 24-50VDC for Nema 17, 23, 24 stepper motor. Using a new generation of 32-bit DSP control technology..
from
C$44.07
Add to Cart
Add to Wish List Compare this Product
Quickview
S Series Nema 24 Closed Loop Stepper Motor 4.0Nm(566.45oz.in) Encoder 1000PPR(4000CPR)
S Series Nema 24 Closed Loop Stepper Motor 4.0Nm(566.45oz.in) Encoder 1000PPR(4000CPR)
Electrical Specification Manufacturer Part Number: 24HS40-5004D-E1000 Number of phase: 2 Step Angle: 1.8deg Holding Torque: 4.0Nm(566.45oz.in) Rated..
from
C$53.46
Add to Cart
Add to Wish List Compare this Product
Quickview

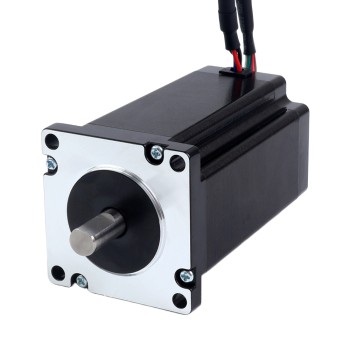

Nema 24 Closed Loop Stepper Motor 4.00Nm(566.45oz.in) with Magnetic Encoder 1000PPR(4000CPR)
