Used - Nema 23 Bipolar 1.8deg 1.9Nm(269.06oz.in) 2.8A 57x57x76mm 4 Wires

Nema 23 Bipolar 1.8deg 1.9Nm(269.06oz.in) 2.8A 57x57x76mm 4 Wires - 23HS30-2804S | StepperOnline CA

Used -58 %

Used - Nema 23 Bipolar 1.8deg 1.9Nm(269.06oz.in) 2.8A 57x57x76mm 4 Wires

0 reviews - Write a review

C$27.02

C$11.34

In Stock: 10000
Model: 23HS30-2804S-USED
Gross Weight: 1.20kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 0

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

What is Used-Product Mean?

STEPPERONLINE Used Products: Second-sale items may have minor defects like surface blemishes, modified cables or damaged packaging. Our technical team conducts strict quality checks to guarantee they work perfectly.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

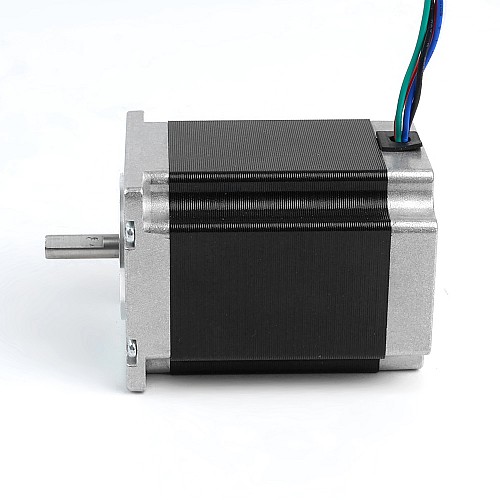

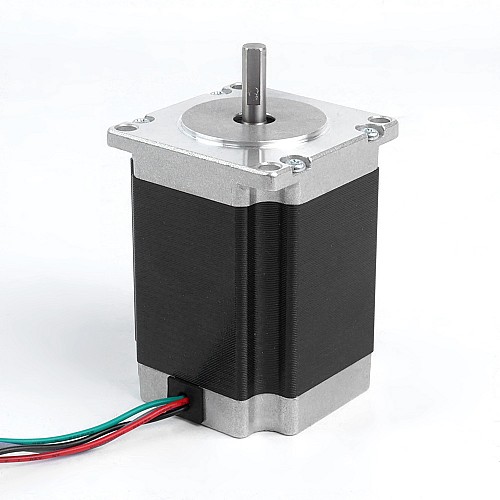

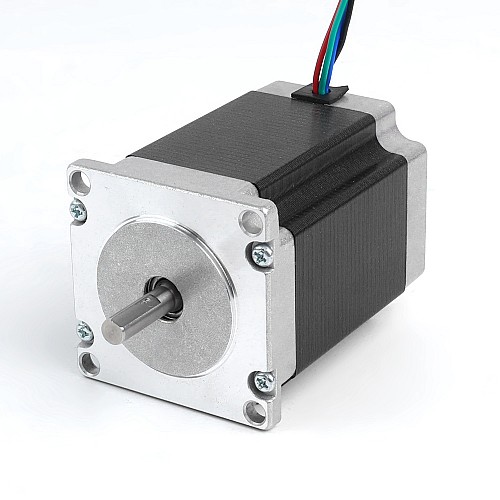

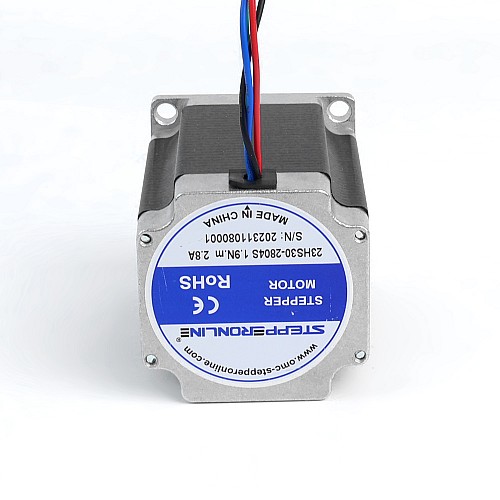

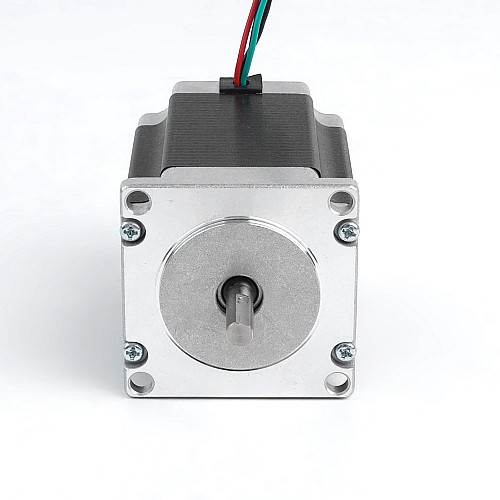

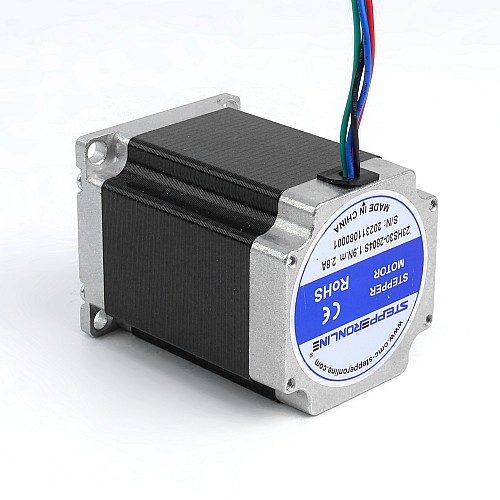

This is one of the most popular Nema 23 stepper motor, it with step angle 1.8deg and size 57x57x76mm. It has 4 wires, each phase draws 2.8A, with holding torque 1.9Nm(269.06oz.in).

Electrical Specification

Manufacturer Part Number: 23HS30-2804S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 1.9Nm(269.06oz.in)
Rated Current/phase: 2.8A
Phase Resistance: 1.13ohms
Inductance: 4.8mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 57 x 57mm
Body Length: 76mm
Shaft Diameter: Φ6.35mm
Shaft Length: 21mm
D-cut Length: 15mm
Number of Leads: 4
Lead Length: 500mm

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

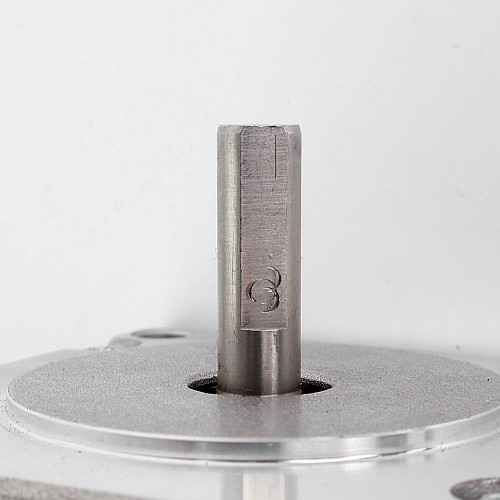

Product status note: the motor shaft and upper end cap has obvious indentations.

Product Type
Product Condition	Used
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	190
Holding Torque(oz.in)	269.06
Inductance(mH)	4.8
Phase Resistance(ohms)	1.13
Rated Current(A)	2.8
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	76
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
IP Rating	40
Lead Length(mm)	500
No. of Lead	4
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	6.35
Shaft Length(mm)	21
Single Shaft/Dual Shaft	Single Shaft
