EG34-G50
Output Shaft TypeKeyway
Gear Ratio(xx:1)50
Backlash at No-load<=15 arcmin
Input Shaft Diameter(mm)14
Downloads
Same series
| Model | Output Shaft Type | Gear Ratio(xx:1) | Backlash at No-load | Input Shaft Diameter(mm) | Price | Stock |
|---|---|---|---|---|---|---|
| EG34-G10 | Keyway | 10 | <=10 arcmin | 14 | C$86.49 | In stock |
| EG34-G10-D13 | Keyway | 10 | <=10 arcmin | 19 | C$90.61 | In stock |
| EG34-G20 | Keyway | 20 | <=15 arcmin | 14 | C$123.55 | In stock |
| EG34-G20-D13 | Keyway | 20 | <=15 arcmin | 19 | C$127.69 | In stock |
| EG34-G5 | Keyway | 5 | <=10 arcmin | 14 | C$86.49 | In stock |
| EG34-G5-D13 | Keyway | 5 | <=10 arcmin | 19 | C$90.61 | In stock |
| EG34-G5-USED | Keyway | 5 | <=10 arcmin | 14 | C$51.90 | In stock |
| EG34-G50 | Keyway | 50 | <=15 arcmin | 14 | C$123.55 | In stock |
| EG34-G50-D13 | Keyway | 50 | <=15 arcmin | 19 | C$127.69 | In stock |

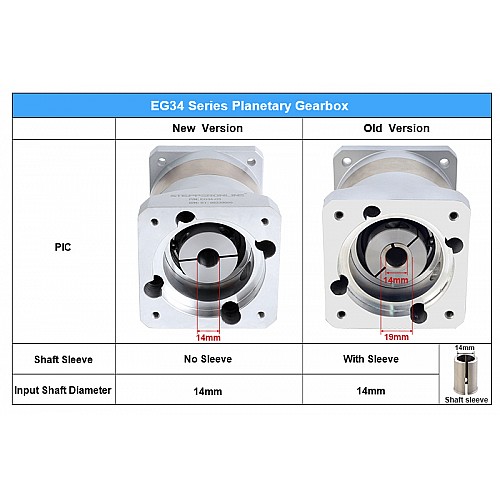

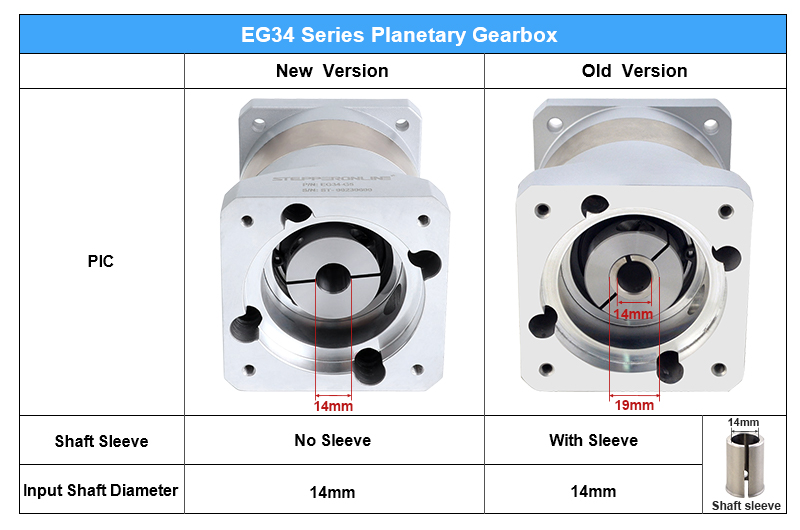

The diameter of the new version is fixed at 14mm. The diameter of the old version is 19mm and can be converted to 14mm by adding a shaft sleeve. New and old version shipped randomly.
EG Series Planetary Gearbox Gear Ratio 50:1 Backlash 15arc-min for Nema 34 Stepper Motor
from
C$123.55
5 or more: C$118.47
10 or more: C$113.78
50 or more: C$109.45
100 or more: C$105.43

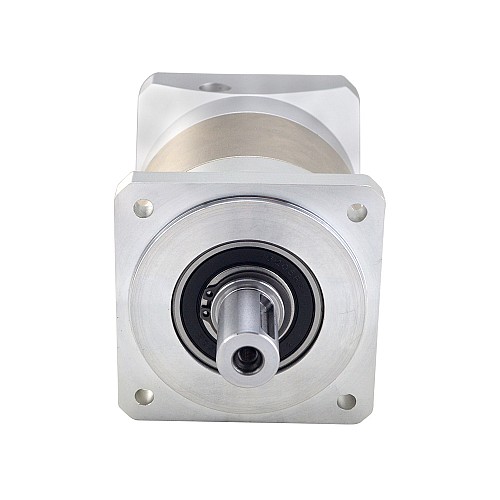

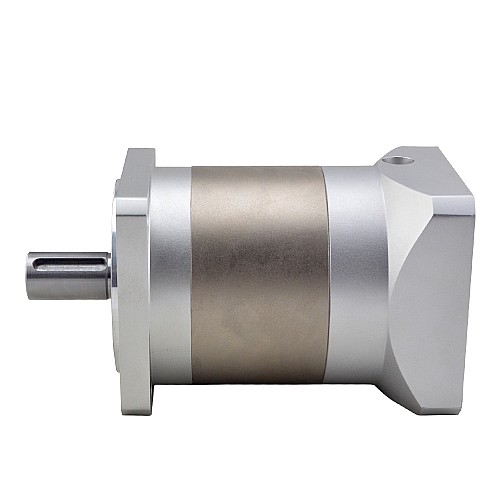

The size of this gearbox is 90 x 90mm and the input shaft diameter is 14mm. This high-precision planetary gearbox is belong to EG series gearbox, it with gear ratio 50:1 and a maximum 15arc-min backlash. It's an excellent choice for applications that require good accuracy and reliability at an exceptional value. This inline planetary gearbox built-in an input shaft coupling which can match any standard Nema 34 stepper motor and brushless dc motor.
Gearbox Specifications
- Part Number: EG34-G50
- Gearbox Type: Spur Planetary
- Gear Material: Alloy Steel
- Gear Ratio: 50:1
- Efficiency: 94%
- Rotor Inertia: 0.13kg·cm²
- Backlash at No-load: <=15arcmin
- Max.Permissible Torque: 100Nm(885.07lb-in)
- Moment Permissible Torque: 200Nm(1770.15lb-in)
- Noise: <=55dB(1000rpm)/65dB(3000rpm)
- Waterproof Rating: IP54
- Lifetime: 20000hours
Physical Specifications
- Frame Size: 90 x 90mm
- Gearbox Length: 132mm
- Output Shaft Type: Key way
- Output Shaft Diameter: Φ20mm
- Output Shaft Length: 40mm
- Input Shaft Diameter: Φ19mm(By default, we offer a free shaft sleeve with 14mm diameter)
- Input Shaft Length: 22-41mm
