3 Axis CNC Router Kit 12.0Nm(1699.68oz.in) Nema 34 Stepper Motor & Driver - 3-DM860I-S120 | StepperOnline CA

3 Axis CNC Router Kit 12.0Nm(1699.68oz.in) Nema 34 Stepper Motor & Driver

0 reviews - Write a review

C$368.18

5 + C$357.43

10 + C$347.30

50 + C$337.71

100 + C$328.65

In Stock: 10000
Model: 3-DM860I-S120
Gross Weight: 20.79kg
Certificated: ISO, CE, UKCA

Sold: 90

Click country for real-time stock

Ships from

China

United States

Germany

Australia

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

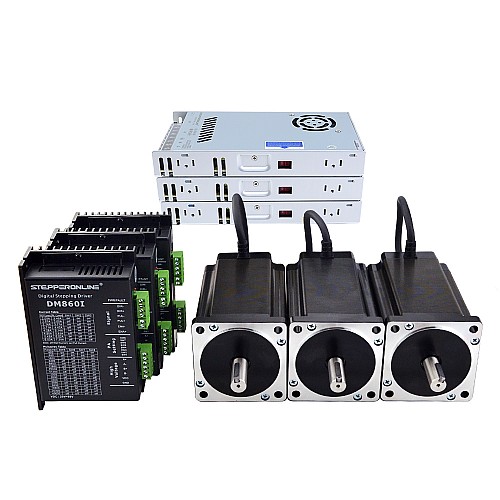

This CNC kit included:

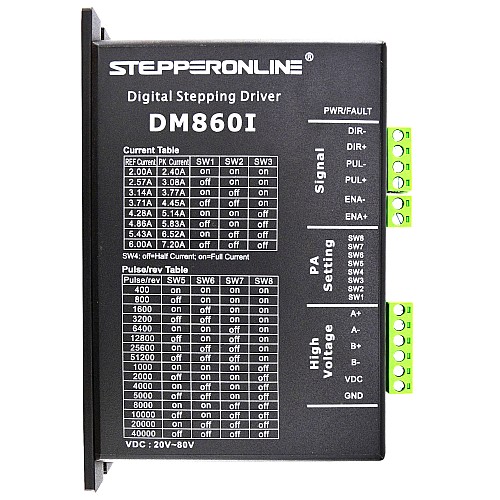

3 x DM860I: Digital Stepper Drive 2.4-7.2A 20-80VDC for Nema 34 Stepper Motor CNC Kit
3 x 34HS59-6004S: Nema 34 Stepper Motor Bipolar 1.8deg 12.0Nm(1699.68oz.in) 6.0A 86x86x151.5mm 4 Wires
3 x LE-350-60: 350W 60V 5.8A 115/230V Switching Power Supply

Driver Specification

Anti-Resonance provides optimal torque and nulls mid-range instability
Motor auto-identification and parameter auto-configuration technology, offers optimal responses with different motors
Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement
16 selectable microstep resolutions including 400, 800, 1600, 3200, 6400, 12800, 25600, 51200, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 40000
Soft-start with no "jump" when powered on
Input voltage 20-80VDC
8 selectable peak current including 2.40A, 3.08A, 3.77A, 4.45A, 5.14A, 5.83A, 6.52A, 7.20A
Pulse input frequency up to 200KHz, TTL compatible and optically isolated input
Automatic idle-current reduction
Suitable for 2-phase and 4-phase motors
Support PUL/DIR and CW/CCW modes
Over-voltage, over-current protection

Motor Specification

Manufacturer Part Number: 34HS59-6004S
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 12.0Nm(1699.68oz.in)
Rated Current/phase: 6.0A
Phase Resistance: 0.7ohms±10%
Inductance: 7.9mH±20%(1KHz)
Frame Size: 86 x 86mm
Body Length: 151.5mm
Shaft Diameter: Φ14mm
Shaft Length: 37mm
Keyway Shaft Length: 25mm
Number of Leads: 4
Lead Length: 500mm
Insulation Class: B 130°C[266°F]

Connection

A+	A-	B+	B-
BLK	GRN	RED	BLU

Power Specification

Input Voltage: 115/230VAC±20%
Input Frequency: 47-63Hz
Input Current: 40A/230VAC
Output Voltage: 60V
Output Current: 5.8A
Rated Output Power: 350W
Leakage Current: <0.5mA/230VAC
Dimensions: 215*115*30mm(L*W*H)
Internal EMI filter
High efficiency low cost
Forced air cooling by built-in DC fan
Over current, over voltage, short circuit and overheat protections

We will gradually replace the power supplies in this kit with the latest model: LE-350-60. The new power supply is an ultra-thin power supply optimized for industrial automation. During the replacement process, each warehouse may randomly ship new and old versions.

The motor comes with a highly flexible cable that can be bent 8 million times without failure.

Product Type
Product Type	Open Loop Stepper Kit
Electrical Specification
Has Torque/Thrust Curve?	No
Holding Torque(Ncm)	1200
Holding Torque(oz.in)	1699.68
Input Voltage Reference(V)	20 - 80DC
No. of Phase	2
Number of Axes	3
Physical Specification
Frame Size(mm)	Nema 34 (86 x 86)
Inventory Method	Dedicated Inventory
Output Shaft Type	Keyway
Power Supply	Power Supply
Product Series	TS Series
Shaft Diameter(mm)	14

File	Size
DM860I.pdf	625.95KB	Download
S-350-60.pdf	128.44KB	Download
LE-350-60.STEP	2.28MB	Download
LE-350-60.pdf	229.51KB	Download
34HS59-6004S_Full_Datasheet.pdf	216.21KB	Download
