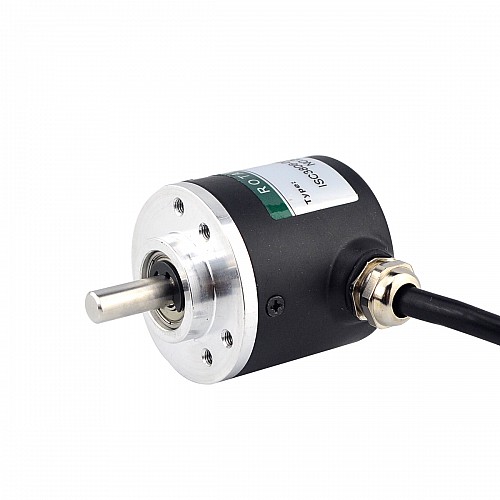

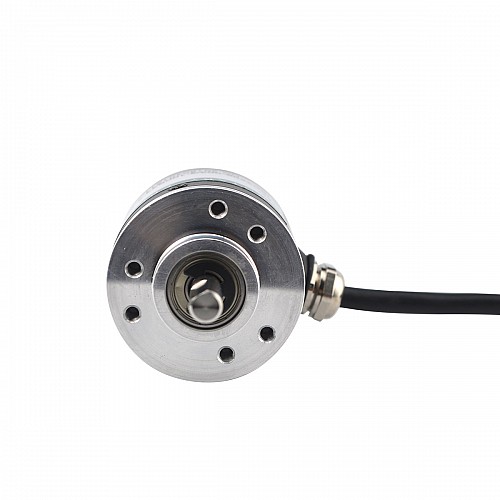

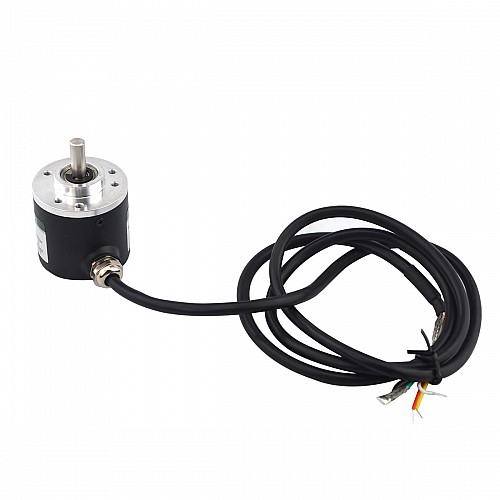

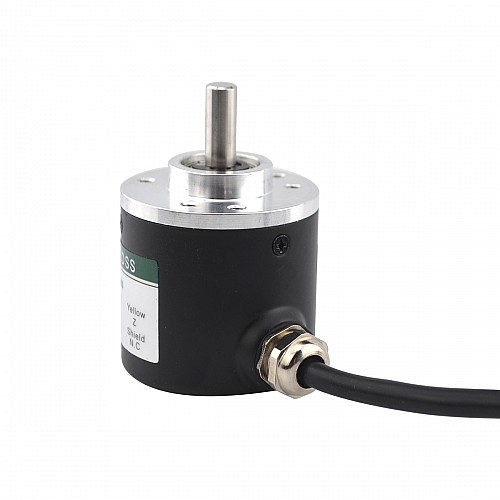

100PPR Incremental Rotary Encoder ABZ 3-Channel 6mm Solid Shaft ISC3806
1 reviews - Write a review
C$0.00
  • In Stock: 1
  • Model: ISC3806-003G-100BZ3-5-24C
  • Gross Weight: 0.23kg
  • Certificated: ISO
Add to Cart
Question
Add to Wish List Compare this Product
This product has a minimum quantity of 999
How to Choose a Shipping Warehouse？
For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Encoder Specification

  • Output Circuit Type: Open collector NPN(Single-Ended)
  • Controlled By: Encoder Interface
  • Encoder Resolution: 100PPR
  • Output Signal Channels: 3

Electrical Specification

  • Supply Voltage Min: 5VDC
  • Supply Voltage Max: 24VDC
  • Output Current: ≤60mA
  • Output High Voltage: ≥2.5V
  • Output Low Voltage: ≤0.3V
  • Output Frequency Max: 100KHZ

Physical Specification

  • Shaft Diameter: 6mm
  • Operating Temperature Min: -25℃
  • Operating Temperature Max: 85℃
  • Cable Length: 500mm
Electrical Specification
Encoder Resolution 100ppr
Encoder Type Rotary
Physical Specification
Inventory Method Dedicated Inventory
File Size
ISC3806.pdf 13.33MB Download
