CN On Sale - Nema 16 Bipolar 0.9deg 25Ncm(35.4oz.in) 0.3A 39x39x44mm 4 Wires

Nema 16 Bipolar 0.9deg 25Ncm(35.4oz.in) 0.3A 39x39x44mm 4 Wires - 16HM17-0304S | StepperOnline CA

-30 %

CN On Sale - Nema 16 Bipolar 0.9deg 25Ncm(35.4oz.in) 0.3A 39x39x44mm 4 Wires

1 reviews - Write a review

C$18.50

C$12.95

In Stock: 10000
Model: CN-16HM17-0304S
Gross Weight: 0.33kg
Certificated: ISO, CE, UKCA, RoHS

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

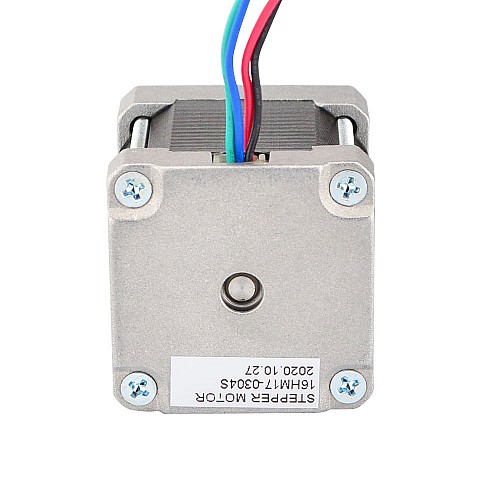

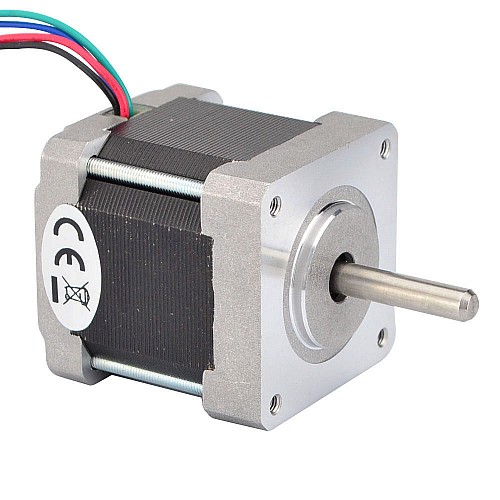

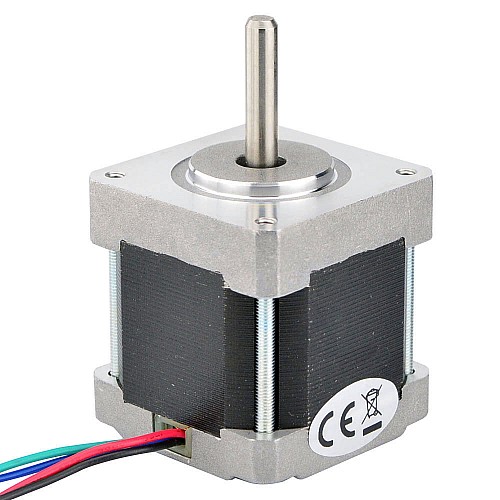

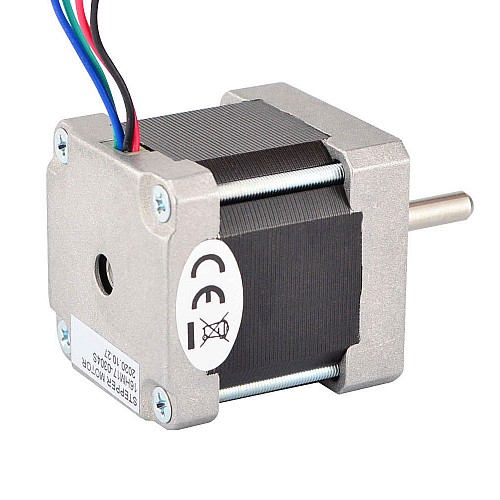

This bipolar Nema 16 stepper motor with step angle 0.9deg and size 39x39x44mm. It has 4 wires, each phase draws 0.3A at 12V, with holding torque 25Ncm(35.4oz.in).

Electrical Specification

Manufacturer Part Number: 16HM17-0304S
Motor Type: Bipolar Stepper
Step Angle: 0.9deg
Holding Torque: 25Ncm(35.4oz.in)
Rated Current/phase: 0.3A
Phase Resistance: 40ohms
Inductance: 110mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 39 x 39mm
Body Length: 44mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
Number of Leads: 4
Lead Length: 300mm
Weight: 270g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	25
Holding Torque(oz.in)	35.4
Inductance(mH)	110
Phase Resistance(ohms)	40
Rated Current(A)	0.3
Step Angle(deg.)	0.9
Physical Specification
Body Length(mm)	44
Frame Size(mm)	Nema 16 (39 x 39)
Inventory Method	Dedicated Inventory
Lead Length(mm)	300
No. of Lead	4
Output Shaft Type	O
Product Series	S
Shaft Diameter(mm)	5
Shaft Length(mm)	24
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	270
