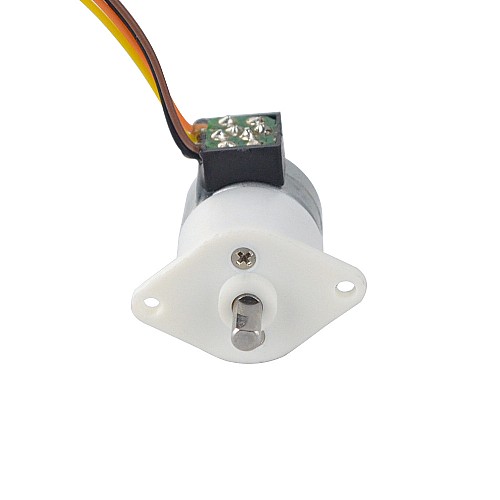

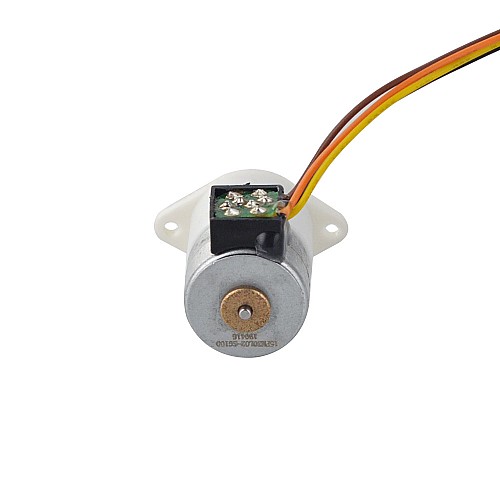

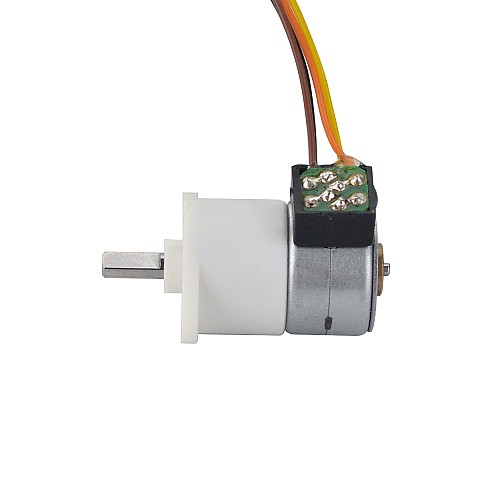

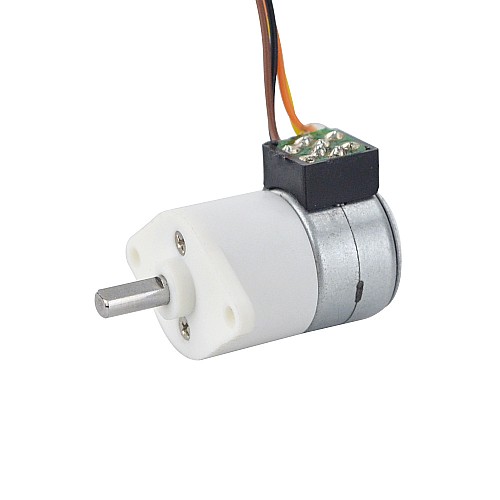

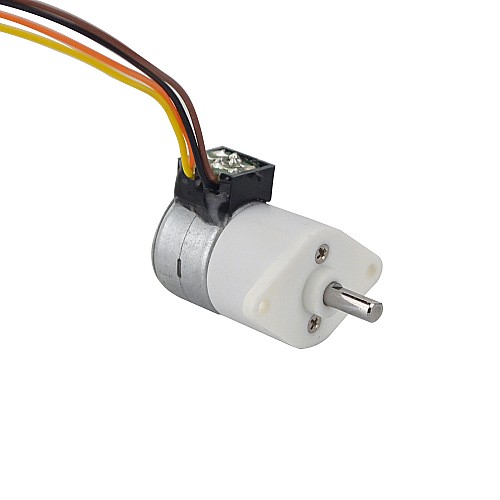

Φ15x22.5mm PM Stepper motor W/Gear Ratio 100:1 Spur gearbox

0 reviews - Write a review

C$10.51

5 + C$9.87

10 + C$9.31

50 + C$8.81

100 + C$8.35

In Stock: 10000
Model: 15PM20L02-SG100
Gross Weight: 0.07kg
Certificated: ISO, CE

Sold: 482

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Electrical Specification

Manufacturer Part Number: 15PM20L02-SG100
Motor Type: PM Stepper
Phase: 2
Step Angle: 0.18deg
Rated Current/phase: 0.5A
Holding Torque: 14.7Ncm(20.821oz.in)
Phase Resistance: 10±7%ohms(25℃)
Insulation Class: B 130°C[266°F]
Inductance: 2.25mH±20%

Physical Specification

Frame Size: Φ15mm
Body Length: 22.5mm
Gearbox Length: 11.5mm
Shaft Diameter: Φ3mm
Shaft Length: 9mm
D-cut Length: 6.5mm
Gearbox Type: Spur
Gear Ratio: 100

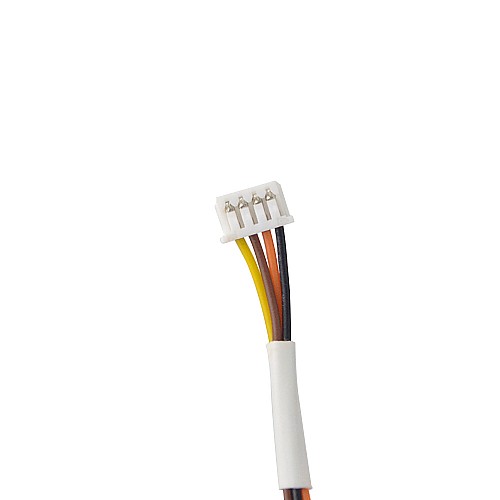

Number of Leads: 4 with connector Molex 4Y
Lead Length: 110mm
Weight: 14.4g

Connection

A+	A-	B+	B-
Black	Brown	Orange	Yellow

Product Type
Product Type	PM Geared Stepper Motor
Electrical Specification
Holding Torque(mN.m)	147
Inductance(mH)	2.25
Phase Resistance(ohms)	10
Rated Current(A)	0.5
Step Angle(deg.)	0.18
Physical Specification
Body Length(mm)	22.5
Frame Size(mm)	Φ15
Gear Ratio(xx:1)	100
Gearbox Type	spur
Inventory Method	Dedicated Inventory
IP Rating	30
Lead Length(mm)	110
No. of Lead	4
Output Shaft Type	D
Shaft Diameter(mm)	3
Shaft Length(mm)	9
Weight(g)	14.4
