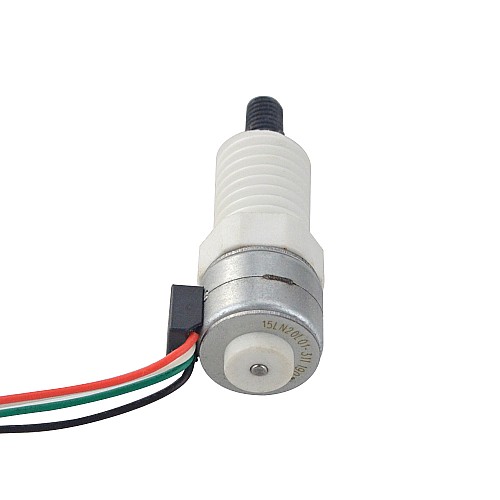

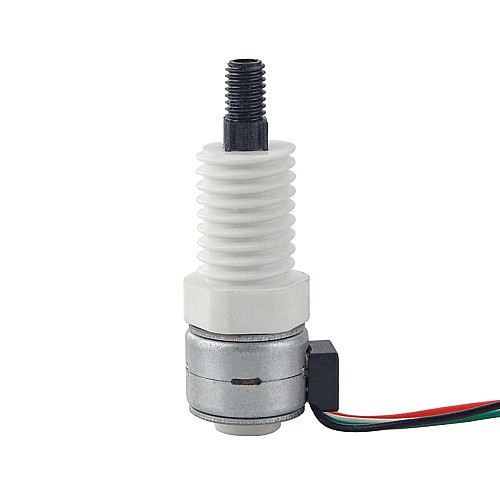

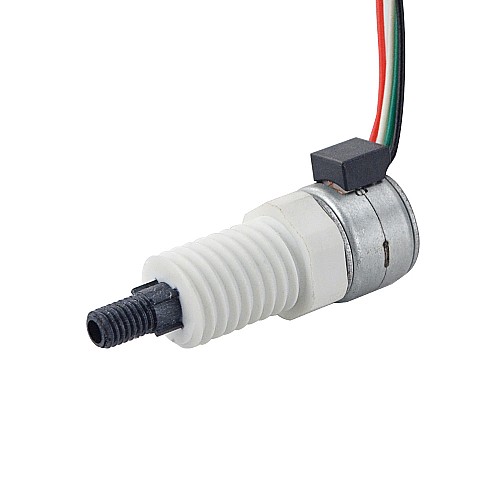

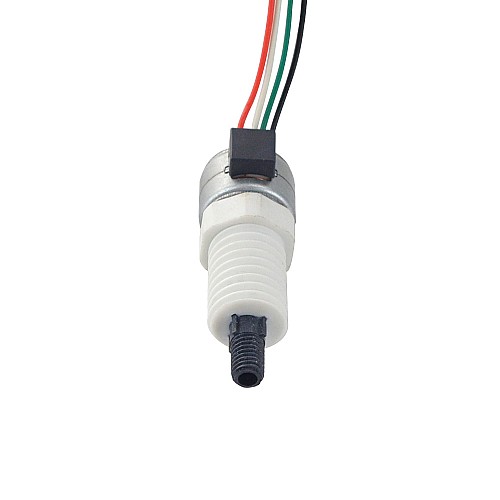

Φ15x11.1mm PM Captive Linear Stepper Motor 0.167A Lead 0.4mm/0.016" Travel 12mm

0 reviews - Write a review

C$18.91

5 + C$17.77

10 + C$16.75

50 + C$15.85

100 + C$15.04

In Stock: 10000
Model: 15LN20L01-311
Gross Weight: 0.06kg
Certificated: ISO, CE

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Electrical Specification

Manufacturer Part Number: 15LN20L01-311
Motor Type: PM Captive Linear Stepper
Phase: 2
Step Angle: 18deg
Rated Current/phase: 0.167A
Thrust: 9N(200Hz)
Phase Resistance: 30±7%ohms(20℃)
Inductance: 9.5mH±20%(1KHz)
IP Protection: IP30
Life: 20000cycles

Physical Specification

Frame Size: Φ15mm
Body Length: 11.1mm
Stroke Length: 12mm(0.472")
Lead Screw Diameter: Φ2mm(0.079")
Lead/Revolution: 0.4mm(0.016")
Lead/Step: 0.02mm(0.000787")
Number of Leads: 4
Lead Length: 40mm
Weight: 13.7g

Connection

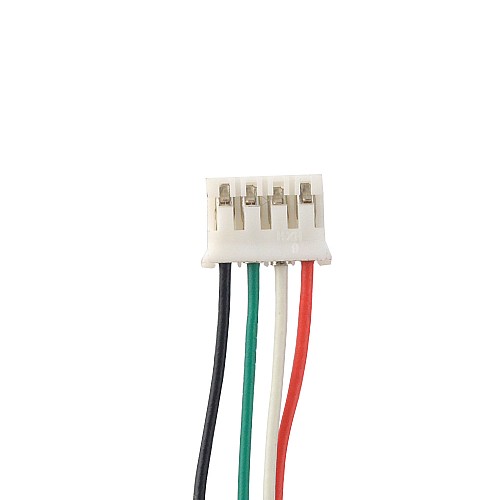

A+	A-	B+	B-
White	Red	Black	Green

Electrical Specification
Inductance(mH)	9.5
No. of Phase	2
Phase Resistance(ohms)	30
Rated Current(A)	0.167
Step Angle(deg.)	18
Physical Specification
Body Length(mm)	11.1
Frame Size(mm)	Φ15
Inventory Method	Dedicated Inventory
IP Rating	30
Lead Length(mm)	40
Lead Screw Diameter(mm)	2
Lead Travel/Revolution(mm)	0.4
Lead Travel/Step(mm)	0.02
Linear Motor Type	PM Captive
No. of Lead	4
Travel(mm)	12

Lead Screw End Machining
- Male/female threaded ends to specified thread and pitch
- Custom-machined journals and ring groove
- Hex or square ends
- Keyways and cross holes

Anti-Backlash Nut

STEPPERONLINE provides anti-backlash nut for external lead screw linear actuator (except Size 34) and non-captive lead screw linear actuator (except size 24 and 34).
There should be a nominal backlash between lead screw and STEPPERONLINE standard plastic nut after millions of cycles. STEPPERONLINE guarantees few millions of cycles but physical backlash can be increased. To reduce or eliminate backlash, STEPPERONLINE provides spring pressure structure of anti-backlash nut.

Encoders

According to application requirements, customer can easily choose encoders via index output or non-index type and thru output method as single ended or differential output.
Also various resolution can be chosen freely for easier and precise positioning.
All STEPPERONLINE standard encoders are optical and incremental. When you choose encoder, please carefully look into options especially size, resolution, index and output method.

Brakes

Especially Vertical applications or holding motors from sudden power-off status, STEPPERONLINE standard power-off brakes for NEMA14, 17, 23, 24 and 34 sizes will be helpful to reduce concern of customers.

Wiring, Cabling and Connectors

Flying wire leads or connectors
Twisting wire leads
Heat shrink or expandable tubing
Cable housings

Teflon Coated Screw

If customer's applications require greaseless screw and nut combination, STEPPERONLINE offers teflon coated lead screw of stepper linear actuator.
Teflon coated lead screw stepper linear actuator enables it's longer life cycle and better thrust force generation against conventional SUS lead screw.
Teflon coating can be applied in the whole range of lead screw options in STEPPERONLINE and all types of linear actuators such as External, Non-Captive, and Captive.
In addition, Anti-backlash nut also can be combined with teflon coated screw too.
