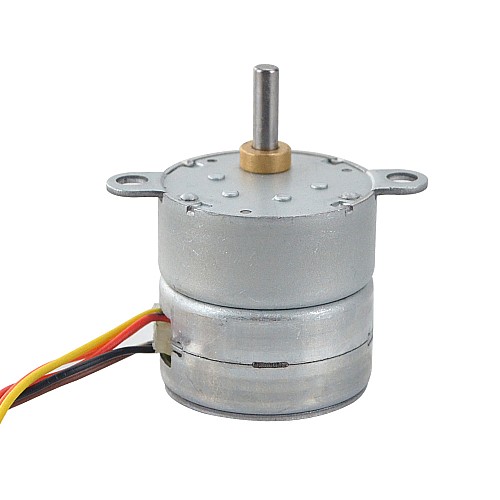

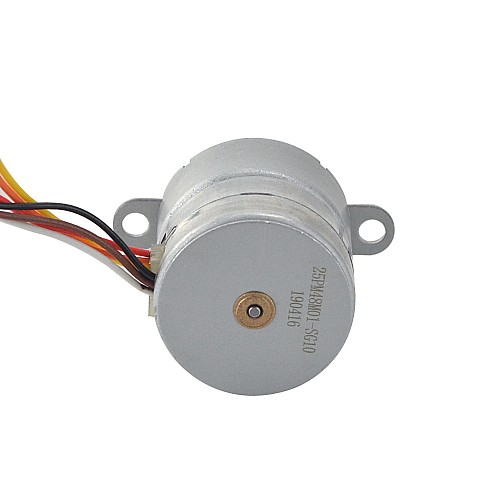

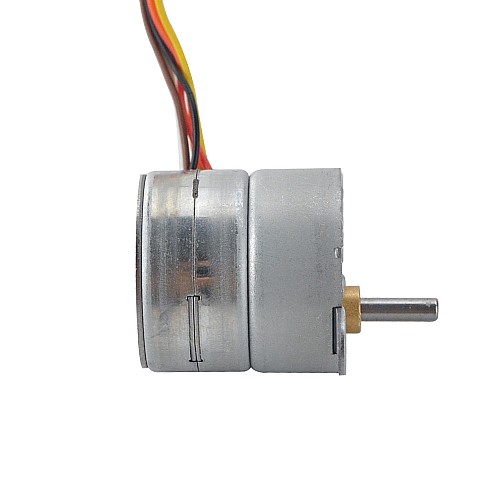

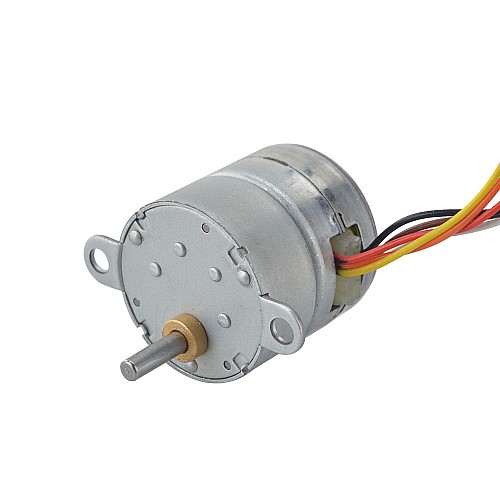

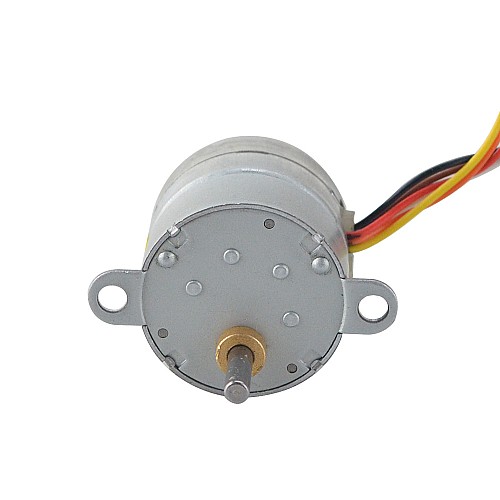

Φ25x25mm PM Stepper motor W/Gear Ratio 10:1 Spur gearbox

0 reviews - Write a review

C$16.81

5 + C$15.79

10 + C$14.89

50 + C$14.09

100 + C$13.36

In Stock: 10000
Model: 25PM48M01-SG10
Gross Weight: 0.09kg
Certificated: ISO, CE

Sold: 85

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Electrical Specification

Manufacturer Part Number: 25PM48M01-SG10
Motor Type: PM Stepper
Phase: 4
Step Angle: 0.75deg
Rated Current/phase: 0.25A
Holding Torque: 12.74Ncm(18.045oz.in)
Phase Resistance: 20±7%ohms(25℃)
Insulation Class: B 130°C[266°F]
Inductance: 3.5mH±20%

Physical Specification

Frame Size: Φ25mm
Body Length: 25mm
Gearbox Length: 11.3mm
Shaft Diameter: Φ3mm
Shaft Length: 11.6mm
Gearbox Type: Spur
Gear Ratio: 10

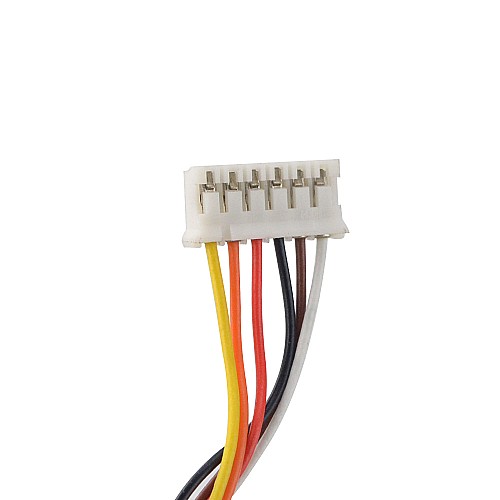

Number of Leads: 6 with connector PH-6Y
Lead Length: 30mm
Weight: 43g

Connection

A+	O+	A-	B+	O-	B-
Yellow	ORG	Red	White	BRN	Black

Product Type
Product Type	PM Geared Stepper Motor
Electrical Specification
Holding Torque(mN.m)	127.4
Inductance(mH)	3.5
Phase Resistance(ohms)	20
Rated Current(A)	0.25
Step Angle(deg.)	0.75
Physical Specification
Body Length(mm)	25
Frame Size(mm)	Φ25
Gear Ratio(xx:1)	10
Gearbox Type	spur
Inventory Method	Dedicated Inventory
IP Rating	30
Lead Length(mm)	30
No. of Lead	6
Shaft Diameter(mm)	3
Shaft Length(mm)	11.6
Weight(g)	43
