Nema 8 Bipolar 1.8deg 4Ncm(5.7oz.in) 0.6A 20x20x38mm 4 Wires
12 reviews - Write a review
C$24.67
5 + C$23.50
10 + C$22.45
50 + C$21.47
100 + C$20.60
  • In Stock: 10000
  • Model: 8HS15-0604S
  • Gross Weight: 0.15kg
  • Certificated: ISO, CE, UKCA, RoHS
Sold: 7895

Click country for real-time stock

Add to Cart
Question
Add to Wish List Compare this Product
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse, Get More Benefits!
Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

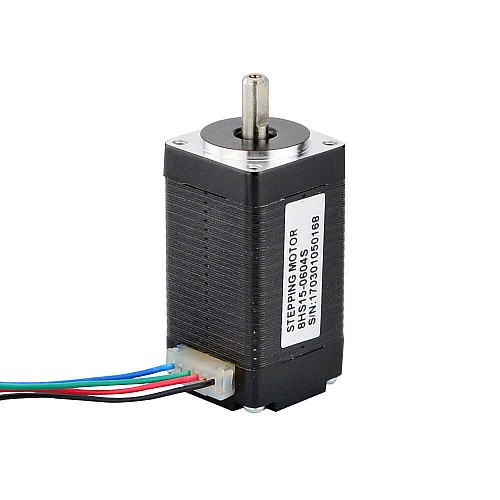

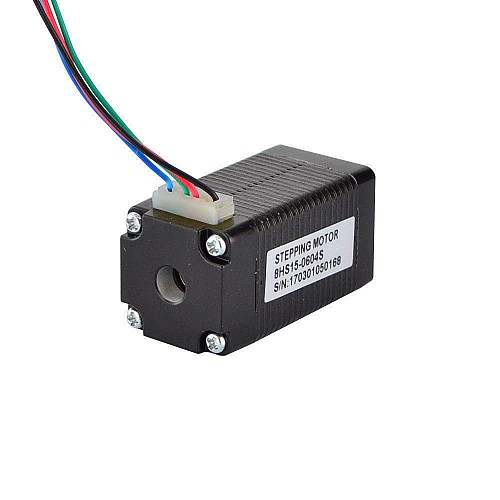

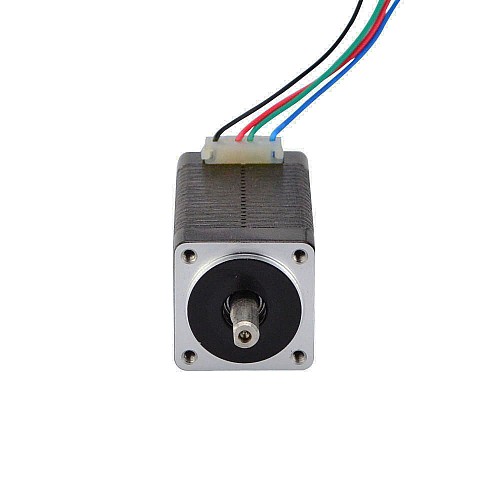

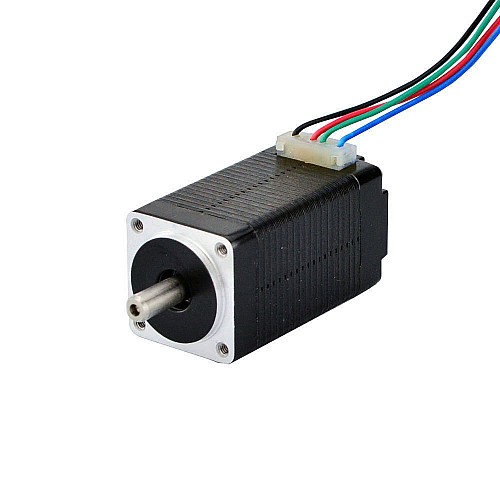

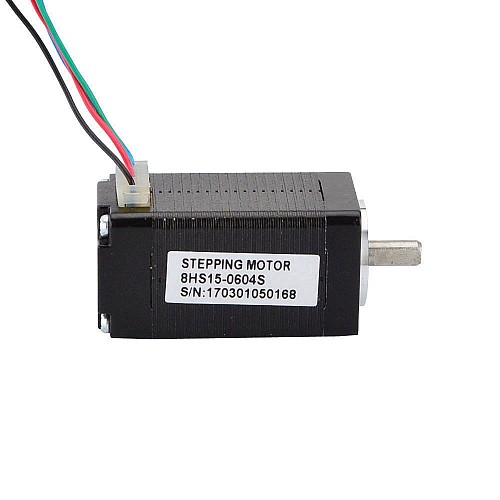

This nema 8 stepper motor with step angle 1.8deg and size 20x20x38mm. It has 4 wires, each phase draws 0.6A at 6.0V, with holding torque 4Ncm(5.7oz.in).


Electrical Specification

  • Manufacturer Part Number: 8HS15-0604S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8deg
  • Holding Torque: 4Ncm(5.7oz.in)
  • Rated Current/phase: 0.6A
  • Phase Resistance: 11ohms
  • Inductance: 5.5mH±20%(1KHz)
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: 20 x 20mm
  • Body Length: 38mm
  • Shaft Shape: D-cut
  • Shaft Diameter: Φ4mm
  • Shaft Length: 10mm
  • D-cut Length: 7mm
  • Number of Leads: 4
  • Cable Length: 300mm
  • Weight: 80g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue
Product Type
Product Type Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar Bipolar
Has Torque/Thrust Curve? Yes
Holding Torque(Ncm) 4
Holding Torque(oz.in) 5.7
Inductance(mH) 5.5
Phase Resistance(ohms) 11
Rated Current(A) 0.6
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 38
Cable Length(mm) 300
Frame Size(mm) Nema 08 (20 x 20)
Inventory Method Dedicated Inventory
IP Rating 40
No. of Lead 4
Output Shaft Type D
Product Series S
Shaft Diameter(mm) 4
Shaft Length(mm) 10
Single Shaft/Dual Shaft Single Shaft
Weight(g) 80



  • Motor Shaft
  • Cable
  • Connector
  • Encoder
  • Brake
  • Gearbox


File Size
8HS15-0604S.STEP 1.19MB Download
8HS15-0604S_torque_curve.pdf 213.05KB Download
8HS15-0604S_Full_Datasheet.pdf 119.11KB Download
