24V 15W 200RPM Geared Brushless DC Motor 0.58Nm(82.13oz.in) 15:1 Spur Gearbox

24V 15W 200RPM Geared Brushless DC Motor 0.58Nm(82.13oz.in) 15:1 Spur Gearbox - F2B15-24GN-30S/2GN15K | StepperOnline CA
24V 15W 200RPM Geared Brushless DC Motor 0.58Nm(82.13oz.in) 15:1 Spur Gearbox - F2B15-24GN-30S/2GN15K | StepperOnline CA
24V 15W 200RPM Geared Brushless DC Motor 0.58Nm(82.13oz.in) 15:1 Spur Gearbox - F2B15-24GN-30S/2GN15K | StepperOnline CA
24V 15W 200RPM Geared Brushless DC Motor 0.58Nm(82.13oz.in) 15:1 Spur Gearbox - F2B15-24GN-30S/2GN15K | StepperOnline CA
24V 15W 200RPM Geared Brushless DC Motor 0.58Nm(82.13oz.in) 15:1 Spur Gearbox - F2B15-24GN-30S/2GN15K | StepperOnline CA
24V 15W 200RPM Geared Brushless DC Motor 0.58Nm(82.13oz.in) 15:1 Spur Gearbox - F2B15-24GN-30S/2GN15K | StepperOnline CA
24V 15W 200RPM Geared Brushless DC Motor 0.58Nm(82.13oz.in) 15:1 Spur Gearbox - F2B15-24GN-30S/2GN15K | StepperOnline CA
24V 15W 200RPM Geared Brushless DC Motor 0.58Nm(82.13oz.in) 15:1 Spur Gearbox - F2B15-24GN-30S/2GN15K | StepperOnline CA
24V 15W 200RPM Geared Brushless DC Motor 0.58Nm(82.13oz.in) 15:1 Spur Gearbox - F2B15-24GN-30S/2GN15K | StepperOnline CA
24V 15W 200RPM Geared Brushless DC Motor 0.58Nm(82.13oz.in) 15:1 Spur Gearbox - F2B15-24GN-30S/2GN15K | StepperOnline CA
24V 15W 200RPM Geared Brushless DC Motor 0.58Nm(82.13oz.in) 15:1 Spur Gearbox - F2B15-24GN-30S/2GN15K | StepperOnline CA
24V 15W 200RPM Geared Brushless DC Motor 0.58Nm(82.13oz.in) 15:1 Spur Gearbox - F2B15-24GN-30S/2GN15K | StepperOnline CA
24V 15W 200RPM Geared Brushless DC Motor 0.58Nm(82.13oz.in) 15:1 Spur Gearbox - F2B15-24GN-30S/2GN15K | StepperOnline CA
24V 15W 200RPM Geared Brushless DC Motor 0.58Nm(82.13oz.in) 15:1 Spur Gearbox - F2B15-24GN-30S/2GN15K | StepperOnline CA
24V 15W 200RPM Geared Brushless DC Motor 0.58Nm(82.13oz.in) 15:1 Spur Gearbox - F2B15-24GN-30S/2GN15K | StepperOnline CA
24V 15W 200RPM Geared Brushless DC Motor 0.58Nm(82.13oz.in) 15:1 Spur Gearbox - F2B15-24GN-30S/2GN15K | StepperOnline CA
24V 15W 200RPM Geared Brushless DC Motor 0.58Nm(82.13oz.in) 15:1 Spur Gearbox - F2B15-24GN-30S/2GN15K | StepperOnline CA
24V 15W 200RPM Geared Brushless DC Motor 0.58Nm(82.13oz.in) 15:1 Spur Gearbox - F2B15-24GN-30S/2GN15K | StepperOnline CA
F2B15-24GN-30S/2GN15K
Output Shaft TypeD
Rated Voltage(V)24
Rated Current(A)1.10
Frame Size(mm)60 x 60
Question

Downloads

F2B15-24GN-30S_2GNXXK_Manual.pdfPDF · 1.27MBF2B15-24GN-30S_2GN15K_Full_Datasheet.pdfPDF · 46.02KB
Same series
ModelOutput Shaft TypeRated Voltage(V)Rated Current(A)Frame Size(mm)PriceStock
57BLR50-24-01-HG10Keyway245.00Nema 23 (57 x 57)C$0.00In stock
57BLR70-24-02-HG100Keyway2410.40Nema 23 (57 x 57)C$94.91In stock
57BLR90-24-01-HG100Keyway2414.00Nema 23 (57 x 57)C$101.69In stock
57BYA74-24-01-PG100Keyway245.70⌀57C$100.83In stock
57BYA74-24-01-PG27Keyway245.70⌀57C$93.63In stock
F2B15-24GN-30S/2GN100KD241.1060 x 60C$40.82In stock
F2B15-24GN-30S/2GN10KD241.1060 x 60C$36.90In stock
F2B15-24GN-30S/2GN15KD241.1060 x 60C$36.90In stock
F2B15-24GN-30S/2GN200KD241.1060 x 60C$40.82In stock
F2B15-24GN-30S/2GN20KD241.1060 x 60C$38.86In stock
F2B15-24GN-30S/2GN30KD241.1060 x 60C$38.86In stock
F2B15-24GN-30S/2GN3KD241.1060 x 60C$36.90In stock
F2B15-24GN-30S/2GN3K-SALED241.1060 x 60C$36.57In stock
F2B15-24GN-30S/2GN50KD241.1060 x 60C$38.86In stock
F2B15-24GN-30S/2GN50K-SALED241.1060 x 60C$38.51In stock
F2B15-24GN-30S/2GN5KD241.1060 x 60C$36.90In stock
F2B15-48GN-30S/2GN100KD480.6060 x 60C$40.82In stock
F2B15-48GN-30S/2GN10KD480.6060 x 60C$36.90In stock
F2B15-48GN-30S/2GN15KD480.6060 x 60C$36.90In stock
F2B15-48GN-30S/2GN200KD480.6060 x 60C$40.82In stock
F2B15-48GN-30S/2GN20KD480.6060 x 60C$38.86In stock
F2B15-48GN-30S/2GN30KD480.6060 x 60C$38.86In stock
F2B15-48GN-30S/2GN3KD480.6060 x 60C$36.90In stock
F2B15-48GN-30S/2GN50KD480.6060 x 60C$38.86In stock
F2B15-48GN-30S/2GN5KD480.6060 x 60C$36.90In stock
F2B40-24GL-30S/2GL150RCHollow242.5060 x 60C$60.39In stock
F2B40-24GL-30S/2GL30RCHollow242.5060 x 60C$60.39In stock
F3B40-24GN-30S/3GN100KKeyway242.5070 x 70C$48.92In stock
F3B40-24GN-30S/3GN10KKeyway242.5070 x 70C$44.46In stock
F3B40-24GN-30S/3GN15KKeyway242.5070 x 70C$44.46In stock
View all in category
24V 15W 200RPM Geared Brushless DC Motor 0.58Nm(82.13oz.in) 15:1 Spur Gearbox
This is a 24V 15W brushless DC gear Motor with a flange of 60x60mm. The built-in 15:1 spur gearbox b... Read More
0 reviews • Write a review
from
C$36.90
5 + C$35.86
10 + C$34.87
50 + C$33.93
100 + C$33.05

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This is a 24V 15W brushless DC gear Motor with a flange of 60x60mm. The built-in 15:1 spur gearbox brings speed and torque to 200rpm and 0.58Nm(82.13oz.in). Due to its compact structure, high efficiency, low noise, long life, strong controllability, brushless DC gear motors are widely used in industrial automation, home appliances, medical equipment, automotive industry and aerospace fields,etc.

The recommended BLDC driver to match this motor is BLD-305S.

Electrical Specifications

  • P/N: F2B15-24GN-30S/2GN15K
  • Phase: 3
  • Poles: 10
  • Rated Current: 1.10A
  • Rated Voltage: 24V
  • Rated Speed: 200rpm
  • Rated Torque: 0.58Nm(82.13oz.in)
  • No-load Current: 0.60A
  • Rated Power: 15W
  • Insulation Class: E 120°C[248°F]
  • Insulation Resistance: 50MΩ Min @500V
  • Sensor: Hall Sensor
  • Life: More than 5000 hours

Physical Specifications

  • Frame Size: 60 x 60mm
  • Body Length: 97mm
  • Gearbox Type: Spur Gearbox
  • Gearbox Ratio: 15:1
  • Shaft Type: D-cut
  • Shaft Diameter: Φ8mm
  • Shaft Length: 30mm
  • Bearing: Deep Groove Ball
  • Weight: 1.06kg

Connection

1
2
3
4
5
6
7
8
U
W
Hb
Ha
V
-
Hc
+
Yellow(Thick)
Blue(Thick)
Green
Yellow
Green(Thick)
Black
Blue
Red
Product Type
Product Type Geared BLDC Motor
Electrical Specification
No-load Current(A) 0.6
No. of Phase 3
Rated Current(A) 1.10
Rated Power(W) 15
Rated Speed(rpm) 200
Rated Torque(Nm) 0.58
Rated Voltage(V) 24
Physical Specification
Body Length(mm) 97
Frame Size(mm) 60 x 60
Gear Ratio(xx:1) 15
Gearbox Type Square Spur Gearbox
Output Shaft Type D
Shaft Diameter(mm) 8
Shaft Length(mm) 30
With Gearbox Yes

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview
Digital Brushless DC Motor Driver 12-24VDC Max 8.0A 120W
Digital Brushless DC Motor Driver 12-24VDC Max 8.0A 120W
This is a brushless motor driver with an input voltage of 12-24VDC and maximun power of 120W. Compared with BLD-405S, BLD-305S is more cost-effective ..
from
C$23.06
Add to Cart
Add to Wish List Compare this Product
Quickview
24V 15W 300RPM Geared Brushless DC Motor 0.39Nm(55.23oz.in) 10:1 Spur Gearbox
24V 15W 300RPM Geared Brushless DC Motor 0.39Nm(55.23oz.in) 10:1 Spur Gearbox
This is a 24V 15W brushless DC gear Motor with a flange of 60x60mm. The built-in 10:1 spur gearbox brings speed and torque to 300rpm and 0.39Nm(55.23o..
from
C$36.90
Add to Cart
Add to Wish List Compare this Product
Quickview
Brushless DC Motor Controller DBLC-01
Brushless DC Motor Controller DBLC-01
Function of control box 1. Display speed. It can display the real time rotation speed of the motor. 2. Start/Stop button on the panel to control the..
from
C$16.95
Add to Cart
Add to Wish List Compare this Product
Quickview

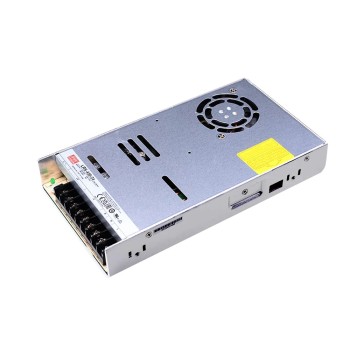

LRS-450-24 MEANWELL 451.2W 24VDC 18.8A 115/230VAC Enclosed Switching Power Supply
