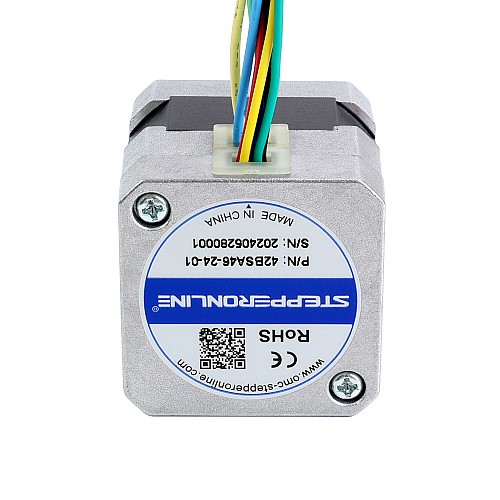

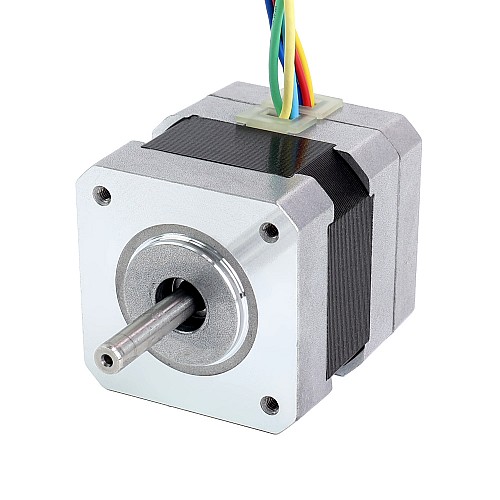

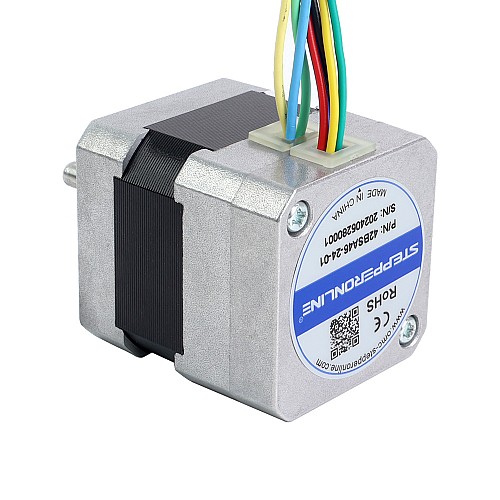

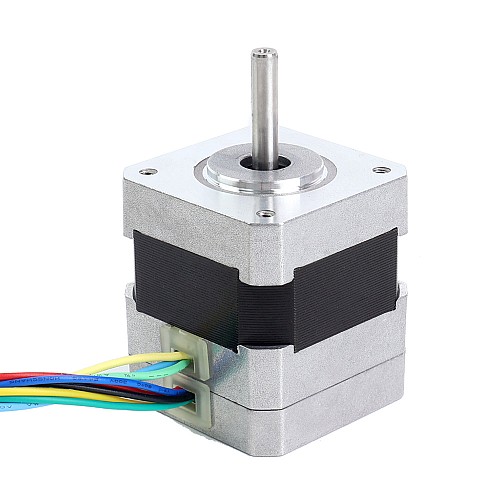

24V 3000RPM 0.08Nm 25W 1.80A 42x42x46mm Brushless DC Motor

0 reviews - Write a review

C$26.73

5 + C$25.86

10 + C$25.03

50 + C$24.24

100 + C$23.52

In Stock: 10000
Model: 42BSA46-24-01
Gross Weight: 0.38kg
Certificated: ISO, CE

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This is a 24V brushless DC motor with 3 phases and 8 poles. It offers a rated speed of 3000rpm and torque of 0.08Nm(11.33oz.in).
42BSA series brushless motors are high-performance motors with square body and larger torque that are suitable for textile machines, robotics, autobikes and other industrial applications.

Electrical Specification

Manufacturer Part Number: 42BSA46-24-01
Phase: 3
Poles: 8
Rated Voltage: 24V
Rated Torque: 0.08Nm(11.33oz.in)
Rated Power: 25W
Rated Speed: 3000±10%RPM
Rated Current: 1.80A
No-load Speed: 3980±10%RPM
Resistance/phase: 2.74±10%Ohms
Inductance/phase: 1.35±20%mH
BACK EMF: 4.3±5%V/krpm
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 42 x 42mm
Body Length: 46mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
Shaft Type: Round
Number of Leads: 8
Lead Length: 500mm
Sensor: Hall Sensor
Weight: 0.28kg

Connection

U	V	W	+5V	GND	A	B	C
Yellow	Green	Blue	Red	Black	Yellow	Green	Blue

The gearboxes suitable for this motor are EG17-G5, EG17-G10, EG17-G20, EG17-G50, EG17-G100.

Product Type
Product Type	BLDC Motor
Electrical Specification
No. of Phase	3
Rated Current(A)	1.80
Rated Power(W)	25
Rated Speed(rpm)	3000
Rated Torque(Nm)	0.08
Rated Voltage(V)	24
Physical Specification
Body Length(mm)	46
Frame Size(mm)	Nema 17 (42 x 42)
IP Rating	20
Output Shaft Type	O
Shaft Diameter(mm)	5
Shaft Length(mm)	24
With Gearbox	No
