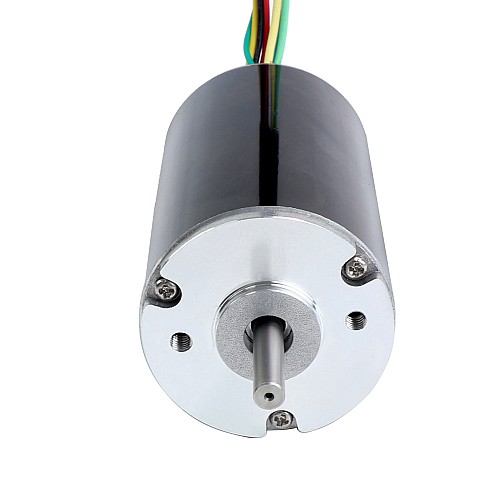

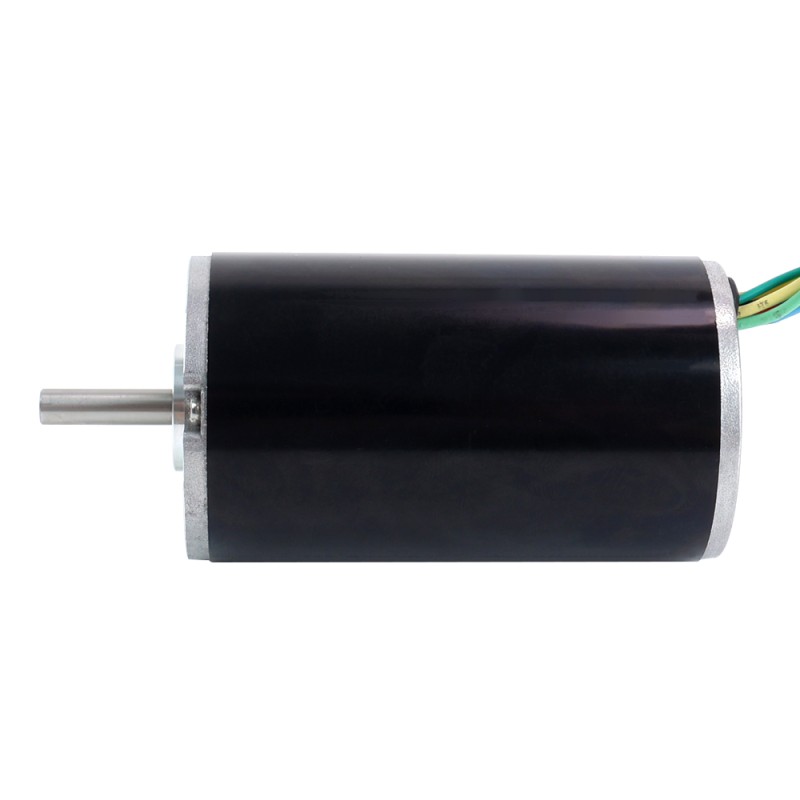

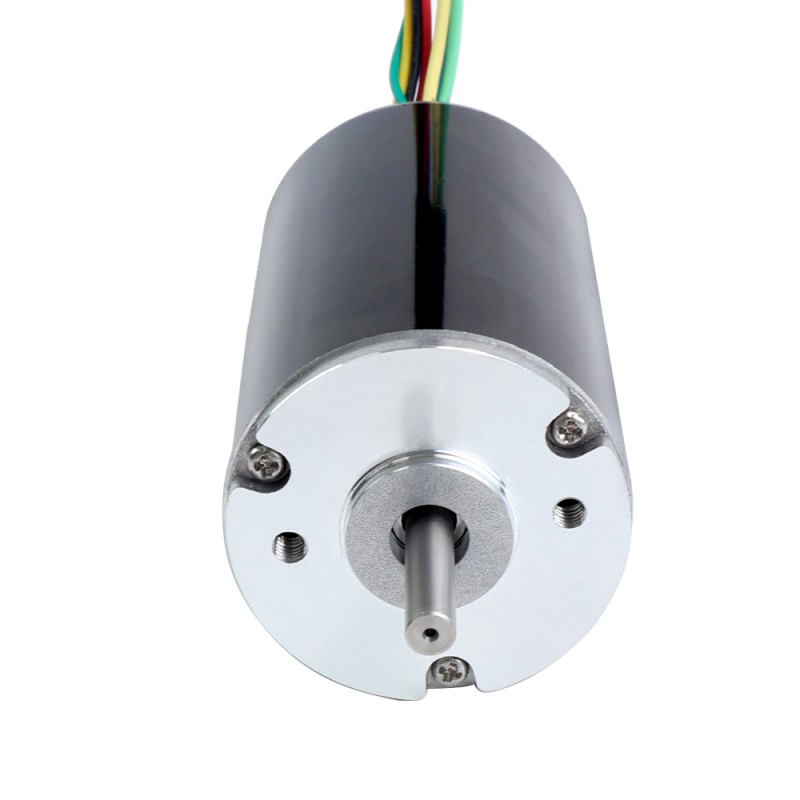

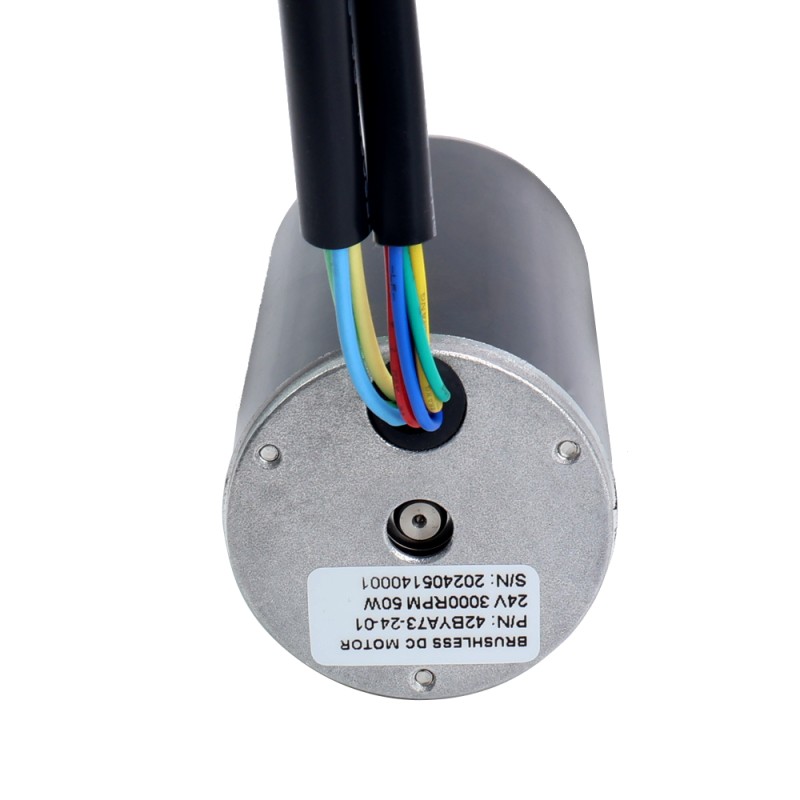

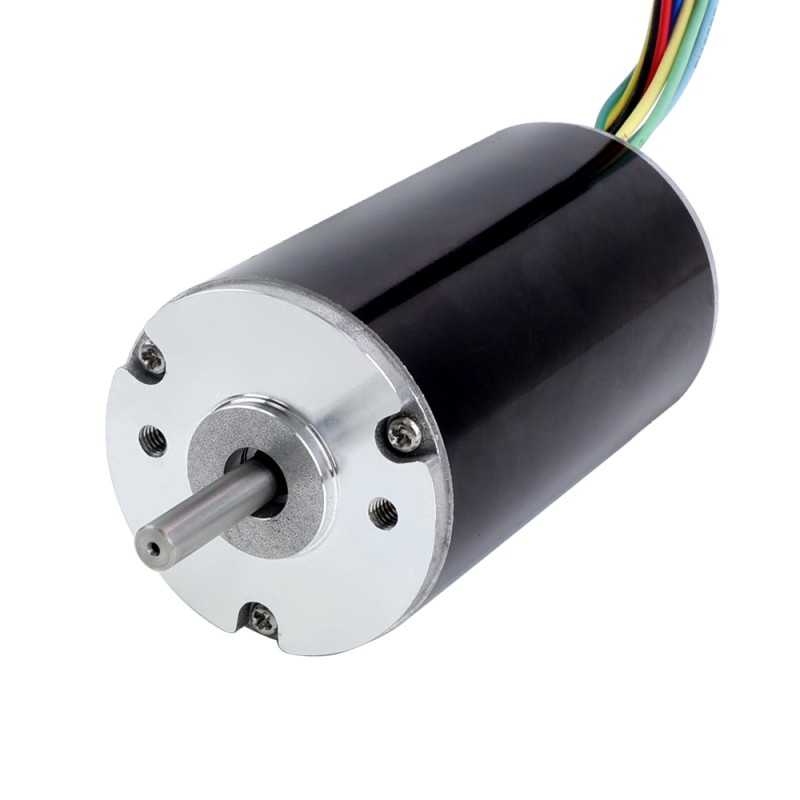

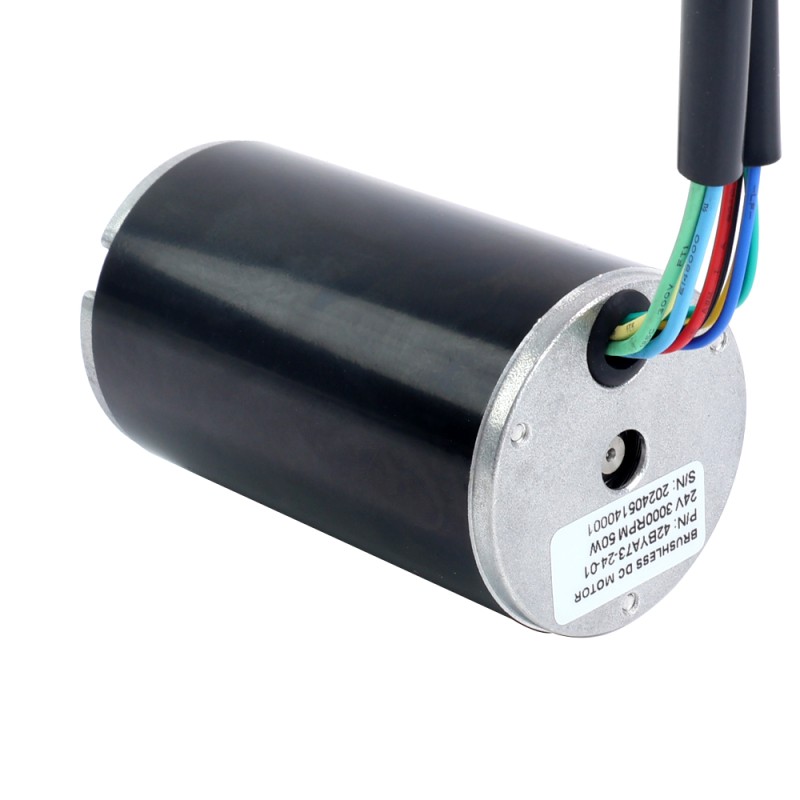

24V 3000RPM 0.16Nm 50W 3.30A Φ42x73mm Brushless DC Motor

24V 3000RPM 0.16Nm 50W 3.30A Φ42x73mm Brushless DC Motor - 42BYA73-24-01 | StepperOnline CA
24V 3000RPM 0.16Nm 50W 3.30A Φ42x73mm Brushless DC Motor - 42BYA73-24-01 | StepperOnline CA
24V 3000RPM 0.16Nm 50W 3.30A Φ42x73mm Brushless DC Motor - 42BYA73-24-01 | StepperOnline CA
24V 3000RPM 0.16Nm 50W 3.30A Φ42x73mm Brushless DC Motor - 42BYA73-24-01 | StepperOnline CA
24V 3000RPM 0.16Nm 50W 3.30A Φ42x73mm Brushless DC Motor - 42BYA73-24-01 | StepperOnline CA
24V 3000RPM 0.16Nm 50W 3.30A Φ42x73mm Brushless DC Motor - 42BYA73-24-01 | StepperOnline CA
24V 3000RPM 0.16Nm 50W 3.30A Φ42x73mm Brushless DC Motor - 42BYA73-24-01 | StepperOnline CA
24V 3000RPM 0.16Nm 50W 3.30A Φ42x73mm Brushless DC Motor - 42BYA73-24-01 | StepperOnline CA
24V 3000RPM 0.16Nm 50W 3.30A Φ42x73mm Brushless DC Motor - 42BYA73-24-01 | StepperOnline CA
24V 3000RPM 0.16Nm 50W 3.30A Φ42x73mm Brushless DC Motor - 42BYA73-24-01 | StepperOnline CA
42BYA73-24-01
Output Shaft TypeO
Shaft Diameter(mm)5
Shaft Length(mm)20
Rated Voltage(V)24
Question

Downloads

42BYA73-24-01 Full DatasheetPDF · 119.37KB42BYA73-24-01_Torque_Curve_24V.pdfPDF · 97.88KB
Same series
ModelOutput Shaft TypeShaft Diameter(mm)Shaft Length(mm)Rated Voltage(V)PriceStock
42BLR43-24-01O52024C$28.81Backorder
42BLS40-24-01O52024C$24.88In stock
42BLS60-24-01O52024C$31.08In stock
42BSA46-24-01O52424C$23.04In stock
42BSA62-24-01O52424C$25.92In stock
42BSA62-36-01O52436C$25.92In stock
42BSA78-24-01O52424C$34.56In stock
42BSA78-48-01O52448C$34.56In stock
42BSB101-24-01O52024C$31.68In stock
42BSB101-48-01O52048C$31.68In stock
42BSB41-24-01O52024C$20.16In stock
42BSB61-24-01O52024C$23.04In stock
42BSB61-48-01O52048C$23.04In stock
42BSB81-24-01O52024C$28.80In stock
42BSB81-48-01O52048C$28.80In stock
42BYA43-24-01O52024C$21.60In stock
42BYA51-24-01O52024C$24.48In stock
42BYA73-24-01O52024C$34.56In stock
57BLR110-36-01O82536C$52.37In stock
57BLR50-24-01O82524C$32.20In stock
57BLR50-36-01D82536C$32.20In stock
57BLR70-24-02O82524C$45.76In stock
57BLR70-36-01O82536C$37.29In stock
57BLY54-24-01O82124C$27.12In stock
57BSA100-36-01D82136C$63.36In stock
57BSA100-48-01D82148C$63.36In stock
57BSA58-24-01D82124C$31.68In stock
57BSA79-36-01D82136C$46.08In stock
57BSD116-36-01D82136C$41.76In stock
57BSD116-48-01D82148C$41.76In stock
View all in category
24V 3000RPM 0.16Nm 50W 3.30A Φ42x73mm Brushless DC Motor
This is a 24V brushless DC motor with 3 phases and 4 poles. It offers a rated speed of 3000rpm and t... Read More
0 reviews • Write a review
from
C$34.56
5 + C$33.55
10 + C$32.60
50 + C$31.70
100 + C$30.85

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This is a 24V brushless DC motor with 3 phases and 4 poles. It offers a rated speed of 3000rpm and torque of 0.16Nm(22.66oz.in).
42BYA series brushless motors are high-performance motors with round body and larger torque that are suitable for textile machines, robotics, autobikes and other industrial applications.

Electrical Specification

  • Manufacturer Part Number: 42BYA73-24-01
  • Phase: 3
  • Poles: 4
  • Rated Voltage: 24V
  • Rated Torque: 0.16Nm(22.66oz.in)
  • Rated Power: 50W
  • Rated Speed: 3000±10%RPM
  • Rated Current: 3.30A
  • No-load Speed: 4300±10%RPM
  • Resistance/phase: 1.67±10%Ohms
  • Inductance/phase: 1.24±20%mH
  • BACK EMF: 3.87±5%V/krpm
  • Insulation Class: B 130°C[266°F]

Physical Specification

  • Frame Size: Φ42mm
  • Body Length: 73mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 20mm
  • Shaft Type: Round
  • Number of Leads: 8
  • Lead Length: 500mm
  • Sensor: Hall Sensor
  • Weight: 0.42kg

Connection

U
V
W
+5V
GND
A
B
C
Yellow
Green
Blue
Red
Black
Yellow
Green
Blue
Product Type
Product Type BLDC Motor
Electrical Specification
No. of Phase 3
Rated Current(A) 3.30
Rated Power(W) 50
Rated Speed(rpm) 3000
Rated Torque(Nm) 0.16
Rated Voltage(V) 24
Physical Specification
Body Length(mm) 73
Frame Size(mm) ⌀42
IP Rating 20
Output Shaft Type O
Shaft Diameter(mm) 5
Shaft Length(mm) 20
With Gearbox No

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Quickview

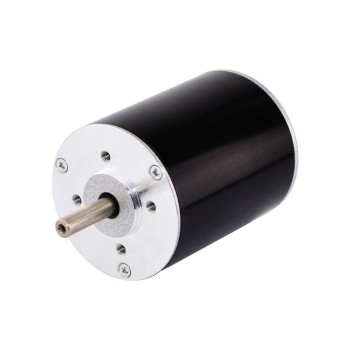

24V 2000RPM 0.062Nm 13W 0.91A Round Ф42x43mm Brushless DC Motor
Pre-order
24V 2000RPM 0.062Nm 13W 0.91A Round Ф42x43mm Brushless DC Motor
Electrical Specification Manufacturer Part Number: 42BLR43-24-01 Phase: 3 Poles: 4 Rated Voltage: 24V Rated Speed: 2000±10%RPM Noload Speed: ..
from
C$28.81
Add to Cart
Add to Wish List Compare this Product
Quickview
Brushless DC Motor Controller DBLC-01
Brushless DC Motor Controller DBLC-01
Function of control box 1. Display speed. It can display the real time rotation speed of the motor. 2. Start/Stop button on the panel to control the..
from
C$16.95
Add to Cart
Add to Wish List Compare this Product
Quickview
Digital Brushless DC Motor Driver 24V-48VDC Max 15.0A 400W
Digital Brushless DC Motor Driver 24V-48VDC Max 15.0A 400W
This 12V-48VDC 400W brushless motor driver is a driver independently developed by STEPPERONLINE to work with the field of modern industrial autom..
from
C$28.80
Add to Cart
Add to Wish List Compare this Product
Quickview
Digital Brushless DC Motor Driver 12V-24VDC Max 5.0A 120W
Digital Brushless DC Motor Driver 12V-24VDC Max 5.0A 120W
This 12V-36VDC 120W brushless motor driver is a driver independently developed by STEPPERONLINE to work with the field of modern industrial autom..
from
C$30.51
Add to Cart
Add to Wish List Compare this Product
Quickview

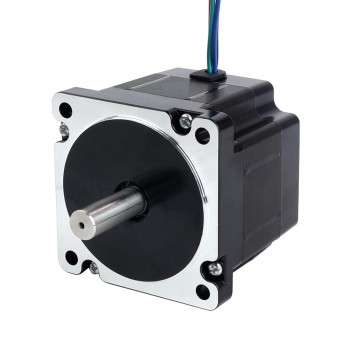

S Series Nema 34 Stepper Motor Bipolar 1.8deg 3.3Nm(467.32oz.in) 5.6A 86x86x64mm 4 Wires
S Series Nema 34 Stepper Motor Bipolar 1.8deg 3.3Nm(467.32oz.in) 5.6A 86x86x64mm 4 Wires
This stepper motor with a 30mm long shaft and a motor size of 86x86x64mm is the shortest Nema 34 motor we have. It has 4 wires, each phase draws 5.6A,..
from
C$46.11
Add to Cart
Add to Wish List Compare this Product
Quickview

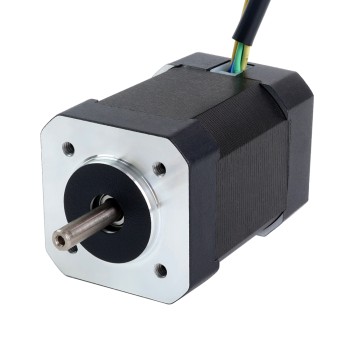

24V 3000RPM 0.125Nm 39W 2.30A 42x42x61mm Brushless DC Motor
