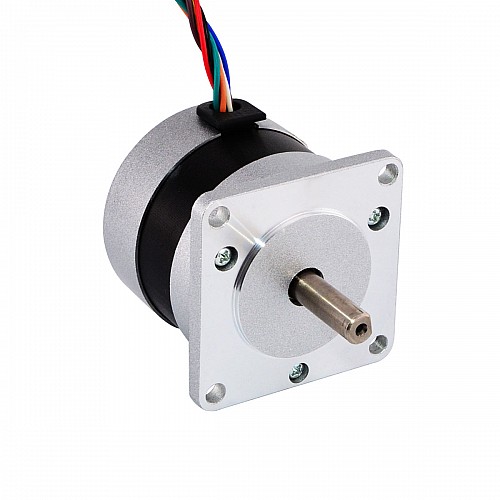

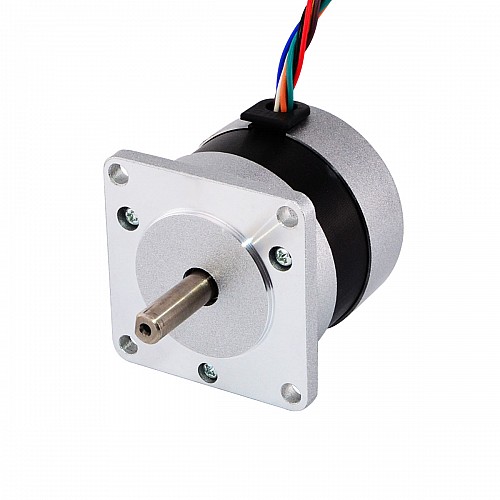

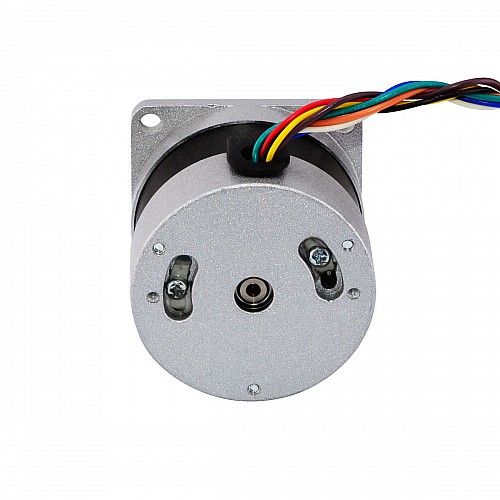

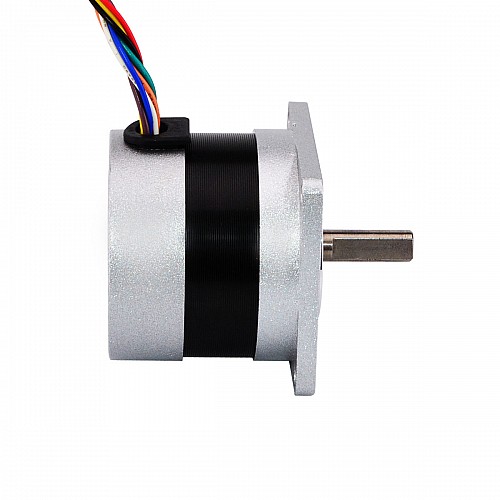

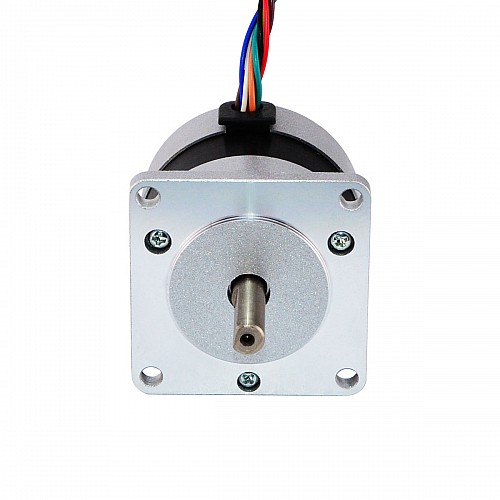

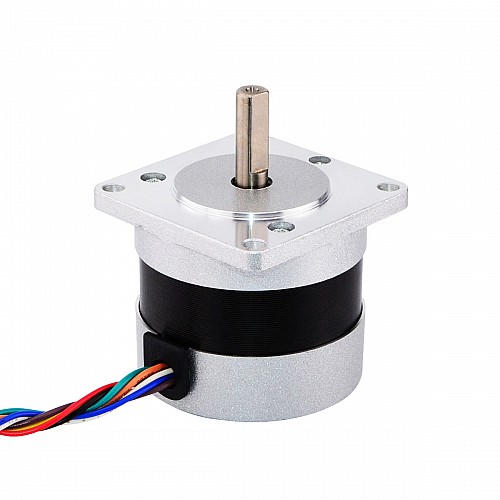

24V 3500RPM 0.23Nm 84W 5.0A Ф57x49mm Brushless DC Motor

0 reviews - Write a review

C$31.75

5 + C$30.70

10 + C$29.72

50 + C$28.79

100 + C$27.93

In Stock: 10000
Model: 57BLR50-24-01
Gross Weight: 0.55kg
Certificated: ISO, CE

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Electrical Specification

Manufacturer Part Number: 57BLR50-24-01
Phase: 3
Poles: 4
Rated Voltage: 24V
Rated Speed: 3500±10%RPM
Rated Torque: 0.23Nm(32.57oz.in)
Rated Current: 5±10%A
Rated Power: 84W
Insulation Class: B 130°C[266°F]
Insulation Resistance: 100MΩ Min @500VDC
Dielectric Strength Test: 500VAC for 1 Minute

Physical Specification

Frame Size: Φ57mm
Body Length: 49.1mm
Shaft Diameter: Φ8mm
Shaft Length: 25mm
Shaft Type: D-cut
D-cut Length: 20mm
Number of Leads: 8
Lead Length: 300mm
Bearing Type: NMB Ball Bearing, C3
Weight: 0.5kg

Connection

U	V	W	+5V	GND	A	B	C
Orange	Green	Brown	Red	Black	Yellow	White	Blue

The gearboxes suitable for this motor are EG23-G5-D8, EG23-G10-D8, EG23-G20-D8, EG23-G50-D8.

Product Type
Product Type	BLDC Motor
Electrical Specification
No. of Phase	3
Rated Current(A)	5
Rated Power(W)	84
Rated Speed(rpm)	3500
Rated Torque(Nm)	0.23
Rated Voltage(V)	24
Physical Specification
Body Length(mm)	49.1
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
IP Rating	20
Output Shaft Type	O
Shaft Diameter(mm)	8
Shaft Length(mm)	25
With Gearbox	No
