24V 60W 120RPM Geared Brushless DC Motor 3.80Nm(538.12oz.in) 25:1 Planetary Gearbox

0 reviews - Write a review

C$76.19

5 + C$73.67

10 + C$71.31

50 + C$69.10

100 + C$67.03

In Stock: 10000
Model: M52B60-24P-30S/G52-25S1
Gross Weight: 1.52kg
Certificated: ISO, CE

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

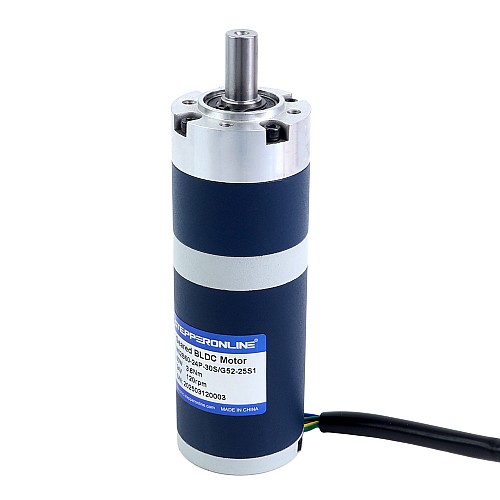

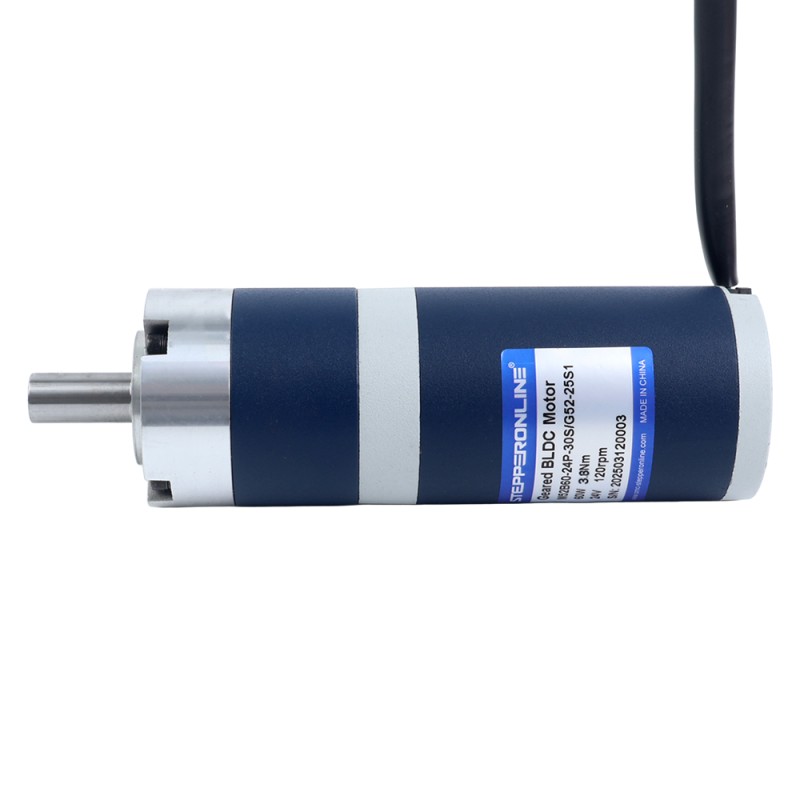

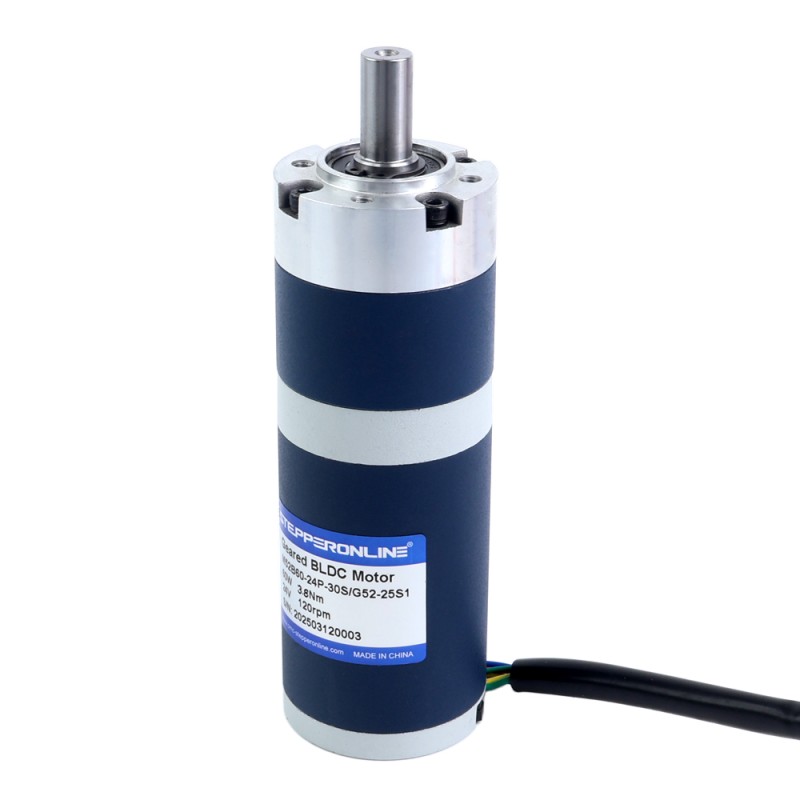

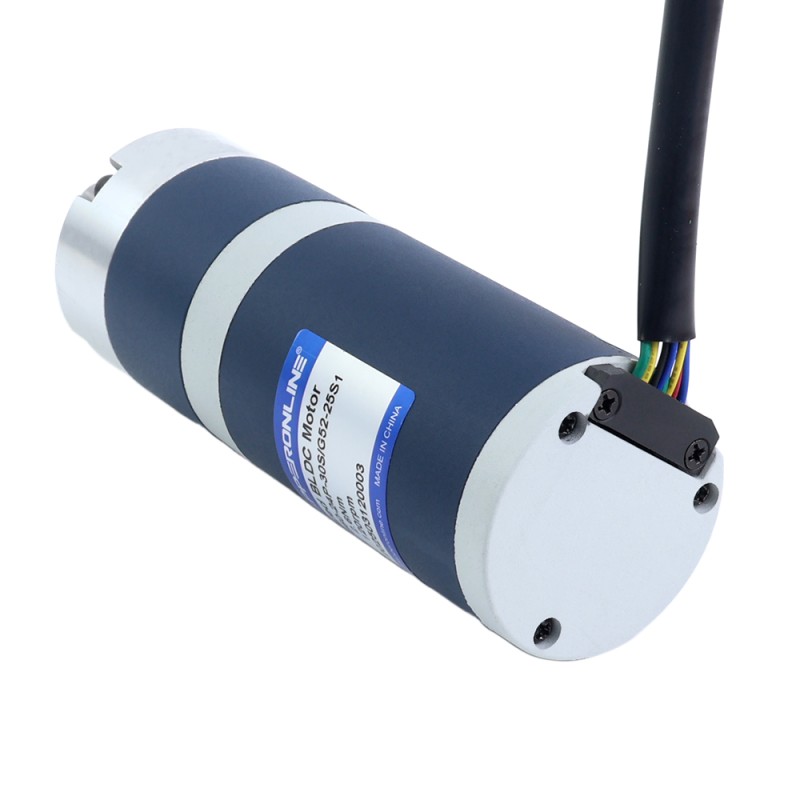

This is a 24V 60W brushless DC motor with a Φ52mm flange diameter, a rated torque of 3.80Nm(538.12oz.in) and a rated speed of 120rpm. It is equipped with a planetary gearbox with a gear ratio of 25:1, which delivers high torque for precision applications. The compact cylindrical design facilitates integration into systems with limited space.
Due to its compact structure, high precision, stability, low noise, long service life and low maintenance costs, this motor is widely used in robotics, industrial automation, medical devices, security and surveillance systems and other demanding applications.

Electrical Specifications

P/N: M52B60-24P-30S/G52-25S1
Phase: 3
Poles: 4
Rated Voltage: 24V
Rated Power: 60W
Rated Current: 3.33A
Rated Torque: 3.80Nm(538.12oz.in)
Rated Speed: 120rpm
Speed without Gearbox: 3600rpm±10%
Sensor: Hall Sensor
Insulation Class: B 130°C[266°F]

Physical Specifications

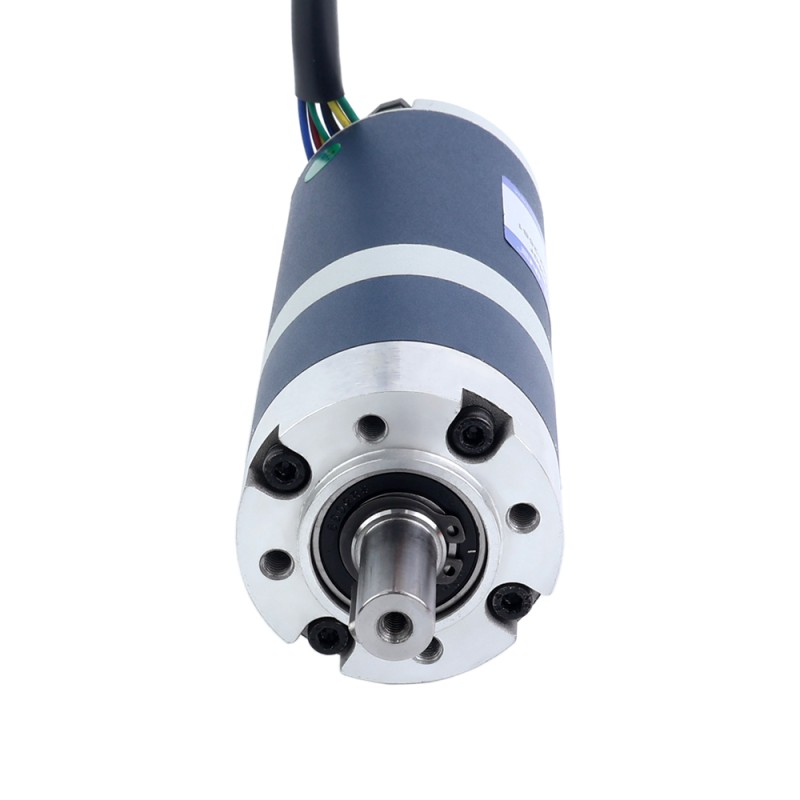

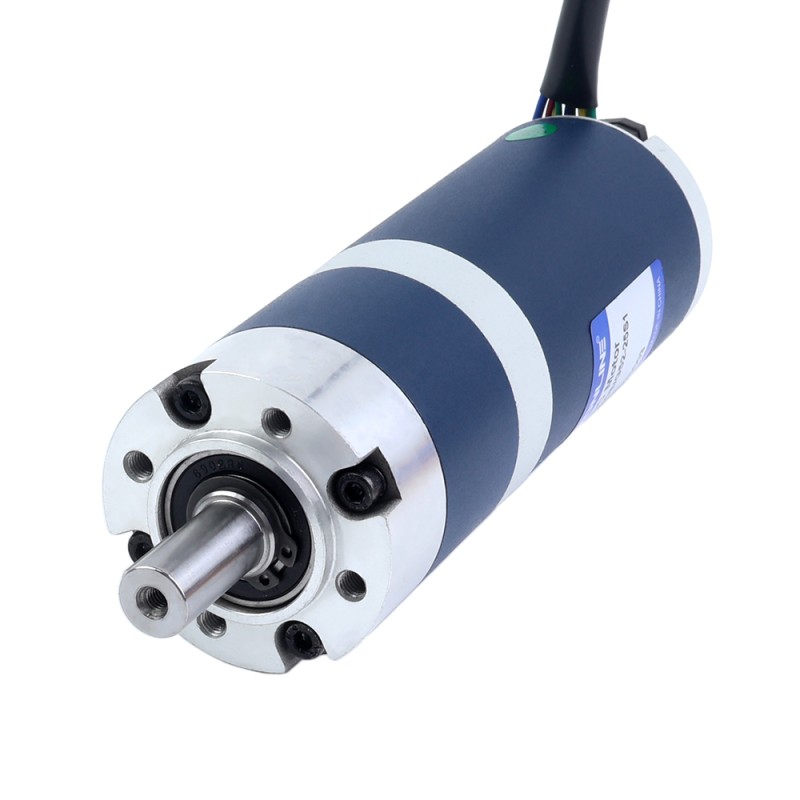

Gearbox Type: Planetary Gearbox
Gearbox Ratio: 25:1
Frame Size: Φ52mm
Body Length: 144mm
Shaft Type: Keyway
Shaft Diameter: Φ12mm
Shaft Length: 28mm
Weight: 1.33kg

Connection

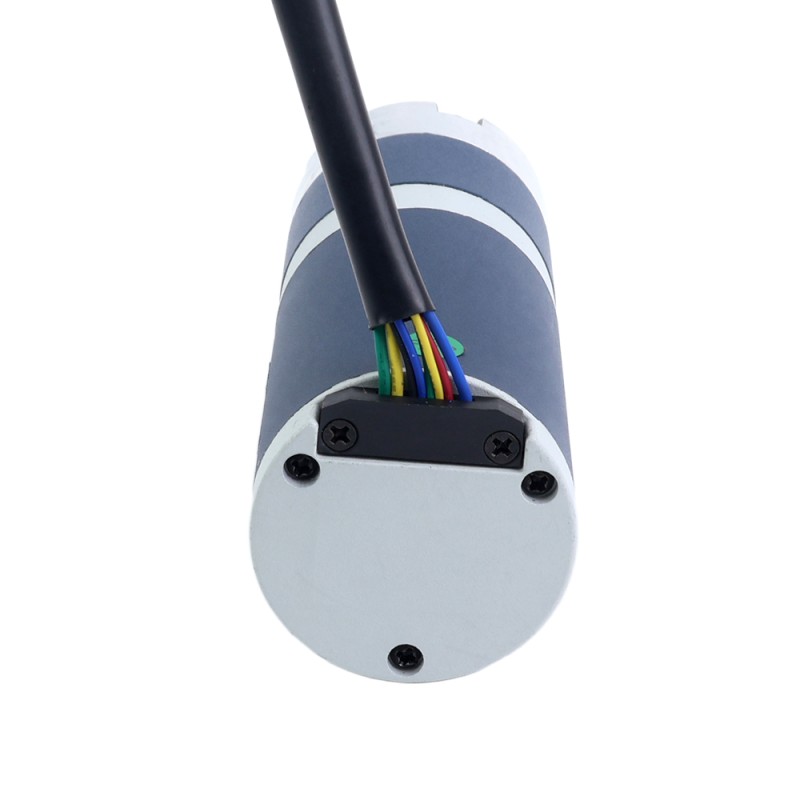

Motor Wires			Hall Wires
U	V	W	+	-	Ha	Hb	Hc
Yellow	Green	Blue	Red	Black	Yellow	Green	Blue
20AWG			26AWG

Gear Ratio Options

For optional ratios and their corresponding rated speeds/torques, please refer to the table.

Stage	1-Stage			2-Stage
Ratio	3.71	5.18	6.75	13.7	19.2	25	28.9	35	45.6
Speed(rpm)	809	579	444	219	156	120	104	86	66
Torque(Nm)	0.43	0.59	0.77	1.40	2.00	2.60	3.00	3.60	4.70

Stage	3-Stage
Ratio	50.9	58.9	71.2	82.3	92.7	99.5	115.1	124	149.9	181.3	236.1	307.5
Speed(rpm)	59	51	42	36	32	30	26	24	20	17	13	9.8
Torque(Nm)	4.70	6.10	7.30	8.50	9.60	10.30	11.90	12.80	15.50	18.70	17.00	16.50

The recommended BLDC driver to match this motor is BLD-305S.

Product Type
Product Type	Geared BLDC Motor
Electrical Specification
No. of Phase	3
Rated Current(A)	3.33
Rated Power(W)	60
Rated Speed(rpm)	120
Rated Torque(Nm)	3.8
Rated Voltage(V)	24
Physical Specification
Body Length(mm)	144.0
Frame Size(mm)	52 Round
Gear Ratio(xx:1)	25
Gearbox Type	Planetary Gearbox
Inventory Method	Dedicated Inventory
Output Shaft Type	Keyway
Shaft Diameter(mm)	12
Shaft Length(mm)	28
With Gearbox	Yes
