25W 110VAC 60Hz 135RPM 1.30Nm(184.10oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor

25W 110VAC 60Hz 135RPM 1.30Nm(184.10oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 4IK25GN-AT/4GN10RC | StepperOnline CA
25W 110VAC 60Hz 135RPM 1.30Nm(184.10oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 4IK25GN-AT/4GN10RC | StepperOnline CA
25W 110VAC 60Hz 135RPM 1.30Nm(184.10oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 4IK25GN-AT/4GN10RC | StepperOnline CA
25W 110VAC 60Hz 135RPM 1.30Nm(184.10oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 4IK25GN-AT/4GN10RC | StepperOnline CA
25W 110VAC 60Hz 135RPM 1.30Nm(184.10oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 4IK25GN-AT/4GN10RC | StepperOnline CA
25W 110VAC 60Hz 135RPM 1.30Nm(184.10oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 4IK25GN-AT/4GN10RC | StepperOnline CA
25W 110VAC 60Hz 135RPM 1.30Nm(184.10oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 4IK25GN-AT/4GN10RC | StepperOnline CA
25W 110VAC 60Hz 135RPM 1.30Nm(184.10oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 4IK25GN-AT/4GN10RC | StepperOnline CA
25W 110VAC 60Hz 135RPM 1.30Nm(184.10oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 4IK25GN-AT/4GN10RC | StepperOnline CA
25W 110VAC 60Hz 135RPM 1.30Nm(184.10oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 4IK25GN-AT/4GN10RC | StepperOnline CA
25W 110VAC 60Hz 135RPM 1.30Nm(184.10oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 4IK25GN-AT/4GN10RC | StepperOnline CA
25W 110VAC 60Hz 135RPM 1.30Nm(184.10oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 4IK25GN-AT/4GN10RC | StepperOnline CA
25W 110VAC 60Hz 135RPM 1.30Nm(184.10oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 4IK25GN-AT/4GN10RC | StepperOnline CA
25W 110VAC 60Hz 135RPM 1.30Nm(184.10oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 4IK25GN-AT/4GN10RC | StepperOnline CA
25W 110VAC 60Hz 135RPM 1.30Nm(184.10oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 4IK25GN-AT/4GN10RC | StepperOnline CA
25W 110VAC 60Hz 135RPM 1.30Nm(184.10oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 4IK25GN-AT/4GN10RC | StepperOnline CA
25W 110VAC 60Hz 135RPM 1.30Nm(184.10oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 4IK25GN-AT/4GN10RC | StepperOnline CA
25W 110VAC 60Hz 135RPM 1.30Nm(184.10oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 4IK25GN-AT/4GN10RC | StepperOnline CA
25W 110VAC 60Hz 135RPM 1.30Nm(184.10oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 4IK25GN-AT/4GN10RC | StepperOnline CA
25W 110VAC 60Hz 135RPM 1.30Nm(184.10oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor - 4IK25GN-AT/4GN10RC | StepperOnline CA
4IK25GN-AT/4GN10RC
Output Shaft TypeHollow
Input Voltage(V)1PH 110VAC
Frame Size(mm)80 x 80
Current(A)0.5
Question

Downloads

4IK25GN-XXT_4GNXXRX_manual.pdfPDF · 1.71MB
Same series
ModelOutput Shaft TypeInput Voltage(V)Frame Size(mm)Current(A)PriceStock
4IK25GN-AT/4GN100RCHollow1PH 110VAC80 x 800.5C$80.04In stock
4IK25GN-AT/4GN100RTKeyway1PH 110VAC80 x 800.5C$80.04In stock
4IK25GN-AT/4GN10RCHollow1PH 110VAC80 x 800.5C$77.92In stock
4IK25GN-AT/4GN10RTKeyway1PH 110VAC80 x 800.5C$77.92In stock
4IK25GN-AT/4GN15RCHollow1PH 110VAC80 x 800.5C$77.92In stock
4IK25GN-AT/4GN15RTKeyway1PH 110VAC80 x 800.5C$77.92In stock
4IK25GN-AT/4GN180RCHollow1PH 110VAC80 x 800.5C$80.04In stock
4IK25GN-AT/4GN180RTKeyway1PH 110VAC80 x 800.5C$80.04In stock
4IK25GN-AT/4GN20RCHollow1PH 110VAC80 x 800.5C$77.92In stock
4IK25GN-AT/4GN20RTKeyway1PH 110VAC80 x 800.5C$77.92In stock
4IK25GN-AT/4GN30RCHollow1PH 110VAC80 x 800.5C$77.92In stock
4IK25GN-AT/4GN30RTKeyway1PH 110VAC80 x 800.5C$77.92In stock
4IK25GN-AT/4GN50RCHollow1PH 110VAC80 x 800.5C$77.92In stock
4IK25GN-AT/4GN50RTKeyway1PH 110VAC80 x 800.5C$77.92In stock
4IK25GN-CT/4GN100RCHollow1PH 220VAC80 x 800.24C$80.04In stock
4IK25GN-CT/4GN100RTKeyway1PH 220VAC80 x 800.24C$80.04In stock
4IK25GN-CT/4GN10RCHollow1PH 220VAC80 x 800.24C$77.92In stock
4IK25GN-CT/4GN10RTKeyway1PH 220VAC80 x 800.24C$77.92In stock
4IK25GN-CT/4GN15RCHollow1PH 220VAC80 x 800.24C$77.92In stock
4IK25GN-CT/4GN15RTKeyway1PH 220VAC80 x 800.24C$77.92In stock
4IK25GN-CT/4GN180RCHollow1PH 220VAC80 x 800.24C$80.04In stock
4IK25GN-CT/4GN180RTKeyway1PH 220VAC80 x 800.24C$80.04In stock
4IK25GN-CT/4GN20RCHollow1PH 220VAC80 x 800.24C$77.92In stock
4IK25GN-CT/4GN20RTKeyway1PH 220VAC80 x 800.24C$77.92In stock
4IK25GN-CT/4GN30RCHollow1PH 220VAC80 x 800.24C$77.92In stock
4IK25GN-CT/4GN30RTKeyway1PH 220VAC80 x 800.24C$77.92In stock
4IK25GN-CT/4GN50RCHollow1PH 220VAC80 x 800.24C$77.92In stock
4IK25GN-CT/4GN50RTKeyway1PH 220VAC80 x 800.24C$77.92In stock
4IK25GN-S/S3T/4GN100RCHollow3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12C$80.04In stock
4IK25GN-S/S3T/4GN100RTKeyway3PH 220VAC/380VAC80 x 800.26,0.21,0.15,0.12C$80.04In stock
View all in category
25W 110VAC 60Hz 135RPM 1.30Nm(184.10oz.in) Flange 80mm Right Angle Gearbox Hollow Shaft Single-phase AC Induction Motor
This 80x80mm hollow shaft single-phase AC induction gear motor is powered by 110VAC and has a gear r... Read More
0 reviews • Write a review
from
C$77.92
5 + C$75.84
10 + C$73.85
50 + C$71.98
100 + C$70.18

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

This 80x80mm hollow shaft single-phase AC induction gear motor is powered by 110VAC and has a gear ratio of 10, a torque of 1.30Nm(184.1oz.in) and a speed of 135rpm. The right angle gearboxes are compact in size, run smoothly and can handle high torques. The simple brushless structure, high reliability, relatively high efficiency and long service life make it an excellent cost-effective choice for constant speed applications like industrial equipments, household appliances, power supply systems, transportation, mechanical equipment, etc.

Electrical Specifications

  • P/N: 4IK25GN-AT/4GN10RC
  • Gearbox Type: Right Angle Gearbox
  • Output Power: 25W
  • Voltage: 1PH 110VAC
  • Frequency: 60Hz
  • Current: 0.50A
  • Gear Ratio: 10:1
  • Speed: 135rpm
  • Torque: 1.30Nm(184.1oz.in)
  • Capacitor: 7.0μF/250VAC

Physical Specifications

  • Frame Size: 80x80mm
  • Body Length: 201mm
  • Shaft Type: Hollow
  • Bore Diameter: Φ15mm
  • Weight: 3.6kg

Wiring

Electrical Specification
Current(A) 0.5
Frequency(Hz) 60
Input Voltage(V) 1PH 110VAC
Output Power(W) 25
Speed(rpm) 135
Torque(Nm) 1.3
Physical Specification
Frame Size(mm) 80 x 80
Gear Ratio(xx:1) 10
Gearbox Type Right Angle Gearbox
Output Shaft Type Hollow

Write a review

Not published. We only use it to follow up on your review.
Note: HTML is not translated!
Rating
Bad Good
Captcha
Quickview

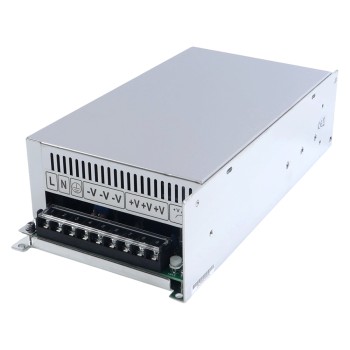

500W 36V 14A 115/230V Switching Power Supply Stepper Motor CNC Router Kits
500W 36V 14A 115/230V Switching Power Supply Stepper Motor CNC Router Kits
This professional 500W 36V 14A Switching CNC Power Supply can be widely used in Industrial Automation and CNC Stepper/Servo System. Powerful functio..
from
C$67.12
Add to Cart
Add to Wish List Compare this Product
Quickview
Digital Stepper Driver 1.8-5.6A 20-50VDC for Nema 23, 24, 34 Stepper Motor
🔥 Bestseller
Digital Stepper Driver 1.8-5.6A 20-50VDC for Nema 23, 24, 34 Stepper Motor
The DM556T is a digital stepper driver with simple design and easy setup. By implementing advanced stepper control technology, this stepper driver is ..
from
C$33.23
Add to Cart
Add to Wish List Compare this Product
Quickview
1 Axis Stepper CNC Kit 2.00Nm(283.22oz.in) Nema 23 Stepper Motor & Driver
1 Axis Stepper CNC Kit 2.00Nm(283.22oz.in) Nema 23 Stepper Motor & Driver
This CNC kit included: 1 x DM542T: Digital Stepper Driver 1.0-4.5A 18-50VDC for Nema 17, 23, 24 Stepper Motor 1 x 23HS30-2804S: Nema 23 Bipol..
from
C$42.05
Add to Cart
Add to Wish List Compare this Product
Quickview
400W 48V 8.30A 115/230V Switching Power Supply Stepper Motor CNC Router Kits
400W 48V 8.30A 115/230V Switching Power Supply Stepper Motor CNC Router Kits
This professional 400W 48V 8.3A Switching CNC Power Supply can be widely used in Industrial Automation and CNC Machines. 115V and 230V can be chosen..
from
C$39.15
Add to Cart
Add to Wish List Compare this Product
Quickview

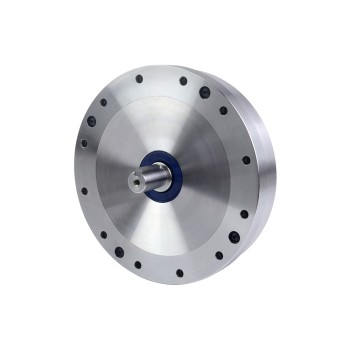

HHT Series Harmonic Drive Gearbox Φ142mm Ratio 100:1 Backlash 20arcsec 14mm Input Diameter
Pre-order
HHT Series Harmonic Drive Gearbox Φ142mm Ratio 100:1 Backlash 20arcsec 14mm Input Diameter
This harmonic gearbox has a gear ratio of 100, a frame size of Φ142mm and an input shaft diameter of 14mm and a maximum backlash of 20arcsec. The HHT..
from
C$491.51
Add to Cart
Add to Wish List Compare this Product
Quickview
Handheld Intelligent Setting Unit for Y Series Closed Loop Driver
Handheld Intelligent Setting Unit for Y Series Closed Loop Driver
Handheld Intelligent Setting Unit for CL57Y & CL86Y...
from
C$13.04
Add to Cart
Add to Wish List Compare this Product
Quickview

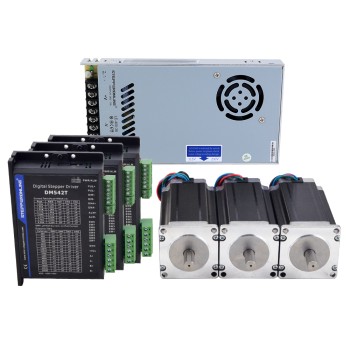

S Series 3 Axis CNC Router Kit 3.0Nm(425oz.in) Nema 23 Stepper Motor & Driver
