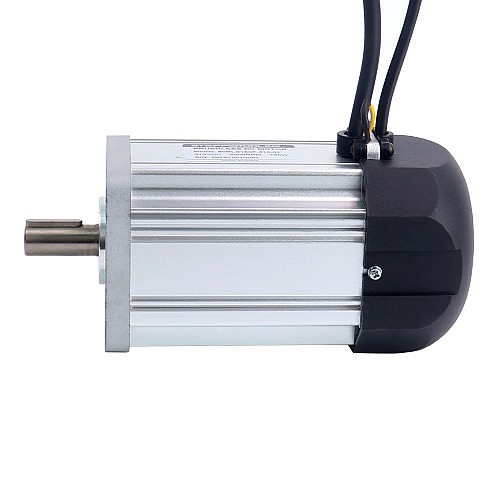

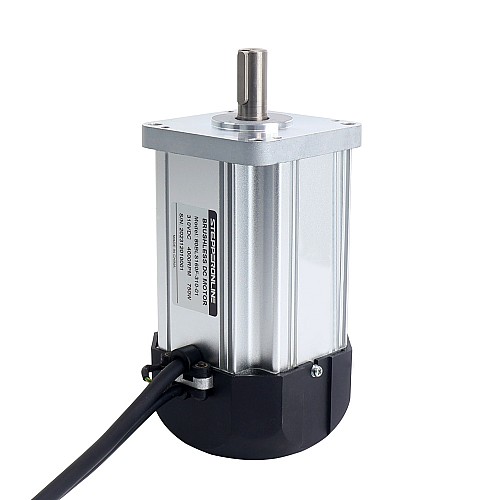

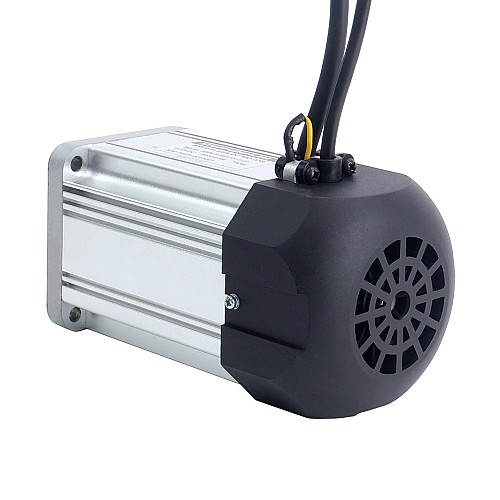

310V 4000RPM 1.8Nm 750W 3.0A Square 80x80x159mm Brushless DC Motor w/ Radiator Fan

0 reviews - Write a review

C$160.40

5 + C$155.09

10 + C$150.13

50 + C$145.47

100 + C$141.10

In Stock: Pre-order
Model: 80BLS160F-310-01
Gross Weight: 3.04kg
Certificated: ISO, CE

Sold: 0

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

This 310V 4000RPM 1.8Nm 750W high-voltage brushless DC motor is made of high-quality materials and has a sturdy construction. High-voltage version of brushless DC delivers efficient performance and consistent torque output.

Electrical Specification

Manufacturer Part Number: 80BLS160F-310-01
Phase: 3
Poles: 4
Rated Power: 750W
Rated Voltage: 310VDC
Rated Speed: 4000±10%RPM
Rated Current: 3.0±10%A
Rated Torque: 1.8Nm(254.9oz.in)
Insulation Class: B 130°C[266°F]
Resistance/phase: 4.2±10%Ohms
Inductance/phase: 12.0±20%mH

Physical Specification

Frame Size: 80 x 80mm
Body Length: 159mm
Shaft Diameter: Φ14mm
Shaft Length: 35mm
Key-way Length: 25mm
Number of Leads: 9
Lead Length: 900mm
Weight: 2.8kg

Connection

Motor				Hall
U	V	W	PE	+5V	GND	Hall A	Hall B	Hall C
Yellow	Green	Blue	Yellow/Green	Red	Black	Yellow	Green	Blue

Product Type
Product Type	BLDC Motor
Electrical Specification
No. of Phase	3
Rated Current(A)	3.0
Rated Power(W)	750
Rated Speed(rpm)	4000
Rated Torque(Nm)	1.8
Rated Voltage(V)	310
Physical Specification
Body Length(mm)	159
Frame Size(mm)	80 x 80
Inventory Method	Shared Inventory
IP Rating	20
Output Shaft Type	Keyway
Shaft Diameter(mm)	14
Shaft Length(mm)	35
With Gearbox	No
