4 Axis CNC Router Kit 13.0Nm(1841oz.in) Nema 34 Stepper Motor & Driver

0 reviews - Write a review

C$957.87

5 + C$916.22

10 + C$878.04

50 + C$842.92

100 + C$810.51

In Stock: Pre-order
Model: 4-DM860I-34HS59
Gross Weight: 28.10kg
Certificated: ISO, CE, UKCA, RoHS

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

This product has a minimum quantity of 10

What Does Pre-order Mean?

A pre-order product is an item not currently in stock. When you place your order, we will begin production or procurement specifically for your purchase.

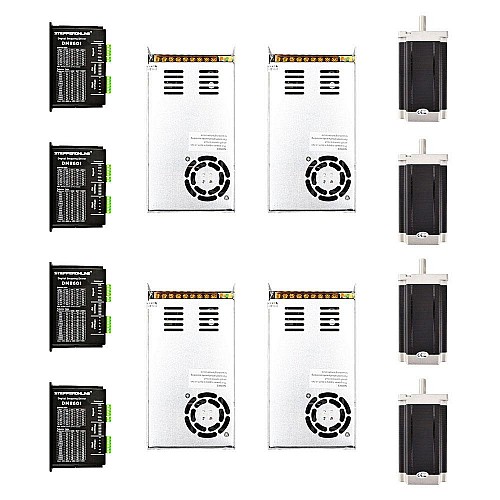

This CNC kit included:

4 x Digital Stepper Drive 2.4-7.2A 20-80VDC for Nema 34 Stepper Motor CNC Kit
4 x 13Nm(1841oz.in) of Nema 34 Stepper Motor
4 x 350W 60V 5.9A 115/230V Switching Power Supply

Driver Specification

Anti-Resonance provides optimal torque and nulls mid-range instability
Motor auto-identification and parameter auto-configuration technology, offers optimal responses with different motors
Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement
16 selectable microstep resolutions including 400, 800, 1600, 3200, 6400, 12800, 25600, 51200, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 40000
Soft-start with no "jump" when powered on
Input voltage 20-80VDC
8 selectable peak current including 2.40A, 3.08A, 3.77A, 4.45A, 5.14A, 5.83A, 6.52A, 7.20A
Pulse input frequency up to 200KHz, TTL compatible and optically isolated input
Automatic idle-current reduction
Suitable for 2-phase and 4-phase motors
Support PUL/DIR and CW/CCW modes
Over-voltage, over-current protection

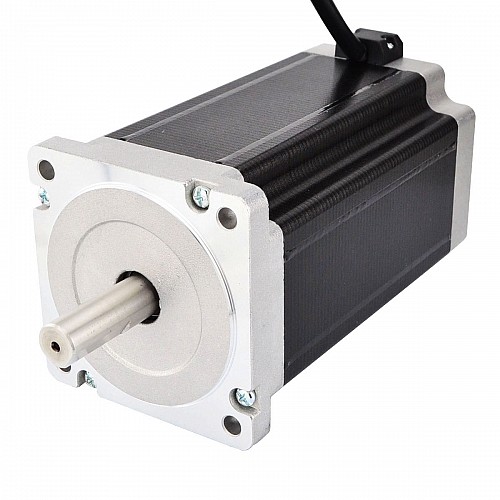

Motor Specification

Manufacturer Part Number: 34HS59-5004S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 13Nm(1841oz.in)
Rated Current/phase: 5A
Phase Resistance: 1ohms
Inductance: 11mH±20%(1KHz)
Frame Size: 86 x 86mm
Body Length: 151.5mm
Shaft Diameter: Φ14mm
Shaft Length: 37mm
D-cut Length: 25mm
Number of Leads: 4
Lead Length: 500mm
Weight: 5kg

Connection

A+	A-	B+	B-
Red	Green	Yellow	Blue

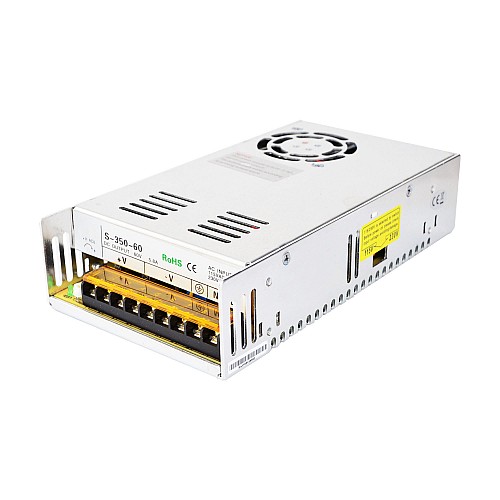

Power Specification

60V DC 5.9A output
AC input voltage range: 93~132V/176~264VAC
115V/230V AC selected by switch
High efficiency low cost
Forced air cooling by built-in DC fan
Low output ripple and yawp
Over current, over voltage, short circuit and overheat protections
215*115*50mm(L*W*H)

Product Type
Product Type	Open Loop Stepper Kit
Electrical Specification
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	1300
Holding Torque(oz.in)	1841
Input Voltage Reference(V)	20 - 80DC
No. of Phase	2
Number of Axes	4
Physical Specification
Frame Size(mm)	Nema 34 (86 x 86)
Output Shaft Type	D
Product Series	TS Series
Shaft Diameter(mm)	14

File	Size
34HS59-5004S.STEP	1.94MB	Download
34HS59-5004S_Torque_Curve.pdf	171.88KB	Download
DM860I.pdf	625.95KB	Download
DM860I.STEP	3.1MB	Download
S-350-60.pdf	128.44KB	Download
34HS59-5004S_Full_Datasheet.pdf	122.91KB	Download
