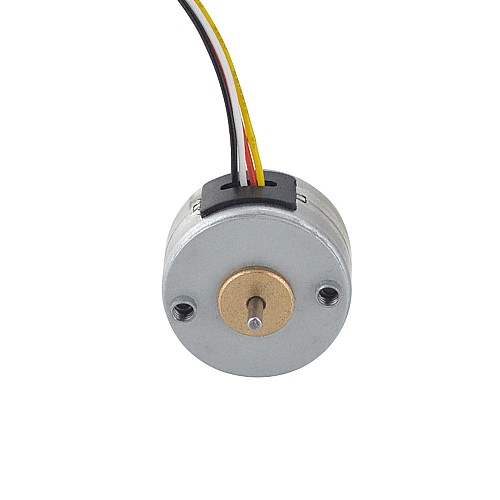

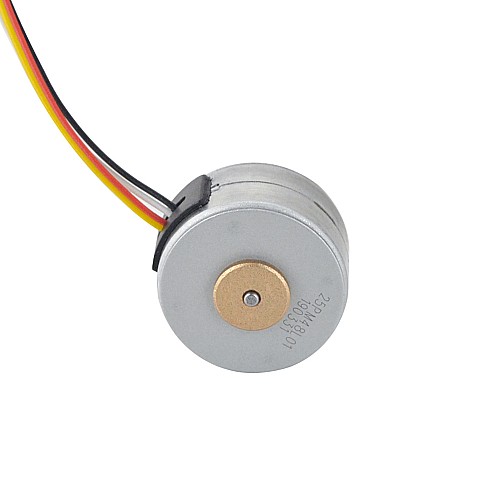

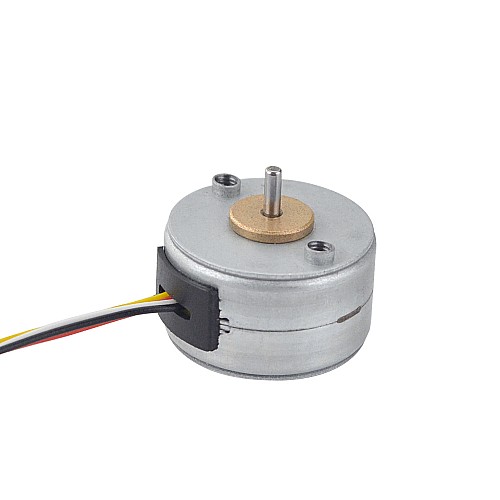

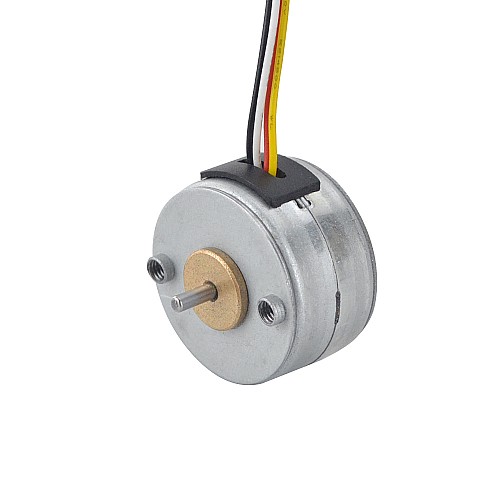

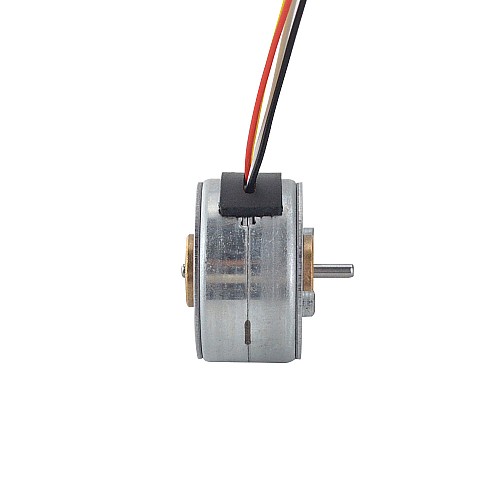

Φ25x15mm PM Stepper motor 7.5deg 14.7mN.m(2.082oz.in) 0.5A 4 Wires

0 reviews - Write a review

C$5.70

5 + C$5.28

10 + C$5.11

50 + C$4.93

100 + C$4.77

In Stock: 10000
Model: 25PM48L01
Gross Weight: 0.05kg
Certificated: ISO, CE

Sold: 103

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

Electrical Specification

Manufacturer Part Number: 25PM48L01
Motor Type: PM Stepper
Phase: 2
Step Angle: 7.5deg
Rated Current/phase: 0.5A
Holding Torque: 14.7mN.m(2.082oz.in)
Detent Torque: 3.92mN.m(0.555oz.in)
Phase Resistance: 10±7%ohms(20℃)
Insulation Class: B 130°C[266°F]
Inductance: 5.6mH±20%
Rotor Inertia: Less than 1.0g.cm²
Life: 3000h MIN(20℃,100pps)

Physical Specification

Frame Size: Φ25mm
Body Length: 15mm
Shaft Diameter: Φ2mm
Shaft Length: 7.5mm

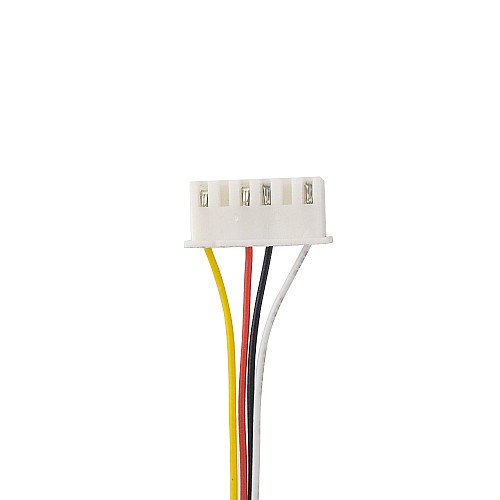

Number of Leads: 4 with connector XH-6
Lead Length: 250mm
Weight: 29.7g

Connection

A+	A-	B+	B-
Yellow	Red	White	Black

Product Type
Product Type	PM Rotary Stepper Motor
Electrical Specification
Detent Torque(mN.m)	3.92
Detent Torque(oz.in)	0.555
Holding Torque(mN.m)	14.7
Holding Torque(oz.in)	2.082
Inductance(mH)	5.6
No. of Phase	2
Phase Resistance(ohms)	10
Rated Current(A)	0.5
Step Angle(deg.)	7.5
Physical Specification
Body Length(mm)	15
Frame Size(mm)	Φ25
Inventory Method	Dedicated Inventory
IP Rating	30
Lead Length(mm)	250
No. of Lead	4
Shaft Diameter(mm)	2
Shaft Length(mm)	7.5
