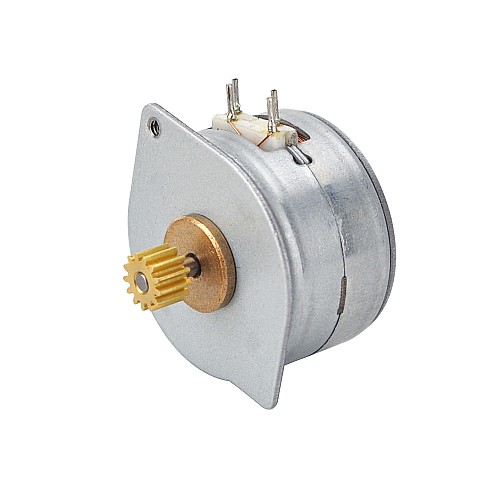

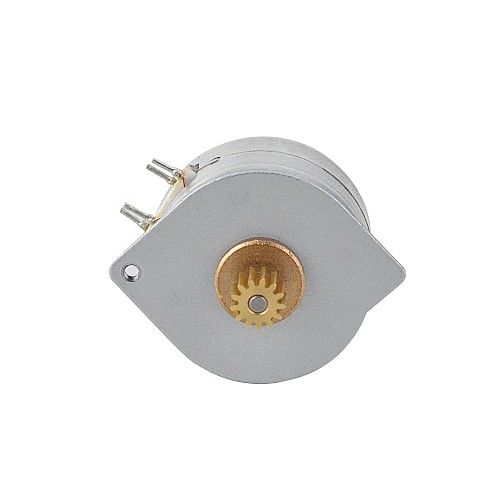

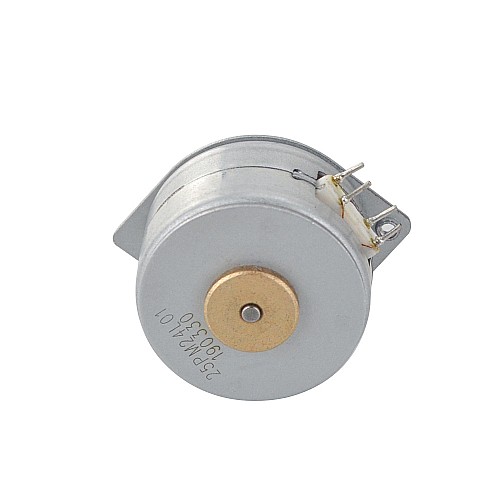

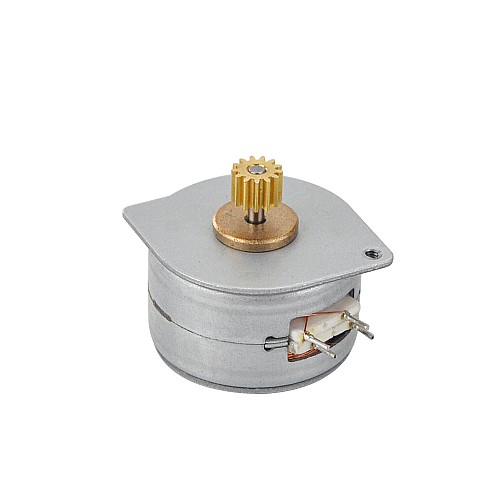

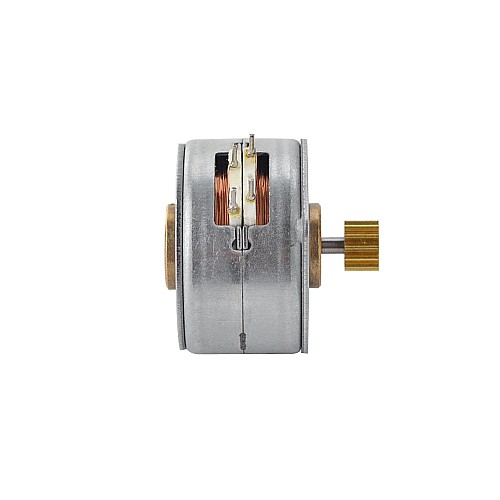

Φ25x16mm PM Stepper motor 15deg 12.25mN.m(1.735oz.in) 0.275A 4 Wires

0 reviews - Write a review

C$4.93

5 + C$4.57

10 + C$4.43

50 + C$4.28

100 + C$4.13

In Stock: 10000
Model: 25PM24L01
Gross Weight: 0.05kg
Certificated: ISO, CE

Available Options

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

How to Choose a Shipping Warehouse？

For customers in the US, the UK, EU, Australia and Russia, please prioritize selecting a local warehouse. For the EU countries, choose the German warehouse.
The benefits of this selection include faster delivery times and lower overall costs, as no customs duties are incurred.

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Electrical Specification

Manufacturer Part Number: 25PM24L01
Motor Type: PM Stepper
Phase: 2
Step Angle: 15deg
Rated Current/phase: 0.275A
Holding Torque: 12.25mN.m(1.735oz.in)
Detent Torque: 3.92mN.m(0.555oz.in)
Phase Resistance: 16±7%ohms(20℃)
Insulation Class: B 130°C[266°F]
Inductance: 9.46mH±20%(1KHz)
Rotor Inertia: Less than 1.0g.cm²
Life: 3000h MIN(20℃, 100pps)

Physical Specification

Frame Size: Φ25mm
Body Length: 16mm
Shaft Diameter: Φ2mm
Shaft Length: 8mm
Number of Teeth: 13
Pully Module: 0.4mm
Pitch Diameter: Φ5.2mm
Addendum Circle Diameter: Φ6mm
Pressure Angle: 20 deg
Number of Leads: 4
Weight: 33.4g

Please note that this motor does not have cables, you need to prepare them yourself.

Product Type
Product Type	PM Rotary Stepper Motor
Electrical Specification
Detent Torque(mN.m)	3.92
Detent Torque(oz.in)	0.555
Holding Torque(mN.m)	12.25
Inductance(mH)	9.46
No. of Phase	2
Phase Resistance(ohms)	16
Rated Current(A)	0.275
Step Angle(deg.)	15
Physical Specification
Body Length(mm)	16
Frame Size(mm)	Φ25
Inventory Method	Dedicated Inventory
IP Rating	30
No. of Lead	4
Shaft Diameter(mm)	2
Shaft Length(mm)	8
