48V 200W 100RPM Geared BLDC Motor 14.03Nm(1986.97oz.in) 30:1 Right Angle Gearbox

0 reviews - Write a review

C$153.25

5 + C$148.90

10 + C$144.79

50 + C$140.91

100 + C$137.23

In Stock: 200
Model: F6B200-48GU-30S/6GU30RC
Gross Weight: 7.25kg
Certificated: ISO, CE

Click country for real-time stock

Ships from

China

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

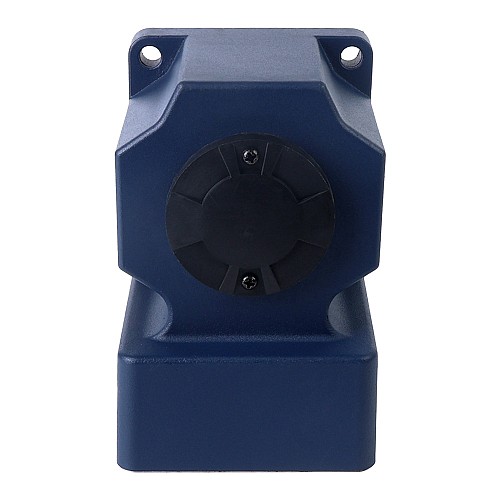

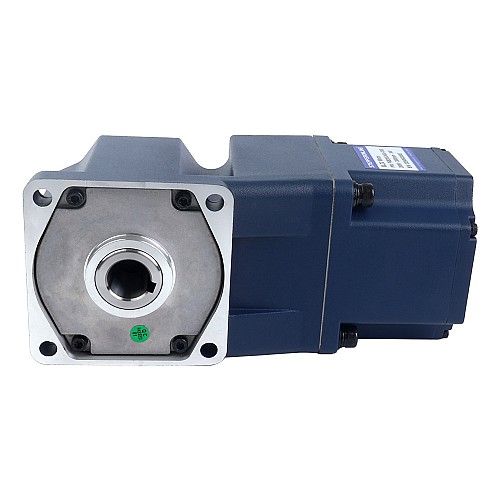

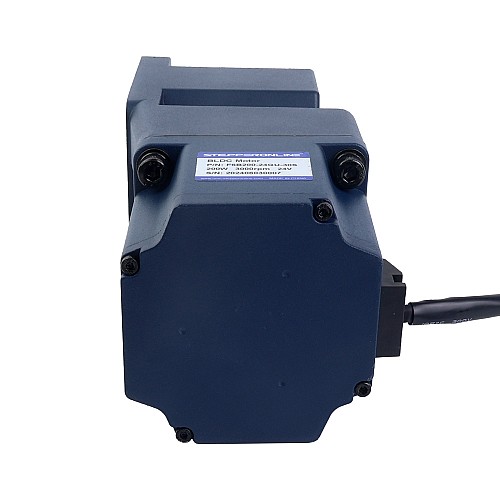

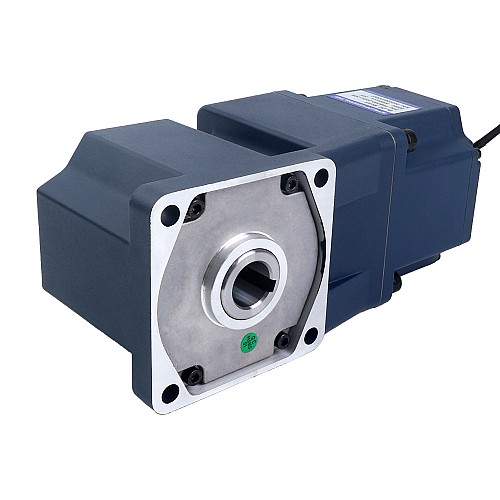

This is a 48V 200W brushless DC gear motor with a flange of 104x104mm. The built-in 30:1 hollow shaft right angle gearbox brings speed and torque to 100rpm and 14.03Nm(1986.97oz.in). The right-angle gearbox's advantages of efficient transmission, strong load-bearing capacity, ability to change transmission direction and long life make this motor widely used in industrial production automation, logistics packaging equipment, medical equipment, mechanical equipment, photography equipment and other fields.

The recommended BLDC driver to match this motor is BLD-510B.

Electrical Specifications

P/N: F6B200-48GU-30S/6GU30RC
Phase: 3
Poles: 10
Rated Current: 5.50A
Rated Voltage: 48V
Rated Speed: 100rpm
Rated Torque: 14.03Nm(1986.97oz.in)
Rated Power: 200W
Insulation Class: E 120°C[248°F]
Insulation Resistance: 50MΩ Min @500V
Sensor: Hall Sensor
Life: More than 5000 hours

Physical Specifications

Frame Size: 104x104mm
Body Length: 250mm

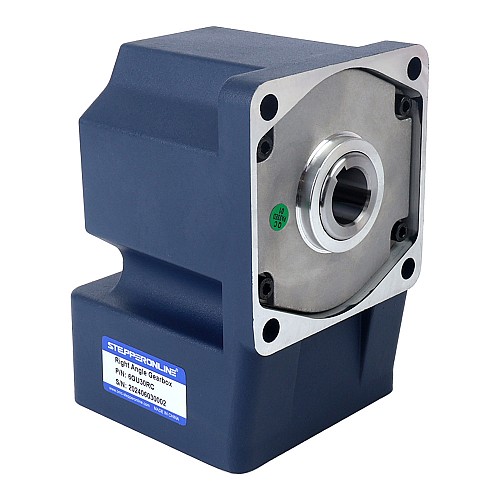

Gearbox Type: Right Angle Gearbox
Gearbox Ratio: 30:1
Shaft Type: Hollow
Bore Diameter: Φ22mm
Bearing: Deep Groove Ball

Connection

1	2	3	4	5	6	7	8
U	W	Hb	Ha	V	-	Hc	+
Yellow(Thick)	Blue(Thick)	Green	Yellow	Green(Thick)	Black	Blue	Red

Product Type
Product Type	Geared BLDC Motor
Electrical Specification
No. of Phase	3
Rated Current(A)	5.50
Rated Power(W)	200
Rated Speed(rpm)	100
Rated Torque(Nm)	14.03
Rated Voltage(V)	48
Physical Specification
Body Length(mm)	250
Frame Size(mm)	104 x 104
Gear Ratio(xx:1)	30
Gearbox Type	Right Angle Gearbox
Output Shaft Type	Hollow
With Gearbox	Yes
