48V 250W 100RPM 20.00Nm(2832.23oz.in) 30:1 Geared Brushless DC Motor w/ Parallel Hollow Shaft Gearbox
This is a 48V 250W BLDC gear motor with a flange of 104x104mm. The built-in 30:1 parallel hollow sha... Read More
0 reviews • Write a review
from
C$139.79
5 + C$135.84
10 + C$132.08
50 + C$128.54
100 + C$125.18

Click country for real-time stock

Add to Cart
Add to Wish List Compare this Product
Easy Returns

Return within 30 days of delivery. Contact us first and we'll take it from there.

Read more
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

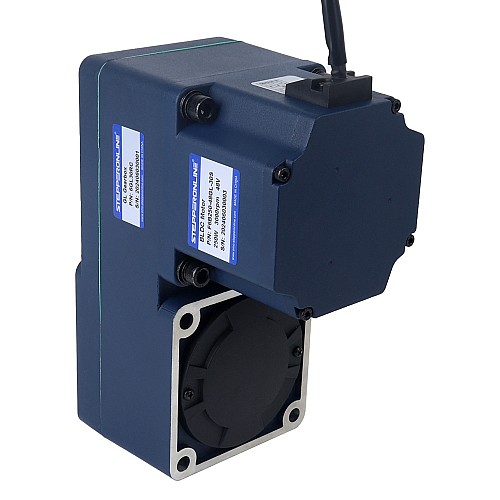

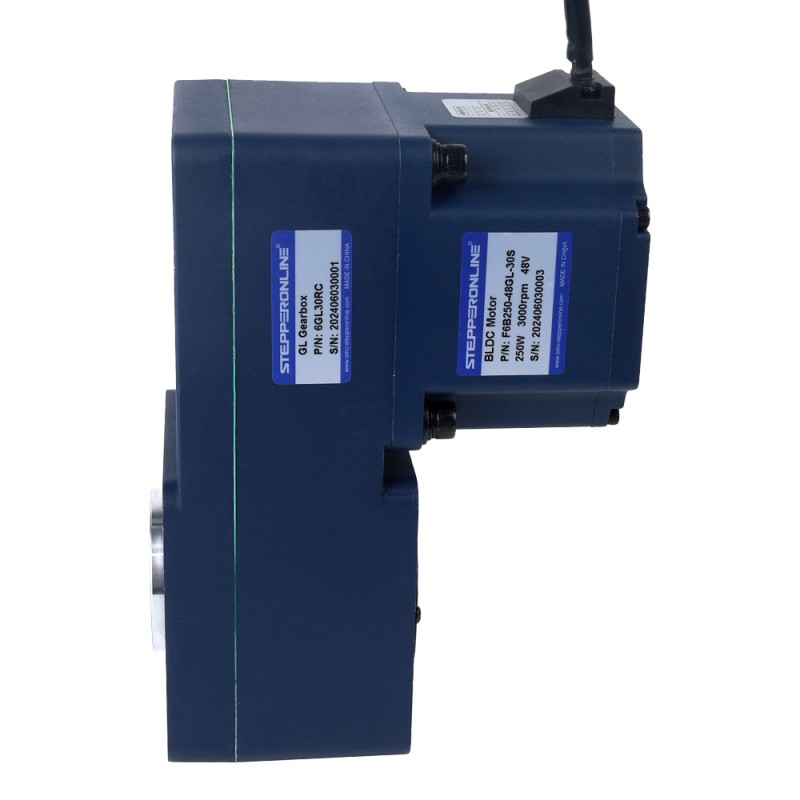

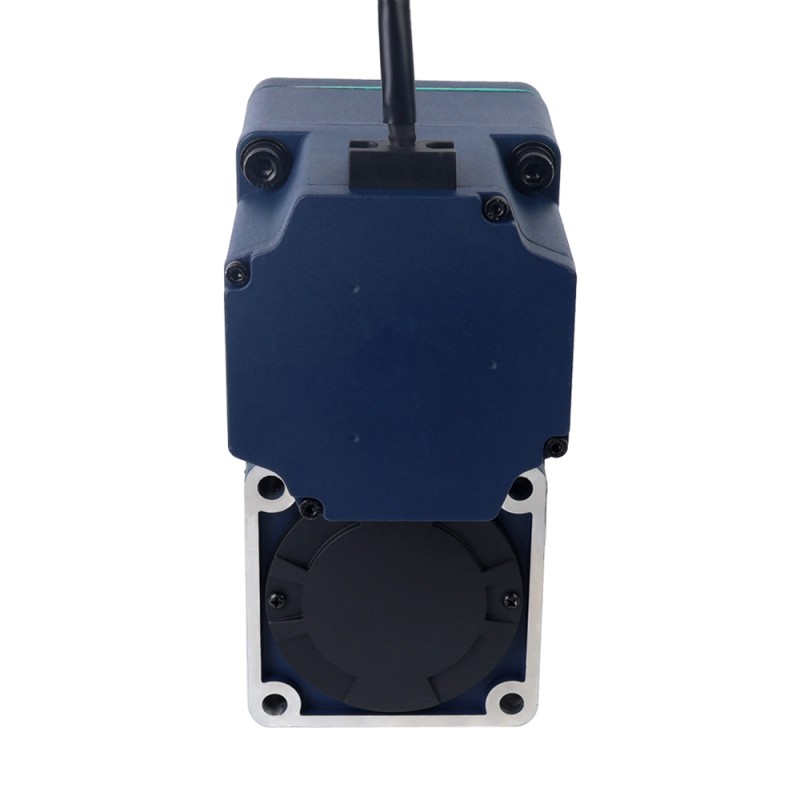

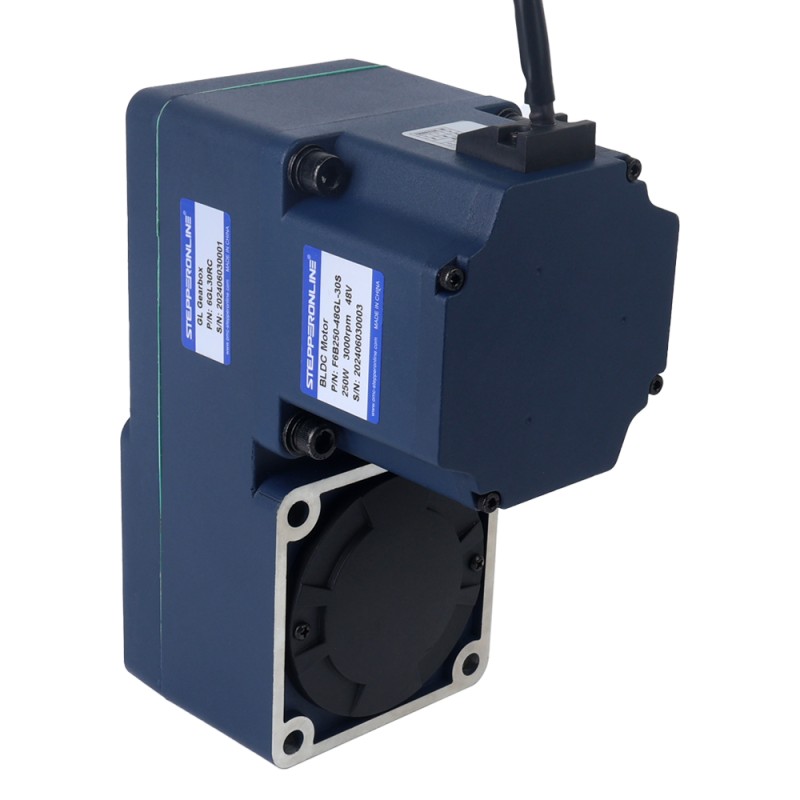

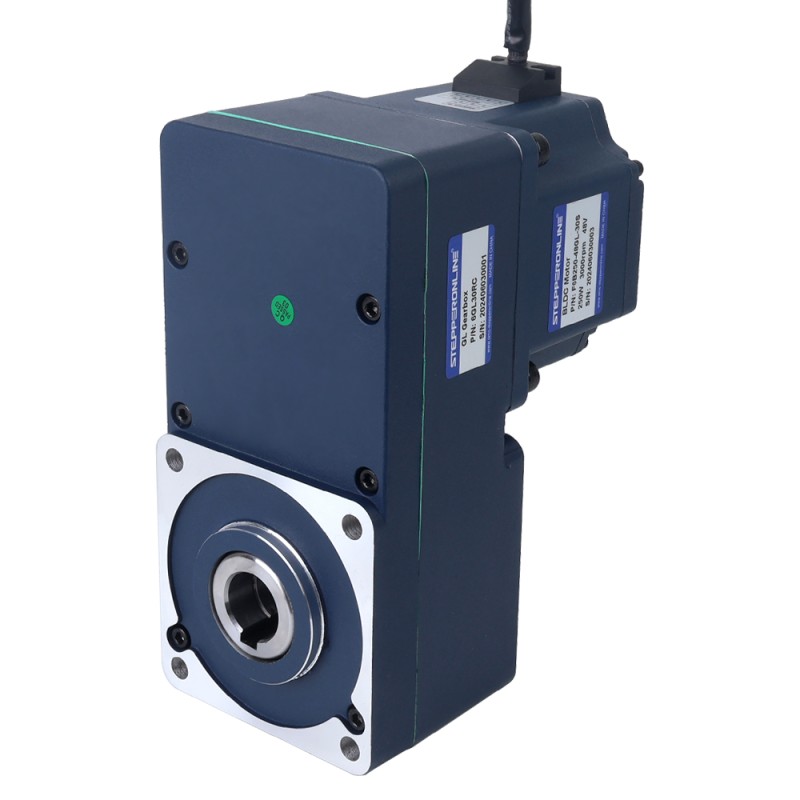

This is a 48V 250W BLDC gear motor with a flange of 104x104mm. The built-in 30:1 parallel hollow shaft gearbox brings speed and torque to 100rpm and 20.00Nm(2832.23oz.in). Due to its compact structure, high efficiency, low noise, long life, strong controllability, brushless DC gear motors are widely used in industrial automation, home appliances, medical equipment, automotive industry and aerospace fields,etc.

The recommended BLDC driver to match this motor is BLD-510B.

Electrical Specifications

  • P/N: F6B250-48GL-30S/6GL30RC
  • Phase: 3
  • Poles: 10
  • Rated Current: 6.50A
  • Rated Voltage: 48V
  • Rated Speed: 100rpm
  • Rated Torque: 20.00Nm(2832.23oz.in)
  • No-load Current: 1.10A
  • Rated Power: 250W
  • Insulation Class: E 120°C[248°F]
  • Insulation Resistance: 50MΩ Min @500V
  • Sensor: Hall Sensor
  • Life: More than 5000 hours

Physical Specifications

  • Frame Size: 104x104mm
  • Gearbox Type: Parallel Hollow Shaft Gearbox
  • Gearbox Ratio: 30:1
  • Shaft Type: Hollow

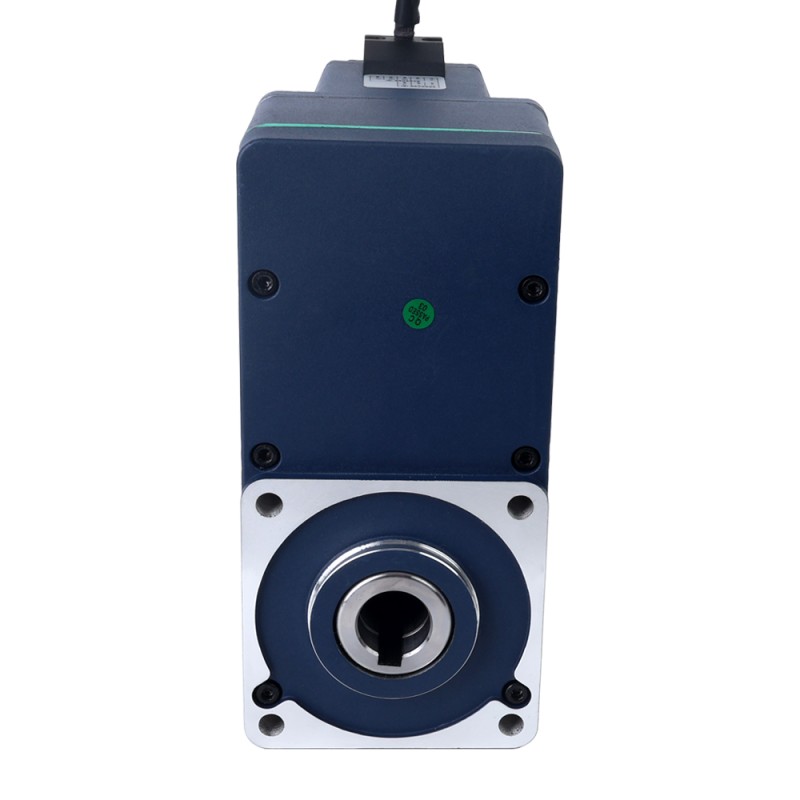

  • Bore Diameter: Φ25mm
  • Bore Length: 88.5mm
  • Bearing: Deep Groove Ball
  • Weight: 7.19kg

Connection

1
2
3
4
5
6
7
8
U
W
Hb
Ha
V
-
Hc
+
Yellow(Thick)
Blue(Thick)
Green
Yellow
Green(Thick)
Black
Blue
Red
Product Type
Product Type Geared BLDC Motor
Electrical Specification
No-load Current(A) 1.1
No. of Phase 3
Rated Current(A) 6.50
Rated Power(W) 250
Rated Speed(rpm) 100
Rated Torque(Nm) 20.00
Rated Voltage(V) 48
Physical Specification
Body Length(mm) 218.9
Frame Size(mm) 104 x 104
Gear Ratio(xx:1) 30
Gearbox Type Parallel Gearbox
Output Shaft Type Hollow
With Gearbox Yes
