A6 Series 1000W PROFINET AC Servo Motor Kit 3000rpm 3.18Nm w/ Brake 17-Bit Absolute Encoder IP67

0 reviews - Write a review

€308.38

5 + €297.83

10 + €287.98

50 + €278.77

100 + €270.13

In Stock: 10000
Model: A6-PN1000H2B1-M17
Gross Weight: 5.65kg
Certificated: ISO, CE

Sold: 18

Click country for real-time stock

Ships from

China

United States

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

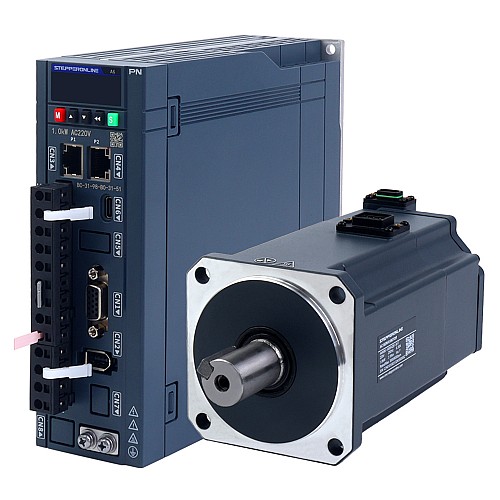

This is an A6 series AC servo motor and driver kit consisting of a 220VAC 1000W motor with the built-in a 17-bit multiturn absolute encoder and a 24V 8.5W brake, and a single/three-phase 220V 1000W servo driver that supports PROFINET communication. The motor provides excellent servo control performance.

This series of servo products is easy to operate, economical and efficient. It has the characteristics of high response, high precision, high speed, high synchronization, etc., supporting one-button self-tuning and automatic inertia detectionetc.
The A6-PN series servo products feature in high cost-efficiency and are compatible with popular PLCs from brands such as Beckhoff and Omron, providing efficient and convenient motion control solutions for various industries.

Items in Kit

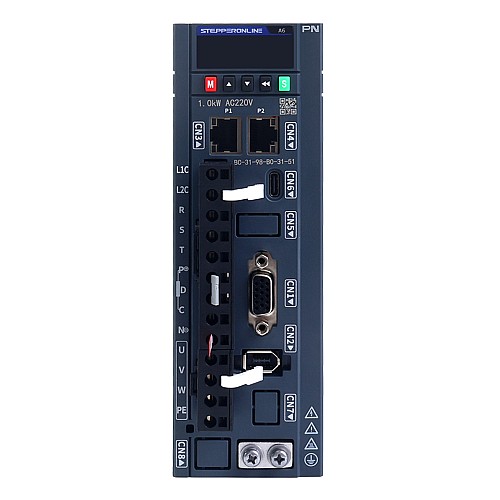

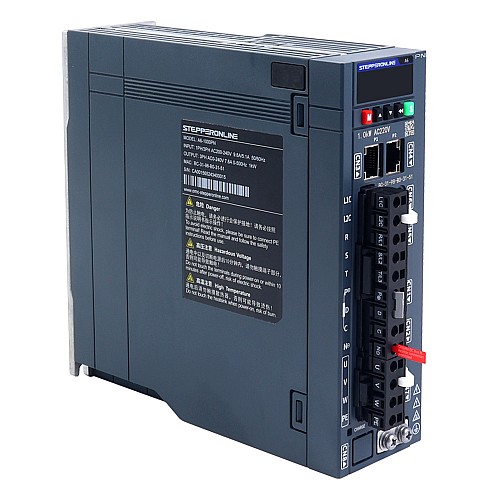

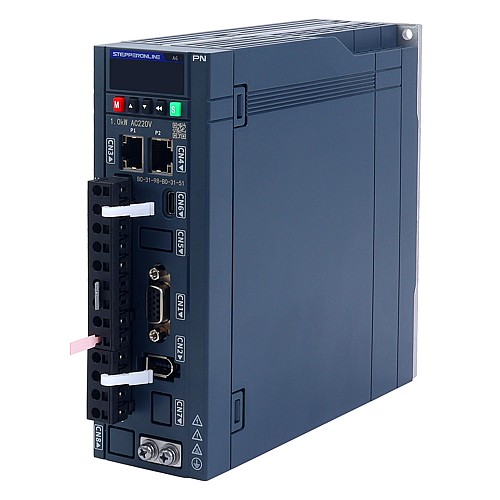

1 x A6-1000PN: 1000W PROFINET AC Servo Motor Driver
1 x A6M80-1000H2B1-M17: 1000W AC Servo Motor 3000rpm 3.18Nm with Brake 17-Bit Encoder IP67
1 x AS7-C-PWB075-3.0: 3.0m Motor Cable
1 x AS7-C-ENC076-3.0: 3.0m Encoder Cable

Servo Driver Specification

Part Number: A6-1000PN
2KHz speed loop bandwith
17-bit absolute encoder
Rated voltage single/three-phase 220VAC
Rated power 1000W
Automatic motor identification
Dimension: 170*174*55mm
Standard PROFIDRIVE protocol, mainstream PROFINET communication PLCs
Built-in dynamic brake function

Servo Motor Specification

Part Number: A6M80-1000H2B1-M17
Rated Voltage: 220VAC
Rated Power: 1000W
Rated Torque: 3.18Nm
Peak Torque: 11.13Nm
Rated Speed: 3000rpm
Peak Speed: 6000rpm
Rated Current: 6.30A
Peak Current: 20.90A
Torque Const: 0.50N.m/A
Back EMF Const: 33.90V/krpm
Resistance: 0.35ohms
Inductance: 2.04mH
Inertia: 2.28kg*m²*10^-4
Poles: 10
Encoder: Magnetic encoder, 17-bit single-turn absolute(multi-turn available)
IP Rating: IP67
Shaft diameter: 19mm
Brake Voltage: 24V DC
Brake Power: 8.5W
Brake Holding Torque: 3.20Nm
Axial Load: Max.147N
Radial Load @ Shaft Length 35mm: Max.392N

Please download A6 series servo debug software here.

If you need longer motor and encoder cable combination, 5m or 10m options are available.

The default encoder in this servo motor can be used as a multi-turn absolute encoder, but it requires a 3m, 5m or 10m encoder cable which has a battery box.

If your power supply voltage is 110VAC, you need to use this transformer TR1200-A220-A120 when using this servo motor.

How to choose the correct Type-C debugging cable? Please refer to this article.

To learn more about the differences between all servo motors sold on STEPPERONLINE, please refer to this article.

Electrical Specification
Control Modes	PROFINET
Encoder Resolution	17bit
Encoder Type	Magnetic Absolute
Input Voltage(V)	220VAC
Integrated STO or not?	No
Peak Speed(rpm)	6000
Peak Torque(Nm)	11.13
Rated Power(W)	1000
Rated Speed(rpm)	3000
Rated Torque(Nm)	3.81
With Brake	Yes
Physical Specification
Aviation Plug or Not	No
Frame Size(mm)	80 x 80
Integrated or Not	No
Inventory Method	Dedicated Inventory
IP Rating	67
Shaft Diameter(mm)	19

File	Size
A6M80-1000H2B1-M17.STEP	6.36MB	Download
A6M80-1000H2B1-M17_Full_Datasheet.pdf	166.19KB	Download
AS7-C-PWB075-3.0.pdf	110.26KB	Download
A6-1000PN.stp	15.21MB	Download
AS7-C-ENC076-3.0_Full_Datasheet.pdf	108.54KB	Download
A6-PNGSD20250822.7z	12.19KB	Download
A6-PN_series_servo_drive_user_manual.pdf	28.11MB	Download
