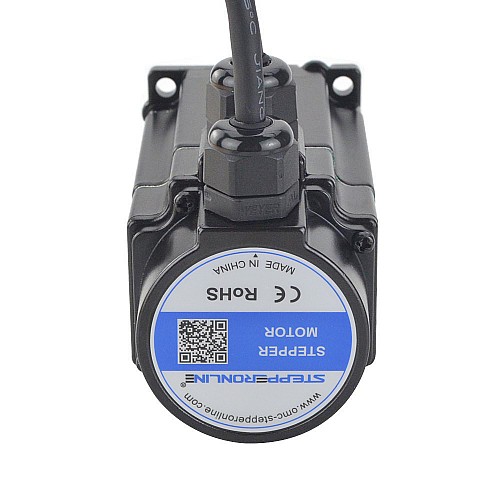

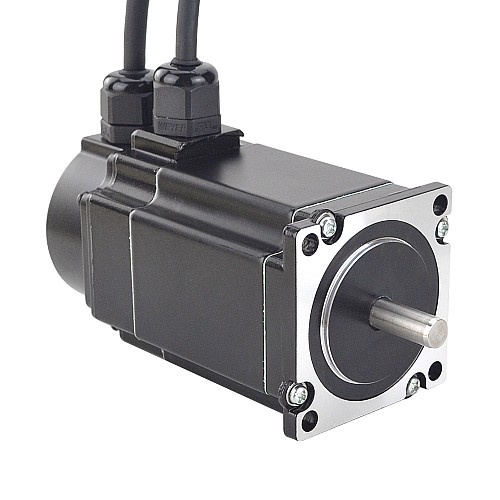

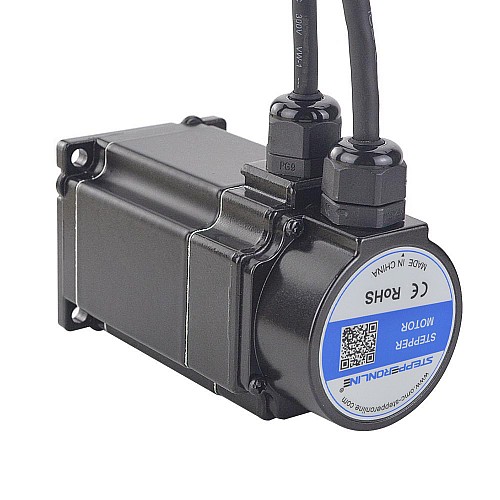

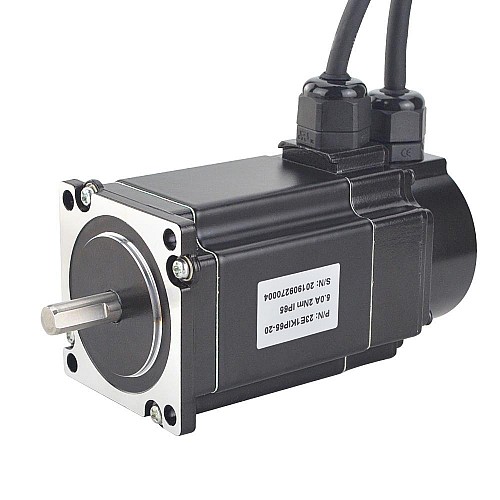

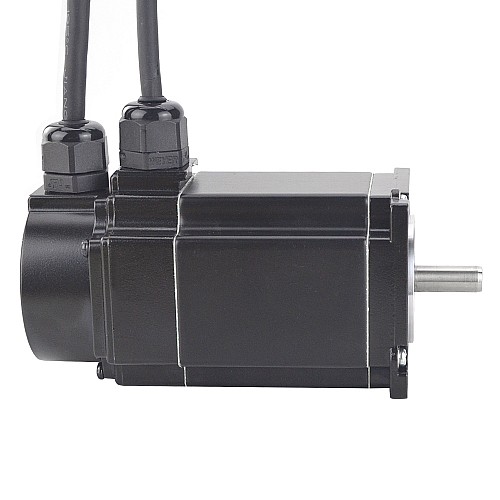

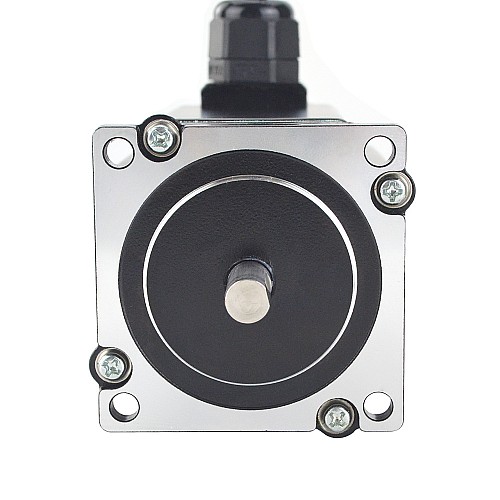

P Series IP65 Waterproof Nema 23 Closed Loop Stepper Motor 2Nm(283.22oz.in) with Encoder 1000PPR(4000CPR)

0 reviews - Write a review

€59.85

5 + €56.89

10 + €54.21

50 + €51.77

100 + €49.55

In Stock: 10000
Model: 23E1KIP65-20
Gross Weight: 1.44kg
Certificated: ISO, CE, UKCA, RoHS

Sold: 504

Click country for real-time stock

Ships from

China

Australia

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.

This P series closed loop nema 23 stepper motor with IP65 waterproof ratings and 2Nm(283.28oz.in), that meaning this IP65 stepper motor can be totally protected against dust, and can be protected against low pressure jets if water from all directions - limited ingress permitted.

Electrical Specification

Manufacturer Part Number: 23E1KIP65-20
Number of phase: 2
Step Angle: 1.8deg
Holding Torque: 2Nm(283.28oz.in)
Rated Current/phase: 5.0A
Phase Resistance: 0.4ohms
Inductance: 1.8mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 57 x 57mm
Body Length: 85.8mm
Shaft Diameter: Φ8mm
Shaft Length: 21mm
D-Cut Shaft Length: 15mm
Lead Length: 1000mm
IP Rating: IP65
Weight: 1.06kg

Encoder Specification

Output Circuit Type: Differential type
Geber-Typ: Inkremental
Encoder Resolution: 1000PPR(4000CPR)
Output Signal Channels: 2channels
Supply Voltage Min: 5V
Supply Voltage Max: 5V
Output High Voltage: ＜4V
Output Low Voltage: ＜1V

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

EGED	+5VCC	EA-	EA+	EB-	EB+
Black	Red	Blue/White	Blue	Orange/White	Orange

Product Type
Product Type	Waterproof Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Encoder Resolution	1000PPR(4000CPR)
Encoder Type	Incremental
Holding Torque(Ncm)	200
Holding Torque(oz.in)	283.22
Inductance(mH)	1.8
Insulation Class	B 130C(266F)
Open-loop/Closed-loop	Closed-loop
Phase Resistance(ohms)	0.4
Rated Current(A)	5.0
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	85.8
Frame Size(mm)	Nema 23 (57 x 57)
Inventory Method	Dedicated Inventory
IP Rating	65
Lead Length(mm)	1000
Output Shaft Type	D
Shaft Diameter(mm)	8
Shaft Length(mm)	21
Single Shaft/Dual Shaft	Single Shaft
Weight(Kg)	1.06
